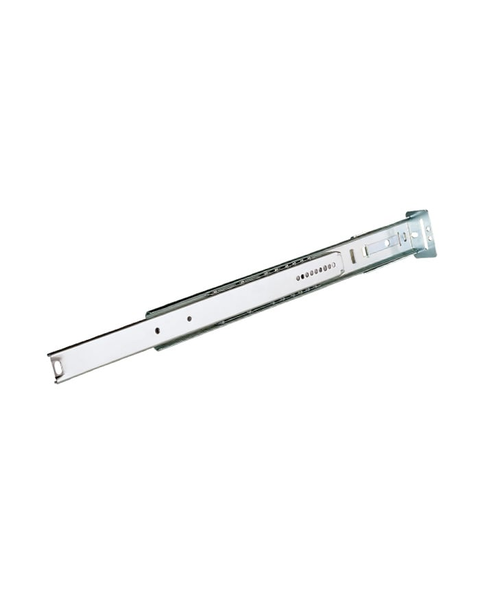

Accuride 1029 Center Bottom Mount Ball Bearing Slide for Drawer Lengths 16-5/8" to 18-1/2" and Cabinet Interior Depths 19" to 20-1/2", 35 Pound Load Rating, 12-1/2" Travel
Rating 4.5 | 408 Reviews | Our Item Number AC-102919
The Accuride Center-Mounted Drawer Slide is ideal for small drawers with side clearance issues, commonly found in furniture, kitchen, and utility cabinets. It features smooth steel ball-bearing movement, a front friction disconnect for easy removal, and a 3/4 extension for convenient access in tight spaces. With a 35 lb load capacity, it's well-suited for light-duty use. Each slide includes mounting hardware and installation instructions. To order, measure from the inside of the drawer front to the back of the drawer box, then choose the matching slide length from the Technical Sheet on the lower left side of this page. Ensure the cabinet’s interior depth fits your selected slide—if it’s too deep, the back can be blocked out to compensate. Two slides can be used to double the load rating
$
10.73
$10.19/ea for 40
$16.70
SAVE 36%
Ends Jun 12
Ends Jun 12
Length:
Need Help? Contact Us Now
Product Info Travel: 12-1/2", Length: 19", Closing Type: Manual, Extension: Partial, Load Rating: 35 lbs, See more product details
or
Packs ™Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Travel : 12-1/2"
- Fits Drawer Lengths : 16-5/8"-18-1/2"
- Length : 19"
- Fits Cabinet Depths : 19"-20-1/2"
-
Manufacturer Info
- Manufacturer Part # : C1029D-119
- Manufacturer Series Name : 1029
- Manufacturer : Accuride
-
Other Important Info
- Closing Type : Manual
- Extension : Partial
- Load Rating : 35 lbs
- Product Finish : Clear Zinc
- Product Type : Drawer Slide: 3/4 Extension
- Includes : (1) Center Mount Slide
- Key Features : Steel Ball Bearings
Friction Disconnect
