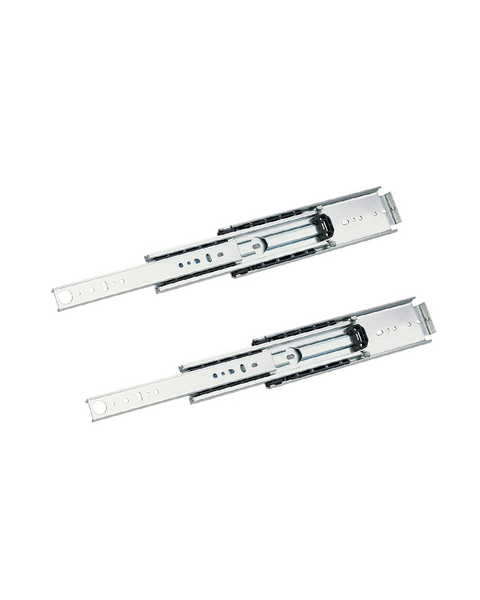

Accuride 9301 Heavy Duty 24" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc
Well suited for large pantry pull outs, vehicular storage and wide, heavy drawers, the 9301 features full extension, a load rating of up to 500lbs depending upon application and a clear zinc finish.
Ends Jun 12
Length:
Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Travel : 24"
- Length : 24 inch
-
Manufacturer Info
- Manufacturer Series Name : 9301
- Manufacturer Part # : C9301-24P
- Manufacturer : Accuride
-
Other Important Info
- Extension / Motion Feature : Full Extension / Standard
- Extension : Full
- Key Features : Silenced Opening & Closing
Optional Platform Bracket Kit Allows For Bottom & Side Mounting
Non Disconnect - Load Rating : 500 lbs
- Product Finish : Clear Zinc
- Product Type : Drawer Slide: Full Extension
- Sold : Pair
- Notes : Load Rating Specifications: Moderate Applications-500 lbs
Frequent Use Applications-400 lbs
Mobile Applications-300 lbs
Flat Mount Applications-150 lbs
Manufacturer Resources
-
Helpful Videos
-
How to Install Side Mount Drawer Slides
Compatible Drawer Boxes (Many Sizes Available)
Other - 9301 Full Extension Heavy-Duty Slide By Accuride
Our customers say Accuride products...
based on 39 ratings
- 5 of 5 As Advertised and qucik shipping December 23rd, 2013
by Barry from Houston, TX(no comment given)
- 3 of 5 Average, Ordinary June 14th, 2011
by Robert from Houston, TXHeavy duty as stated. I have not finished the install but have some doubts as to the load rating for an under mount application, though they just state a weight and not what amount of flex is considered acceptable for that weight. If doing a normal vertical mount they would no doubt support the rated weight. Word of caution they are not a releaseable slide, nor do they say they are. So to remove a drawer you have to unmount the slide.
- 5 of 5 Perfect July 20th, 2010
by Bill from New Haven, CTThese rugged slides takes a beating in our rough riding truck's drawers that hold about 100 lbs. We've had several sets in service for over five years, the only time we've need to replace some are when the guys hit a tree with the drawer open.... Can't help that I suppose.
- 4 of 5 Great slides, wrong screws March 26th, 2025
by Alan from Decatur, GAI purchased the 9301E for a heavy duty application. The web site auto-added "appropriate" pan-head screws for attaching the slides. They were horrifically under-sized for attaching to the drawer, and so small I didn't even attempt to use them to attach to the cabinet. Slides themselves are great. Works awesome for an under-stair large pullout. Make sure to size and get your own fasteners!
This review is about a different size/color of this item. (AC-930136)
- 2 of 3 people found the following review helpful
5 of 5 Beast of Slides July 30th, 2018
by Mike from Grand Blanc, MIWe had ordered drawer based upon heavy duty slides. I did not know I could slide my car on these slides. Holy cow are they heavy duty. I will never worry about this drawers heavy use again.
This review is about a different size/color of this item. (AC-930122)
