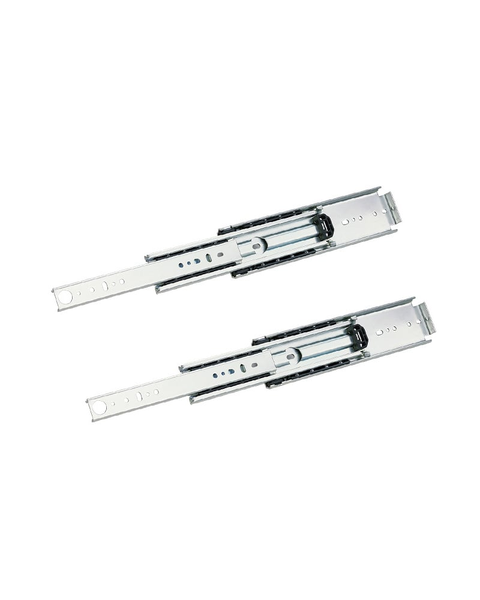

Accuride 9301 Heavy Duty 36" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc
Rating 4.7 | 39 Reviews | Our Item Number AC-930136
Well suited for large pantry pull outs, vehicular storage and wide, heavy drawers, the 9301 features full extension, a load rating of up to 500lbs depending upon application and a clear zinc finish.
$
251.46 Pair
$238.89/ea for 20
$359.23
SAVE 30%
Ends Jun 12
Ends Jun 12
Length:
Need Help? Contact Us Now
Product Info Travel: 36", Length: 36 inch, Extension: Full, Load Rating: 500 lbs, Product Finish: Clear Zinc, See more product details
or
Packs ™Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Travel : 36"
- Length : 36 inch
-
Manufacturer Info
- Manufacturer Series Name : 9301
- Manufacturer Part # : C9301-36P
- Manufacturer : Accuride
-
Other Important Info
- Extension : Full
- Key Features : Silenced Opening & Closing
Optional Platform Bracket Kit Allows For Bottom & Side Mounting
Non Disconnect - Load Rating : 500 lbs
- Product Finish : Clear Zinc
- Product Type : Drawer Slide: Full Extension
- Includes : (1) pair of drawer slides
- Notes : Load Rating Specifications: Moderate Applications-500 lbs
Frequent Use Applications-400 lbs
Mobile Applications-300 lbs
Flat Mount Applications-150 lbs - Closing Type : Manual
- Extension / Motion Feature : Full Extension / Standard
Manufacturer Resources
-
Helpful Videos
-
How to Install Side Mount Drawer Slides
Other - 9301 Full Extension Heavy-Duty Slide By Accuride
-
![Accuride 9301 Heavy Duty 22" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc](https://cdn-media.cabinetparts.com/primary_product.jpg?id=241&p=sq-sm "Accuride 9301 Heavy Duty 22" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc")
Accuride 9301 Heavy Duty 22" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc ![Accuride 9301 Heavy Duty 14" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc](https://cdn-media.cabinetparts.com/primary_product.jpg?id=237&p=sq-sm "Accuride 9301 Heavy Duty 14" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc")
Accuride 9301 Heavy Duty 14" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc ![Accuride 9301 Heavy Duty 60" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc](https://cdn-media.cabinetparts.com/primary_product.jpg?id=250&p=sq-sm "Accuride 9301 Heavy Duty 60" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc")
Accuride 9301 Heavy Duty 60" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc ![Accuride 9301 Heavy Duty 24" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc](https://cdn-media.cabinetparts.com/primary_product.jpg?id=242&p=sq-sm "Accuride 9301 Heavy Duty 24" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc")
Accuride 9301 Heavy Duty 24" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc ![Accuride 9301 Heavy Duty 30" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc](https://cdn-media.cabinetparts.com/primary_product.jpg?id=245&p=sq-sm "Accuride 9301 Heavy Duty 30" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc")
Accuride 9301 Heavy Duty 30" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc ![Accuride 9301 Heavy Duty 20" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc](https://cdn-media.cabinetparts.com/primary_product.jpg?id=240&p=sq-sm "Accuride 9301 Heavy Duty 20" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc")
Accuride 9301 Heavy Duty 20" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc ![Accuride 9301 Heavy Duty 36" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc](https://cdn-media.cabinetparts.com/primary_product.jpg?id=248&p=sq-sm "Accuride 9301 Heavy Duty 36" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc")
Accuride 9301 Heavy Duty 36" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc ![Accuride 9301 Heavy Duty 26" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc](https://cdn-media.cabinetparts.com/primary_product.jpg?id=243&p=sq-sm "Accuride 9301 Heavy Duty 26" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc")
Accuride 9301 Heavy Duty 26" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc ![Accuride 9301 Heavy Duty 32" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc](https://cdn-media.cabinetparts.com/primary_product.jpg?id=246&p=sq-sm "Accuride 9301 Heavy Duty 32" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc")
Accuride 9301 Heavy Duty 32" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc ![Accuride 9301 Heavy Duty 12" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc](https://cdn-media.cabinetparts.com/primary_product.jpg?id=236&p=sq-sm "Accuride 9301 Heavy Duty 12" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc")
Accuride 9301 Heavy Duty 12" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc ![Accuride 9301 Heavy Duty 16" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc](https://cdn-media.cabinetparts.com/primary_product.jpg?id=238&p=sq-sm "Accuride 9301 Heavy Duty 16" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc")
Accuride 9301 Heavy Duty 16" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc ![Accuride 9301 Heavy Duty 18" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc](https://cdn-media.cabinetparts.com/primary_product.jpg?id=239&p=sq-sm "Accuride 9301 Heavy Duty 18" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc")
Accuride 9301 Heavy Duty 18" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc ![Accuride 9301 Heavy Duty 28" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc](https://cdn-media.cabinetparts.com/primary_product.jpg?id=244&p=sq-sm "Accuride 9301 Heavy Duty 28" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc")
Accuride 9301 Heavy Duty 28" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc ![Accuride 9301 Heavy Duty 34" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc](https://cdn-media.cabinetparts.com/primary_product.jpg?id=247&p=sq-sm "Accuride 9301 Heavy Duty 34" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc")
Accuride 9301 Heavy Duty 34" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc ![Accuride 9301 Heavy Duty 48" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc](https://cdn-media.cabinetparts.com/primary_product.jpg?id=249&p=sq-sm "Accuride 9301 Heavy Duty 48" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc")
Accuride 9301 Heavy Duty 48" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc ![Accuride 9301 Bracket Kit 16"](https://cdn-media.cabinetparts.com/primary_product.jpg?id=254&p=sq-sm "Accuride 9301 Bracket Kit 16"")
Accuride 9301 Bracket Kit 16" ![Accuride 9301 Bracket Kit 22"](https://cdn-media.cabinetparts.com/primary_product.jpg?id=255&p=sq-sm "Accuride 9301 Bracket Kit 22"")
Accuride 9301 Bracket Kit 22" ![Accuride 9301 Bracket Kit 12"](https://cdn-media.cabinetparts.com/primary_product.jpg?id=253&p=sq-sm "Accuride 9301 Bracket Kit 12"")
Accuride 9301 Bracket Kit 12" ![Accuride 9301 Bracket Kit 28"](https://cdn-media.cabinetparts.com/primary_product.jpg?id=256&p=sq-sm "Accuride 9301 Bracket Kit 28"")
Accuride 9301 Bracket Kit 28"
