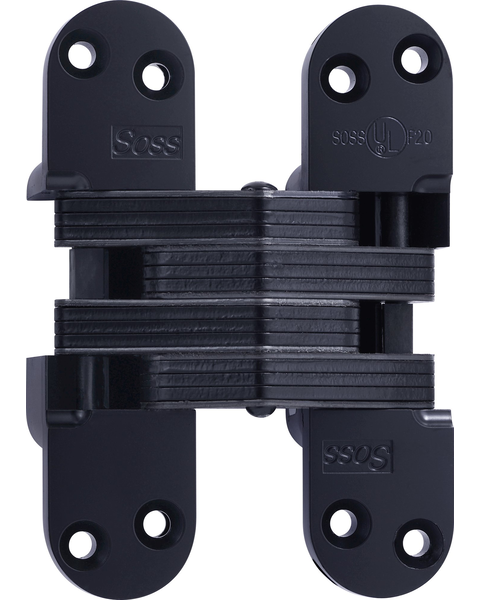

#220 Fire Rated Invisible Hinge Black E Coat
Product Discontinuation AlertThis item has left our catalog. It's either upgraded to a newer model, didn't meet our high customer satisfaction standards, or the manufacturer said goodbye. But don't worry, CabinetParts is always here with top-notch alternatives.All the product info you could ask for...
-
Size Info
- Minimum Door Thickness : 2"
-
Manufacturer Info
- Manufacturer : Soss
- Manufacturer Finish : US19
- Manufacturer Part # : 220FRUS19
-
Other Important Info
- Key Features : Invisible from either side when closed
Moving pivot point remains inside hinge during travel
Deep mortise of hinge assures a strong installation - Material : Zinc Body with Steel Pins and Links
- Product Finish : Black E Coat
- Product Type : Fire Rated Invisible Hinge
- Sold : One Hinge Per Box
- Model # : 220FR
