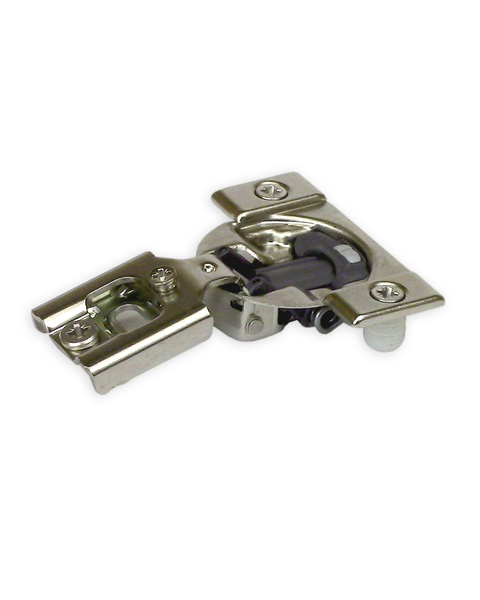

Compact Blumotion 38N 3/8 Inch Overlay Soft Close Face Frame Hinge/Plate, Screw-On and Dowel Installation
Ends Jun 12
Closing Type:
Overlay:
Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Bore Diameter : 35MM
- Cup Depth : 7/16"
- Overlay : 3/8"
-
Manufacturer Info
- Manufacturer : Blum
- Manufacturer Part # : 38N358B.06
-
Other Important Info
- Cabinet Application : Face Frame
- Closing Type : Soft Closing
- Degree of Opening : 105
- Material : Steel
- Mounting Type : Dowel
- Product Finish : Nickel Plated
- Product Type : Hinge & Plate: European Face Frame
- Includes : (1) Hinge & Plate Assembly
- Installation Note : Includes dowels for 3-hole pre-bore; remove for screw-on. #6 × 5/8" flat-head screws required.
Manufacturer Resources
Add-on Accessories
Other - 105 Degree Face Frame European Cabinet Hinges
Our customers say Blum products...
based on 590 ratings
- 5 of 5 Good fit for 20-year old hinges August 25th, 2025
by Christopher from Bloomington, MNI had a hinge fail in a 20-year-old cabinet. I couldn't find 3/8" overlay hinges locally. I found the hinges here, and cabinetparts.com had a handy note that screw locations have changed in the last 20 years, so I'd likely have to drill new screw holes. I only needed to drill new holes for the 2 screws on the door, and it was really, really easy. The screw that fits into the cabinet frame did not require redrilling (which also made it easy to align the door).
- 2 of 2 people found the following review helpful
5 of 5 Perfect August 1st, 2013
by John from Manhattan, KSI found the product to work as advertised. They arrived in a timely manner with no issues.
- 2 of 2 people found the following review helpful
5 of 5 Perfect July 15th, 2013
by BOB from Dublin, OHThe product is only superseded by its soft close cousin! Sleek, easy to install, and works wonderfully.
- 1 of 2 people found the following review helpful
4 of 5 Great hinges March 29th, 2016
by Glenn from Henderson, NVI liked the instructions on the website on how to measure for the proper overlay size. Mine look perfect on the doors. The only snag I had was the hole distance on the new hinges was just slightly narrower than my originals. I was able to get them to work though. I love the soft close feature on my new hinges.
- 1 of 1 people found the following review helpful
5 of 5 Perfect July 9th, 2013
by James from Syracuse, NYGreat product but more importantly great service from Cabinet Parts.com
