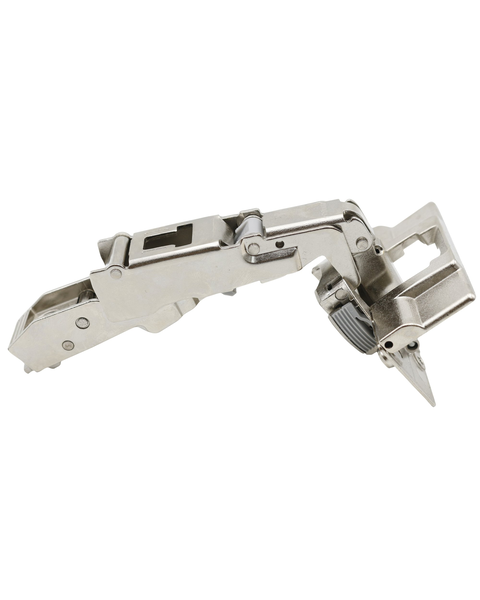

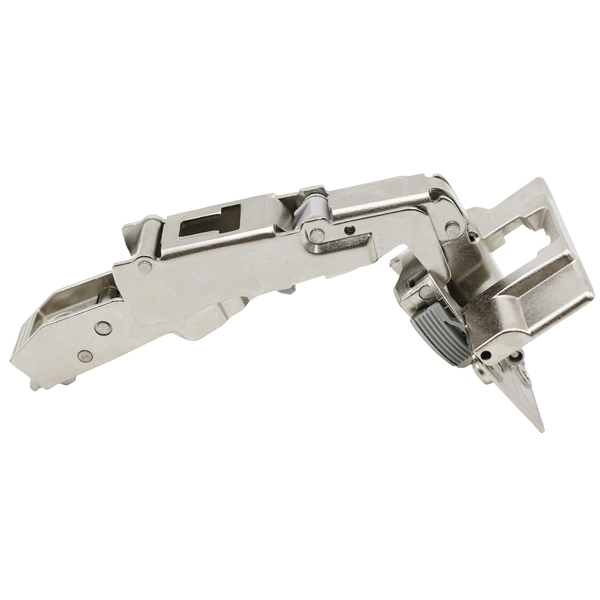

Blum Clip-Top Self-Close Full Overlay 170 Degree Opening Hinge, Inserta Tool-Free Mounting, Nickel

  Rating 4.8 | 2,194 Reviews in the past 24 months | Our Item Number BH71T6540

This clip style European hinge features a 170 degree opening angle, all metal construction with a nickel plated finish and 3 dimensional adjustment.

$
8.42
$5.22/ea for 125
$13.32
SAVE 37%
Ends Jun 12

Degree of Opening / Overlay:

Mounting Type / Closing Type:

Product Info Bore Diameter: 35MM, Cup Depth: 11MM, Material: Steel, Mounting Type: Inserta, Includes: (1) Hinge, See more product details
Helpful Tip TIP: HINGES ARE COMPLICATED: Use our FREE TOOL to buy the correct hinge and mounting plate. Start Now
Order Qty:
  or
PRO Packs ™
Save more! Buy a Pro Pack.



Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Bore Diameter : 35MM
  • Cup Depth : 11MM
  • Installation Note : Tool-free install: Requires pre-bored Hinge cup + two 8 mm holes per manufacturer’s specs.

  • Manufacturer Info

  • Manufacturer Part # : 71T6540B
  • Manufacturer : Blum

  • Other Important Info

  • Material : Steel
  • Mounting Type : Inserta
  • Includes : (1) Hinge
  • Overlay : Full Overlay
  • Degree of Opening : 170
  • Product Type : Long Arm Hinge
  • Cabinet Application : Frameless
  • Degree of Opening / Overlay : 170 Degree / Standard Overlay
  • Mounting Type / Closing Type : Tool Free / Self Closing
  • Product Finish : Nickel Plated
  • Closing Type : Self Closing
