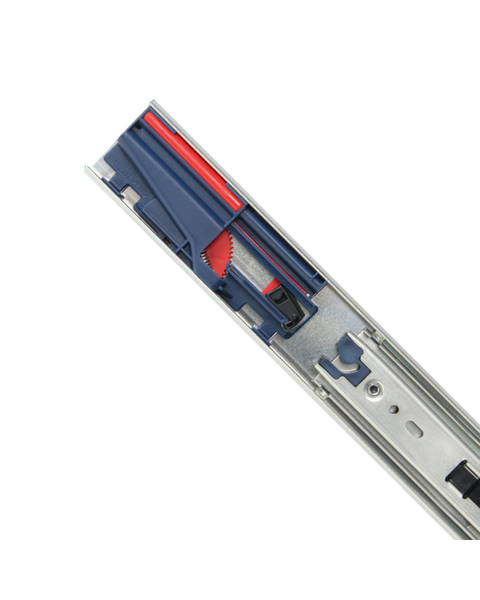

KV 8450FM Full Extension Soft Close Slide 18"
New Force Management from Knape & Vogt is the next generation of soft-close drawer slide technology. Force Management technology establishes a new standard in soft-close functionality by delivering superior performance in dampening action, effortless drawer opening and smooth operation.
Ends Jun 12
Extension / Motion Feature:
Length:
Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Length : 18 inch
- Travel : 18"
-
Manufacturer Info
- Manufacturer Part # : 8450FMB 18
- Manufacturer : Knape and Vogt
- Manufacturer Series Name : 8450FM
-
Other Important Info
- Closing Type : Soft Closing
- Extension / Motion Feature : Full Extension / Soft Closing
- Extension : Full
- Key Features : Non-handed design
Push-in disconnect lever
Ball bearings & polymer stop cushions for quiet slide operation
Soft-close module with Force Management Technology - Load Rating : 100 lbs
- Product Finish : Anochrome
- Product Type : Drawer Slide: Soft-Close
- Includes : (1) pair of drawer slides
Manufacturer Resources
-
Helpful Videos
-
How to Install Side Mount Drawer Slides -
Knape & Vogt 8450 FM Side Mount Drawer Slides
Compatible Drawer Boxes (Many Sizes Available)
Accessories
Other - 8400 Slide Series By Knape & Vogt
Our customers say Knape and Vogt products...
based on 389 ratings
- 4 of 5 KV Soft close guides July 16th, 2025
by Danny from Cherryville, NCThe only reason I didn't give 5 stars is because I am not a big fan of the "Soft Close" concept. Theses are great guides and if your cabinets are built to extremely tight tolerances and the installation is also that precise, they work. but any variation in construction, installation, or movement after the install is complete and the mechanisms do not work properly. the order and delivery process from Cabinet Parts was exelent.
- 14 of 16 people found the following review helpful
4 of 5 All length KV8450FM March 14th, 2015
by James from Brush Prairie, WAThese slides require a precise installation. I ended up using playing cards as shims to finally get these perfectly aligned. It took up to an hour a drawer. I did 14 drawers in my kitchen so it was a full weekend of installation. The end result was fantastic! Very smooth and a lighter pull than other soft close slides I have used. I installed them on drawers from 10" wide to huge 36" drawers holding 50-60 lbs. Even with this weight they glide effortlessly and soft close perfectly. Right now my rating is 4.5. It's a 5 if they still work like this after 5 years.
- 5 of 6 people found the following review helpful
3 of 5 Kitchen upgrade September 1st, 2015
by Darell from Windsor, COThe product did not performers as I had hoped. The force needed to open the drawer and unseat the soft closed feature is higher than expected. Closing is nice. I am undecided as to whether or not I'll proceed to replace more of my drawer glides with the soft close feature.
- 4 of 4 people found the following review helpful
4 of 5 Should include screws for mounting November 16th, 2016
by Charles from Essex Junction, VT(no comment given)
- 1 of 1 people found the following review helpful
4 of 5 These are good slides January 11th, 2021
by Robert from Venice, FLI’ve been using these slides for more than a few years and have never had a problem with them. The soft-close mechanism works well if you don’t bang it around. It’s plastic after all. But once correctly installed, they work great. When I load the box into the slides, I always pull the slides forward instead of pushing the box in. It avoids jamming the mechanism until all the shimming is done. There are cheaper slides, but these are worth the money.
