Drawer Slides (glides) Metal Drawer Systems Merivobox MERIVOBOX Metal Drawer System Components by Blum
Loading from Primary Photo

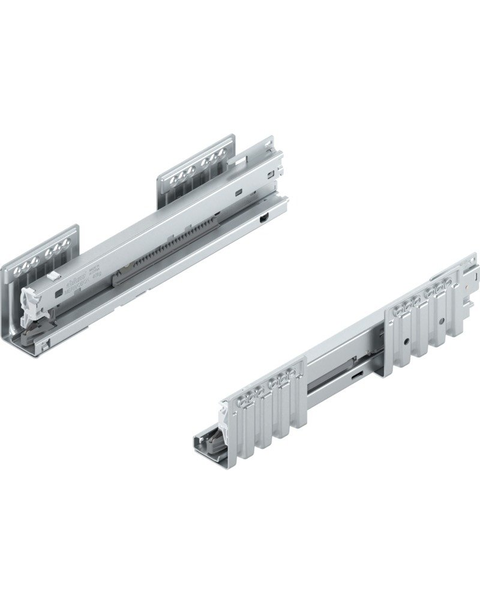

11 Inch Length MERIVOBOX Zinc Cabinet Profile Left/Right Set, 125 lbs Load Rating

Our Item Number BS-450.2701B

Our latest Metal Drawer System, MERIVOBOX, is unique thanks to its slim drawer side design, high stability, and easy assembly. Designed to attach to frameless cabinet interiors, MERIVOBOX slides require "packing out" the cabinet sides in face frame applications. This means the cabinet side must be flush with the inside edge of the face frame, using an appropriately sized wood spacer or alternative spacer for proper installation. However, this is not required when installing roll-outs using our adjustable height pilaster systems, which position the slides to be clear of any obstructions in the opening. Including all required parts except the drawer bottom and back, MERIVO System Kits are available in two stylish colors: Indium Gray and Silk White. No matter which option you choose, assembly is quick and easy thanks to its consistent platform concept. Adjustments are clearly labeled, easily accessible, and always the same, ensuring a seamless setup. Plus, MERIVOBOX's award-winning design guarantees both functionality and elegance in any space.

$
26.84 Set
$38.34
SAVE 30%
Ends Jun 21

Length:

Load Capacity:

Need Help? Contact Us Now
Product Info Length: 11 Inch, Actual Length: 10-5/8 Inch, Load Capacity: 125 lbs, Disconnect Style: Lever, Extension: Full Extension, See more product details
Qty:       Set


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Length : 11 Inch
  • Screw Type : 5mm x 9/16" Flat Head Pozi Zinc Euro Screw
  • Actual Length : 10-5/8 Inch
  • Minimum Cabinet Depth : 10-3/4 Inch

  • Manufacturer Info

  • Manufacturer : Blum
  • Manufacturer Part # : 450.2701B
  • Manufacturer Finish : Zinc-plated

  • Other Important Info

  • Product Type : Drawer Box Cabinet Profile
  • Load Capacity : 125 lbs
  • Includes : Left + Right cabinet profile
  • Key Features : PLATFORM | At the heart of MERIVOBOX is the cabinet profile with the same installation for all applications. No matter which option you choose, the front and front fixing brackets are always the same.
    DESIGN | MERIVOBOX is unique thanks to its distinctive drawer side design and unmistakable look.
    FUNCTIONALITY | The innovative shape of the cabinet profile makes MERIVOBOX incredibly stable - even when fully loaded. The high load capacity coupled with the feather-light glide makes accessing storage goods a breeze!
    ASSEMBLY | No matter which MERIVOBOX option you choose, it can be assembled quickly and easily because of the consistent platform concept. What's more, the adjustments are clearly labeled and easily accessible.Drawer Stop: The integrated drawer stop guarantees that the cabinet profile and drawer are connected securely. Accidental removal is impossible.
    High Front Stability: The front attachment is extremely stable for both drawers and those with high fronts for interior
  • Disconnect Style : Lever
  • Extension : Full Extension
  • Material : Steel
  • Closing Type : BLUMOTION Soft Close
  • Warranty : Limited Lifetime
  • Blum ID Number : 1559470
  • Slide Mount Type : Undermount
  • Slide Type : Concealed
  • BHMA Certification : Grade 1
