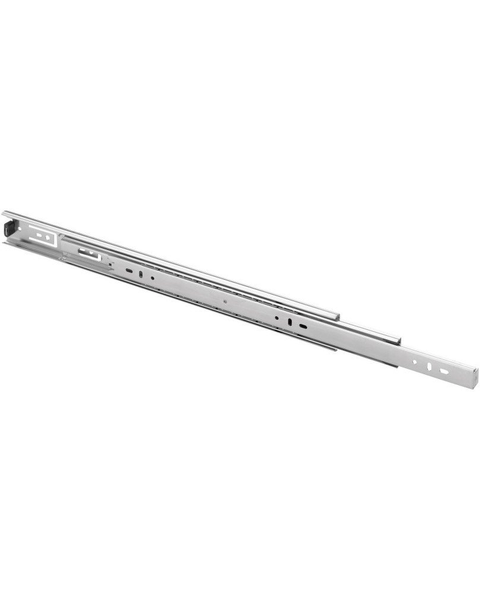

17-3/4 Inch (450 mm) Length FR5045 Full Extension Side Mount Slide, 100 lbs Load Rating
This precision ball bearing slide is suitable for medium duty applications in both commercial and residential furniture.
Ends Jun 21
Length:
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Length : 17-3/4 Inch (450 mm)
- Key Features : Pitch 1-1/4 Inch (32 mm) compatible hole locations
Drawer profile with disconnect release trigger
Symmetrical design
With hold close detent
Ball Bearing Cages - Slide Height : 1-3/4 Inch (45 mm)
- Build-In Width : 1/2 Inch (13 mm)
-
Manufacturer Info
- Manufacturer : Fulterer
- Manufacturer Part # : 5264
- Manufacturer Series Name : FR5045
-
Other Important Info
- Product Type : Drawer Slide: Full Extension
- Product Finish : Zinc
- Extension : Full Extension
- Load Rating : 100 lbs
- Includes : (1) Pair of drawer slides
- Closing Type : Manual
- Mounting Type : Side Mount
- Material : 304 Stainless Steel
Manufacturer Resources
Other - FR5045 Side Mount Medium Duty Full Extension Drawer Slides by Fulterer
