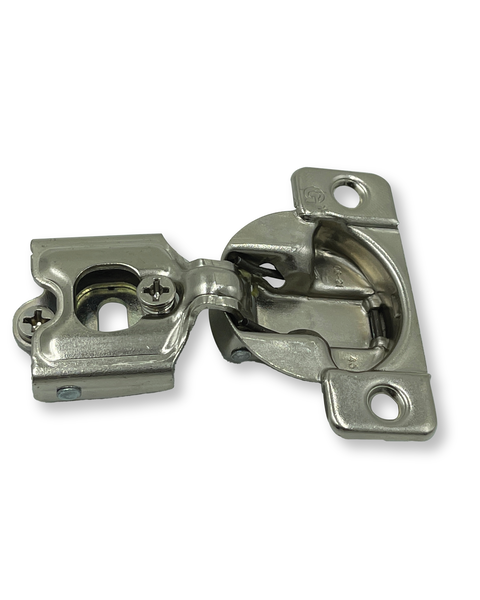

Loading from Primary Photo

TEC 864- 1/4 Inch Overlay/108-Degree Opening Self (Spring) Close Hinge, Replaces Grass 830 Series, Wrap Mounted with 45mm Drilling Pattern

  Rating 4.6 | 2,223 Reviews in the past 24 months | Our Item Number GHA3046

The Grass TEC 864 Series hinge is a top choice for face frame cabinets, providing durability, smooth operation, and easy installation. As a one-piece compact hinge, it simplifies installation by eliminating the need for a separate mounting plate. However, choosing the correct overlay is essential to ensure a proper fit and door alignment. In older two-piece hinge systems like the Grass 830 Series, the overlay was determined by the mounting plate, allowing flexibility with the same hinge body. With the TEC 864, the overlay is built into the hinge, meaning you must select the right one when ordering. To determine your overlay, check your existing hinge’s mounting plate for an engraved fraction (e.g., 1/2", 5/8") or measure manually by closing the door and measuring from the edge of the door to the edge of the cabinet opening. The TEC 864 features a self-closing mechanism, ensuring doors close smoothly and securely. With a 108° opening angle, it provides excellent access while maintaining a clean, modern look. For reliable, hassle-free performance, the Grass TEC 864 is a fantastic choice—just be sure to select the correct overlay for a perfect fit!

$
1.84
$1.78/ea for 300
$2.63
SAVE 30%
Ends Jun 12

Closing Type:

Overlay:

Product Info Bore Diameter: 35MM, Cup Depth: 7/16", Overlay: 1/4", Degree of Opening: 108, Material: Metal, See more product details
Helpful Tip TIP: HINGES ARE COMPLICATED: Use our FREE TOOL to buy the correct hinge and mounting plate. Start Now
Order Qty:
  or
PRO Packs ™
Save more! Buy a Pro Pack.



Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Bore Diameter : 35MM
  • Cup Depth : 7/16"
  • Overlay : 1/4"

  • Manufacturer Info

  • Manufacturer : Grass
  • Manufacturer Part # : 04386-15

  • Other Important Info

  • Degree of Opening : 108
  • Material : Metal
  • Mounting Type : Screw On
  • Notes : Warning: If replacing a TEC 830 hinge with a TEC 864 hinge read "TEC 830 Replacement Info" in the PDF Tech Sheet
  • Product Finish : Nickel Plated
  • Product Type : Hinge & Plate: European Face Frame
  • Includes : (1) Hinge & Plate Assembly
  • Cabinet Application : Face Frame
  • Replacement for : **830-42. The two screw holes that fasten the hinge will not line up with your existing screw holes, and new holes will have to be drilled. The hinge and base plate (one piece now) will work fine.
  • Closing Type : Self Closing

  • Alt Numbers for this Product

  • 03046,
