Drawer Slides (glides) Side Mount Drawer Slides KV 8815 Heavy-Duty Side Mount Drawer Slides
Loading from Primary Photo

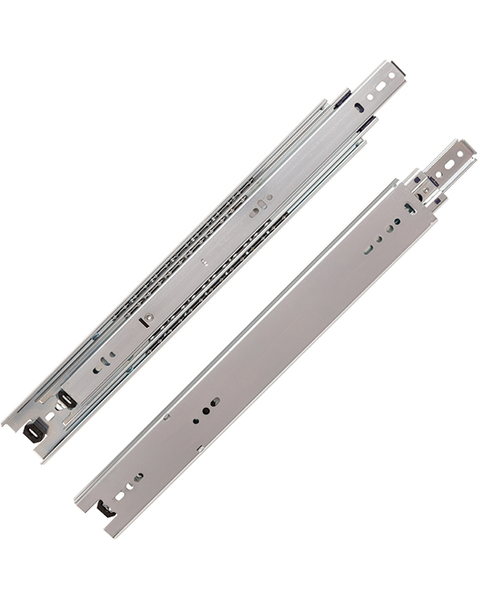

KV 8815 Heavy-Duty 18" Length Side-Mount Full-Extension with 1" Overtravel Drawer Slides, 190 lb. Load Rated, Pair

  Rating 4.5 | 655 Reviews in the past 24 months | Our Item Number KV-881518

The 8815 Heavy-Duty Over Travel Drawer Slide is designed to accommodate wider and heavier drawers for today's challenging applications in the commercial, residential and educational markets.

$
50.46
$48.95/ea for 5 $47.94/ea for 10 $45.41/ea for 20
$84.09
SAVE 40%
Ends Jun 12

Length:

Need Help? Contact Us Now
Product Info Length: 18 Inch, Travel: 19 Inch, Height: 2.09" [53mm], Mount Type: Side Mount, Model: 8815, See more product details
Qty:


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Length : 18 Inch
  • Travel : 19 Inch
  • Key Features : Non-handed design for easy installation
    Ideal for large storage drawer applications
    1" over travel allows for easy access to drawer contents
    Butterfly
    Recommended maximum drawer width 42"
  • Height : 2.09" [53mm]
  • Hole Pattern : 32mm and Traditional
  • Application : Wood residential, commercial and office furniture
    Architectural, laboratory and school casework
    Store fixtures, medical carts
    Residential kitchen cabinetry

  • Manufacturer Info

  • Manufacturer : CP-Exclusive Knape and Vogt
  • Manufacturer Part # : 8815B18

  • Other Important Info

  • Mount Type : Side Mount
  • Action : Telescopic movement on ball-bearings
  • Model : 8815
  • Load Rating : 190 lb.
  • Clearance : 1-9/16" O/A (.75" + .03" - 0" on each side)
  • Finish : Zinc
  • Disconnect : Butterfly Lever Release
  • Slide Configuration : Unhanded
  • Face Frame Mounting : Side-Mount Only- No Rear-Mounting Bracket Available. Requires slide to be blocked out. See Face Frame diagram.
  • Fastener : #8 or #10 x 5/8" Phillips Flathead (fasteners not included)

  • Manufacturer Resources
