Organizers Kitchen Organizers Base Cabinet Organizers 448 Series Pullout Base Organizer by Rev-A-Shelf
Loading from Primary Photo

Rev A Shelf Wood Pull-Out Organizer with Adjustable Shelves, Natural, Min. Cabinet Opening 5-1/2 Inch Width x 22-1/2 Inch Depth x 23-1/8" Height, Maple

  Rating 4.7 | 30 Reviews in the past 24 months | Our Item Number RV448BC5C

If you're tired of cluttered, unorganized and hard to access cabinets, then look no further than Rev-A-Shelf's pullout shelving system. This innovative accessory pulls from the cabinet giving you complete accessibility and visibility. Available in varying sizes, they door mount for one step open and closing

$
234.99 Each
$299.99
SAVE 22%
Ends Jun 12
Free Shipping on Rev-A-Shelf - Orders $99+
Use Code REVASHELF2606 Expires 6/30/2026

Product Dimensions:

Need Help? Contact Us Now
Product Info Width: 5.25 Inch, Depth: 22.5 Inch, Height: 25.5 Inch, Sub-Class: Base Cabinet, Ship Type: Small Parcel, See more product details
Qty:       Each


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Minimum Opening for a Face Frame Cabinet : 5-1/2" Width x 22-1/2" Depth x 25-5/8" Height
  • Minimum Opening for a Frameless Cabinet : 5-5/8" Width x 22-11/16" Depth x 25-9/16" Height
  • Minimum Opening for a Frameless Inset Cabinet : Add 3/4 inch to depth of the "Minimum Opening for a Frameless Cabinet"
  • Keywords : Kitchen, Cabinet Organization, pull out, Full-Height cabinets
  • All Features : Included: (1) Wood organizer, adjustable shelves with Chrome rails and mounting hardware
    Slide Type: 100lb Full-Extension Ball-Bearing Slides
    Wood organizer simply fits into existing full-height cabinet
    Adjustable shelves
    Designed for a full height 9" cabinet with a 5.5" opening
    Door mount brackets: Adjustable door mount brackets are included and required for operation
    Construction: Fully Assembled Maple Wood construction with a clear coat finish for durabiltiy
    Comes fully assembled and ready to install
    Limited Lifetime Warranty

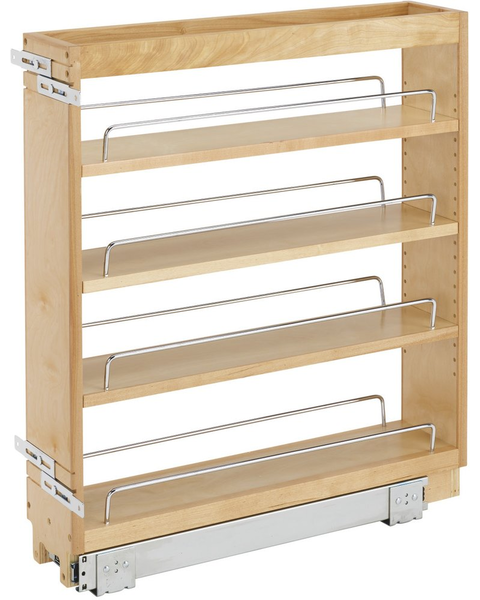

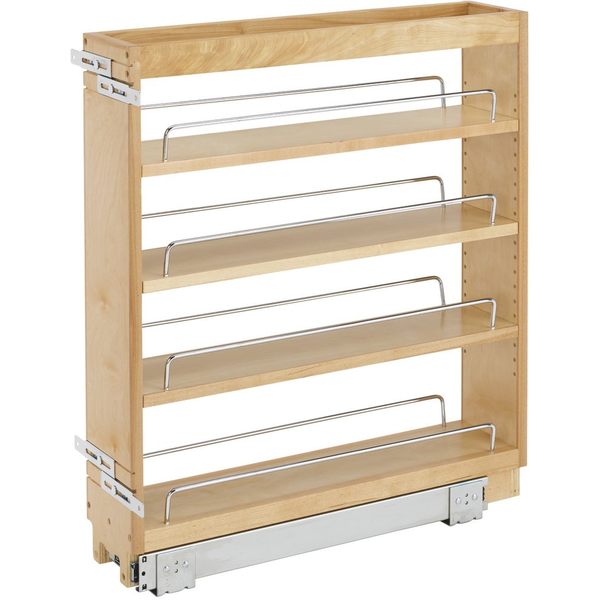

    Image shown is of 8" model. Actual unit is 5".
  • Full Product Dimensions (Millimeters) : 127.0 mm W x 571.5 mm D x 647.7 mm H
  • Width : 5.25 Inch
  • Depth : 22.5 Inch
  • Height : 25.5 Inch
  • Fits or Designed for : Desgined for a full height 9" cabinet with a 5.5" opening
  • Minimum Cabinet Opening Depth : 22.50"
  • Minimum Cabinet Opening Height : 25.62"
  • Minimum Cabinet Opening Width : 5.12"

  • Manufacturer Info

  • Manufacturer Part # : 448-BC-5C
  • Manufacturer : Rev-A-Shelf

  • Other Important Info

  • Category Groupings : Base Organizer w/Ball-Bearing Slides
  • Sub-Class : Base Cabinet
  • Ship Type : Small Parcel
  • Actual Product Width (Inches) : 5
  • Actual Product Depth (Inches) : 22.5
  • Actual Product Height (Inches) : 25.5
  • Actual Product Weight (lbs) : 21.95
  • Minimum Cabinet Frameless Opening (Inches) : 5.5
  • Weight : 21.938 lbs
  • Actual Product Width (Millimeters) : 127.0
  • Full Product Dimensions : 5"W x 22.5"D x 25.5"H
  • Actual Product Depth (Millimeters) : 571.5
  • Product Series : BO5 - Wood 448
  • Actual Product Height (Millimeters) : 647.7
  • Color : Natural
  • Country of Origin : China
  • Actual Product Weight (Kilograms) : 9.8775
  • Contains Wood : Yes
  • Minimum Cabinet Faceframe Opening (Millimeters) : 139.7
  • Material Breakdown : Maple Wood; Steel
  • Minimum Cabinet Frameless Opening (Millimeter) : 139.7
  • Material Breakdown % : 85;15
  • Primary Color : Natural
  • Product Type : Base Cabinet Organizers
  • Material : Wood
  • Wood Type : Maple
  • Soft Close : No
  • Includes : (1) Wood organizer, (3) adjustable shelves with Chrome rails and mounting hardware
  • Gas Assist : No
  • Slide Type : 100lb Full-Extension Ball-Bearing slide system (US Patent # 7,306,301)
  • Material Bre : Maple Wood; Steel
  • Feature 3 : Adjustable shelves
  • Size : 5" W x 22.47" D x 25.48" - Face Frame
  • Included optional Door Mount / Door Extender : Includes patented door mount brackets for up to 5" of adjustability (US Patent #: 7,204,569)
  • Construction / Finish : Attractive wood construction with durable clear finish and chrome rails accents
  • Installation : Comes fully assembled and ready to install
  • Warranty : Limited Lifetime Warranty
  • Image Disclaimer : Image shown is of 8" model. Actual unit is 5".
  • Number of Tiers : 4
  • Slides : Yes
  • Product Finish : Maple
  • Weight Capacity : 150 lbs
  • Extension : Full Extension
  • Sold : Each
  • Mounting Type : Bottom Mount
  • Notes : *Warning: For Face Frame cabinetry only
    *Door NOT included
