Sliding Door Hardware Barn Door Hardware Contemporary Concealed Barn Door Hardware Set by Richelieu
Loading from Primary Photo

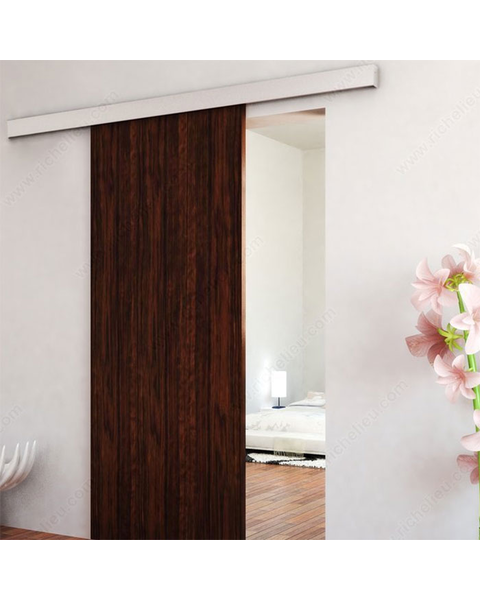

Contemporary Concealed Barn Door Hardware Set

  Rating 4.0 | 3 Reviews in the past 24 months | Our Item Number RIC-2460402ALPVC

2460402ALPVC

$
396.89 Set
$440.98
SAVE 10%
Ends Jun 21
Product Info Rail Length: 78-3/4", Door Width: 24-36", Operation: Single Door, Door Type: Wood, MDF, # of Doors: 1, See more product details
Qty:       Set


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Door Thickness : 1-3/8" - 1-3/4"
  • Rail Length : 78-3/4"
  • Door Width : 24-36"
  • Notes : Door handles and door not included. It is recommended to use a solid or glass door in order to obtain the minimum weight to reduce noise resonance. Use a wider door opening to avoid angled views and preserve privacy. It is recommended to use a door 34" wide for an opening of 30". The bottom of the door requires a groove for the concealed guiding system.

  • Manufacturer Info

  • Manufacturer : Richelieu
  • Manufacturer Part # : 2460402ALPVC

  • Other Important Info

  • Product Type : Barn Door Hardware Set
  • Operation : Single Door
  • Door Type : Wood, MDF
  • Load Capacity (Per Door) : 33-176 lbs
  • Door Installation : Wall Front
  • # of Doors : 1
  • Roller Type : Ball Bearing
  • Product Finish : Satin Aluminum
  • Rail Material : Anodized Aluminum
  • Includes : (1) mounting rail, (1) running rail, (1) finishing band, (2) end caps, (2) carriages, 4 bearings with mounting plates, (2) soft-close mechanisms (1) guide and mounting screws
  • Prop 65 warning : this product contains chemicals known to the state of California to cause cancer, birth defects, and other reproductive harm

  • Manufacturer Resources

Back to Top
back to top

Our customers say Richelieu products...

  4.0 out of 5
based on 3 ratings

"These reviews are from our customers who have purchased Richelieu products."
  • 5 of 5 people found the following review helpful
    3 of 5 High quality everywhere except two important pieces of plastic April 26th, 2021
    by Daniel from Seattle, WA

    (First, I want to say Cabinet Parts gets 5 stars from me for customer service. It took a little while because they could not replace just the broken parts, but they then instead shipped me, free, an entire new unit.) This sliding door set is well made and easy to install. Seems well thought out, too, although they should post more detailed drawings to let you understand how it installs (e.g., if you want to use the soft close, you need something like 8 to 10 inches on each side of the doorway.) Also, there seems to be no need for it to hold the door so far from the wall. I just installed without the plastic spacers and get a nice, tight fit. The reason for the big drop in rating is that the two soft close units are, like all the rest of the bits, made of sturdy metal ... except for the little carriage bit that slides back and forth and must catch and release. Those are made of what seems very brittle plastic. Both of them broke on me as I just moved them back and forth with my hand (not even a heavy door hitting it.) When Cabinet Parts sent the replacement, I found one of them *already* cracked. I found reviews on other sites saying the same thing. I ended up installing my door without even using the damn soft close units and even though the door is heavy and slides quite well, it's not a big problem, so I am still happy enough, except that I expect a decent part of the price of this is for those soft close units.

    This review is about similar Richelieu Sliding Door Hardware. (RIC-2460502MDFPVC)

    Was this review helpful? yes no

  • 4 of 7 people found the following review helpful
    4 of 5 Great product, company service for damaged parts not very good May 14th, 2019
    by Jon from Madison, WI

    The product itself is great. There was a damaged part and I am not very happy with the lack of urgency on their end to get the part to the client. Customer service needs work!!

    This review is about similar Richelieu Sliding Door Hardware. (RIC-2460502MDFPVC)

    Was this review helpful? yes no

  • 3 of 3 people found the following review helpful
    5 of 5 Concealed Barn Door Hardware July 18th, 2019
    by Deborah from Colorado Springs, Co

    Do like the appearance of my new barn door with concealed hardware! There was a plastic part on the slider which broke but the carpenter was able to make it work without the part. Great price, fast delivery, carpenter had no problems with installation. Thanks!

    This review is about similar Richelieu Sliding Door Hardware. (RIC-2460502MDFPVC)

    Was this review helpful? yes no
