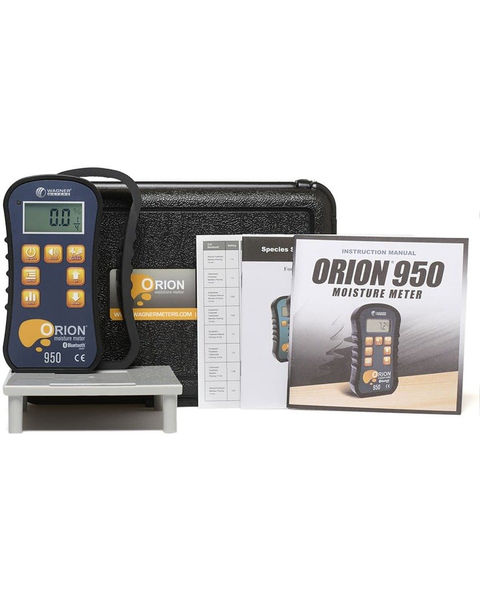

Orion 950 Smart Pinless Backlit Moisture Meter Kit with NIST Traceable On-Demand Calibrator-2 Year Certification Period

Our Item Number WAG-890-00950-002

The Orion 950 Smart Pinless Wood Moisture Meter Kit features the Orion 950, carrying the Wagner tradition of superior accuracy forward with all of the features of the 910, 920, 930, and 940 meters and adding more. A flexible rubber boot makes the 950 durable enough to withstand your toughest jobs. The Orion 950 joins the rest of the Orion line of meters in being the first in the industry to provide true in-the-field calibration capability with the included On-Demand Calibrator. Calibrate your Orion 950 at your location in about 30 seconds whenever you want. The Orion line of wood moisture meters continues Wagner's 50-plus year tradition of providing accurate, dependable non-damaging pinless moisture measurement technology, measuring IN the wood not just ON the wood, and backed by Wagner's industry-leading 7-year warranty.

$
763.33 Set
$848.14
SAVE 10%
Ends Jun 12

Calibrator:

Product Info Thickness: 1 Inch (25 mm), Width: 3 Inch (76 mm), Battery Capacity: 9V, Warranty: 7 Years, See more product details
Qty:       Set


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Thickness : 1 Inch (25 mm)
  • Scanning Area : 2 Inch (50 mm) x 2-1/2 Inch (63 mm)
  • Non-Damaging Pinless Sensor : Every Orion meter features electromagnetic wave technologyâ?¦a non-damaging way to quickly and accurately measure the moisture content of wood or other materials. Compared against pin meters, the pinless sensor technology of the Orion line of meters does not damage the wood and also eliminates the frustrations and costs of broken pins, common with pin-type meters.
  • Programmable Alarm : The Orion includes a user-programmable, audible alarm for high moisture content levels.
  • Length : 5-3/4 Inch (146 mm)
  • Width : 3 Inch (76 mm)

  • Manufacturer Info

  • Manufacturer : Wagner Meters
  • Manufacturer Part # : 890-00950-002

  • Other Important Info

  • Weight (with boot) : 7.2 oz (204 g)
  • Auto Power Shut-Down : 60 Seconds
  • Measurement Ranges : MC for wood:4.0% to 32.0% (range will vary slightly depending on species setting). Relative Measurement Scale: 0-100
  • Data Storage Capacity : 100 saved readings
  • Specific Gravity Range for Wood Species : 0.20-1.0 SG
  • Storage Temperature and Humidity : +50 Degrees F to +90 Degrees F (+10 Degrees C to +32 Degrees C), Maximum relative humidity of 95%, Non-condensing
  • Operating Temperature Range : +32 Degrees F to +110 Degrees F (+0 Degrees C to +43 Degrees C)
  • Ambient Relative Humidity : 0% to 100%
  • Equilibrium Moisture Content Measurement Range : 0-40/7%
  • Dew Point : -85 Degrees F to +110 Degrees F (-65 Degrees C to +43 Degrees C)
  • Absolute Humidity : 0 to 431.1 lb/ft (0 to 61.6 kg/m)
  • Product Type : Wood Moisture Meter
  • Calibrator : NIST Traceable Calibrator
  • Virtually Unaffected by Temperature : Every Orion pinless meter is virtually unaffected by the temperature of the wood or the environment. Unlike pin meters, Orion's sensing technology does not need correction or adjustment to account for the temperature of the wood.
  • True In-The-Field Calibration : There is no need to return your Orion to the factory for calibration. Every Orion meter comes with an individually paired On-Demand Calibrator allowing you to easily calibrate your meter anytime*, ensuring that you will always be able to obtain accurate moisture measurements. A NIST-traceable version, with a certificate of calibration, can also be purchased.
  • Relative Moisture Measurement Mode : A relative moisture measurement mode allows for taking relative moisture measurements in non-wood based materials and engineered wood flooring. This means you can use an Orion moisture meter to obtain relative moisture conditions on a number of non-wood building materials and flooring products.
  • Press to Hold Readings : On every Orion moisture meter, if you press down once on the ON/HOLD button it will hold the moisture reading you took. This is quite useful if you're measuring in a hard to reach area.
  • Bluetooth Features : Receive and record data, set specifications for separate jobs, and much more through Bluetooth Technology
  • Bluetooth Instructions : 1. Ensure that Bluetooth has been enabled on your smart device. The Orion 950 will automatically pair with your smart device when the power is on and the two devicesare within Bluetooth range.2.Ensure that the DATA mode on the 950 is ON. Consult your Orion 950 manual for instructions.3. Open the FloorSmart or Woodshop MC app and enter a new job description or choose a current job to edit.4. Press the "Record" tab at the bottom left to access the "Record Readings" screen.5. Press the "Record" button at the top right to enable the app to record data from the Orion 950.6. Scan the target area with the Orion 950 and press the "ON/HOLD" button when you want to send a reading to the FloorSmart or Woodshop MC app.
  • Temperature and Humidity Sensor : Get the ambient temperature and relative humidity (RH) measurements of any room the Orion 950 is in with its built-in sensor. It's like having an ambient conditions data logger and a moisture meter all in one!
  • Dew Point Calculations : The Orion 950 will calculate the dew point of the environment for you. Utilizing the built-in temperature and humidity sensor, the Orion 950 will calculate and display the current dew point whenever and wherever you need.
  • Equilibrium Moisture Content : The Orion 950 calculates the current equilibrium moisture content (EMC), which is the point when wood no longer gains or loses moisture. This meter also measures the moisture content (MC) of your wood at the time the reading was taken. EMC readings vary based on relative humidity and temperature, and for best results, you want the EMC and MC to be as similar as possible. When you have these readings, they help you know when your floor or wood projects are ready for installation or fabrication.
  • Grains Per Pound/Kilogram Mode : Grains per pound/kilogram (GPP/GPK) is a more precise measurement to know the exact weight of water vapor that is in the surrounding air. The Orion 950 will calculate and display instantly the grains per pound/kilogram, also known as the specific humidity of the air, compared to relative humidity.
  • Battery Capacity : 9V
  • Warranty : 7 Years

  • Manufacturer Resources
