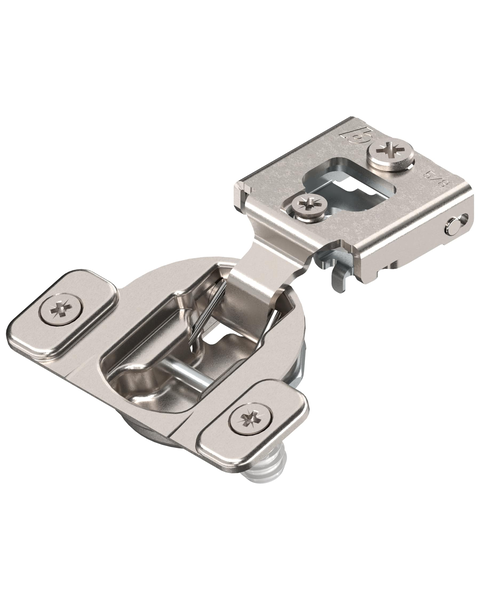

Compact 38N Hinge and Mounting Plate 5/8 inch Overlay with Dowel

  Rating 4.7 | 1,688 Reviews in the past 24 months | Our Item Number BH38N3580.10

The ideal solution for face frame construction, COMPACT hinges are specifically designed to offer makers of face frame cabinetry the advantage of concealed hinges.

$
2.20 Each
$1.41/ea for 250
$3.79
SAVE 42%
Ends Jun 12
Product Info Bore Diameter: 35MM, Cup Depth: 7/16", Overlay: 5/8", Degree of Opening: 105, Material: Steel, See more product details
Helpful Tip TIP: HINGES ARE COMPLICATED: Use our FREE TOOL to buy the correct hinge and mounting plate. Start Now
Qty:       Each
  or
PRO Packs ™
Save more! Buy a Pro Pack.



Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Bore Diameter : 35MM
  • Cup Depth : 7/16"
  • Overlay : 5/8"

  • Manufacturer Info

  • Manufacturer Part # : 38N358C.10
  • Manufacturer : Blum

  • Other Important Info

  • Cabinet Application : Face Frame
  • Degree of Opening : 105
  • Material : Steel
  • Mounting Type : Dowel
  • Includes : (1) Hinge & Mounitng Plate Assembly
  • Product Finish : Nickel Plated
  • Product Type : Hinge & Plate: European Face Frame
  • Closing Type : Self Closing
  • Installation Note : Includes dowels for 3-hole pre-bore; remove for screw-on. #6 × 5/8" flat-head screws required.
