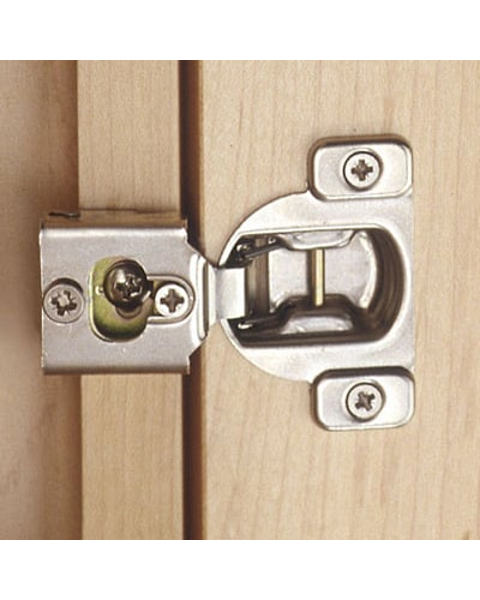

Compact 38N Hinge and Mounting Plate 3/4 inch Overlay with Dowel
The ideal solution for face frame construction, COMPACT hinges are specifically designed to offer makers of face frame cabinetry the advantage of concealed hinges.
Ends Jun 12
Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Bore Diameter : 35MM
- Cup Depth : 7/16"
- Overlay : 3/4"
-
Manufacturer Info
- Manufacturer Part # : 38N358C.12
- Manufacturer : Blum
-
Other Important Info
- Cabinet Application : Face Frame
- Degree of Opening : 105
- Material : Steel
- Mounting Type : Dowel
- Includes : (1) Hinge & Mounitng Plate Assembly
- Product Finish : Nickel Plated
- Product Type : Hinge & Plate: European Face Frame
- Closing Type : Self Closing
- Installation Note : Includes dowels for 3-hole pre-bore; remove for screw-on. #6 × 5/8" flat-head screws required.
Manufacturer Resources
Installation Hardware
Add-on Accessories
Compatible Soft Close Device Adapter
Other - 105 Degree Face Frame European Cabinet Hinges
Our customers say Blum products...
based on 1688 ratings
- 0 of 1 people found the following review helpful
2 of 5 wrong size ordered w/ no recourse for an exchange for the correct size hinge June 14th, 2024
by Bill from McCall, IDI seems like a purposed fine crafted hing, however, our old hinge was stained over at the factory who manufactured this credenza and it said 1/2". I contacted cabinet parts.com about this and all, the lady who answered in customer service would say is, it would cost more for me to ship it back than it's worth doing anything to solve this dilemma. I actually could've bought these exact hinges from amazon with a return policy worth being an amazon.com consumer. Oh well, "Live and learn."
- 5 of 5 Blum face frame hinges November 6th, 2013
by Dan from Kingston, WAI've used this product for many projects and will continue to do so. They are very well made, easy to install and adjustable.
- 5 of 5 Perfect September 18th, 2012
by Vince from Kalispell, MTThey were just what we were looking for and the price was right
- 5 of 5 Perfect October 28th, 2011
by Koby from Phoenix, AZGood quality hinges for face frame installs. The three-way adjustment on these is a must for the DIYer and makes hanging the doors 10 times easier.
- 4 of 5 That's good stuff October 25th, 2011
by Alvin from Manalapan, NJgood and i have installed on all the sagging doors without issues. It came with screws and anchors I could not use the anchors because they were to close to the prior drilled large diameter hole. Workaround is not to use them but screw them into the door.
