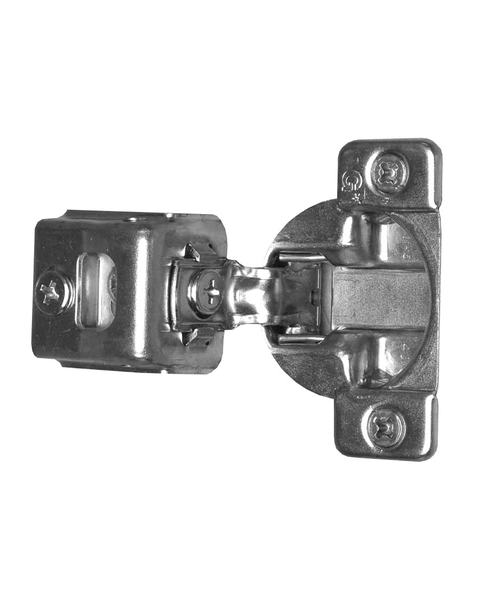

Loading from Primary Photo

TEC 864- 1-1/4 Inch Overlay/108-Degree Opening Self (Spring) Close Hinge, Replaces Grass 830 Series, Wrap Mounted with 45mm Drilling Pattern

  Rating 4.6 | 2,223 Reviews in the past 24 months | Our Item Number GHA3050

The Grass TEC 864 Series hinge is a top choice for face frame cabinets, providing durability, smooth operation, and easy installation. As a one-piece compact hinge, it simplifies installation by eliminating the need for a separate mounting plate. However, choosing the correct overlay is essential to ensure a proper fit and door alignment. In older two-piece hinge systems like the Grass 830 Series, the overlay was determined by the mounting plate, allowing flexibility with the same hinge body. With the TEC 864, the overlay is built into the hinge, meaning you must select the right one when ordering. To determine your overlay, check your existing hinge’s mounting plate for an engraved fraction (e.g., 1/2", 5/8") or measure manually by closing the door and measuring from the edge of the door to the edge of the cabinet opening. The TEC 864 features a self-closing mechanism, ensuring doors close smoothly and securely. With a 108° opening angle, it provides excellent access while maintaining a clean, modern look. For reliable, hassle-free performance, the Grass TEC 864 is a fantastic choice—just be sure to select the correct overlay for a perfect fit!

$
1.84
$1.78/ea for 300
$2.63
SAVE 30%
Ends Jun 12

Closing Type:

Overlay:

Product Info Overlay: 1-1/4", Cup Depth: 7/16", Bore Diameter: 35MM, Hinge Screw Spacing: 45mm, Degree of Opening: 108, See more product details
Helpful Tip TIP: HINGES ARE COMPLICATED: Use our FREE TOOL to buy the correct hinge and mounting plate. Start Now
Order Qty:
  or
PRO Packs ™
Save more! Buy a Pro Pack.



Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Overlay : 1-1/4"
  • Cup Depth : 7/16"
  • Bore Diameter : 35MM
  • Hinge Screw Spacing : 45mm

  • Manufacturer Info

  • Manufacturer : Grass
  • Manufacturer Part # : 04466-15

  • Other Important Info

  • Degree of Opening : 108
  • Mounting Type : Screw On
  • Includes : (1) Hinge & Plate Assembly
  • Product Type : Hinge & Plate: European Face Frame
  • Material : Metal
  • Product Finish : Nickel Plated
  • Notes : Warning: If replacing a TEC 830 hinge with a TEC 864 hinge read "TEC 830 Replacement Info" in the PDF Tech Sheet
  • Cabinet Application : Face Frame
  • Replacement for : **830-33. The two screw holes that fasten the hinge will not line up with your existing screw holes, and new holes will have to be drilled. The hinge and base plate (one piece now) will work fine.
  • Closing Type : Self Closing

  • Alt Numbers for this Product

  • 03050,

  • Manufacturer Resources

Back to Top
back to top

Our customers say Grass products...

  4.6 out of 5
based on 2223 ratings

"These reviews are from our customers who have purchased Grass products."
  • 4 of 5 kitchen shelf door October 9th, 2025
    by Paul from Steamboat Springs, CO

    The original Grass hinge is cast metal, more solid and decorative than this replacement which is of lighter weight press formed metal. The TEC 864 fit well and operates satisfactorily.

    Was this review helpful? yes no

  • 2 of 2 people found the following review helpful
    5 of 5 Excellent replacement bit September 24th, 2024
    by Eric from Glendale, RI

    This bit seems to be the best replacement bit for the Grass 830-33, which is obsolete. It does require some drilling, as do all other potential replacements that I could find for the Grass 830-33. CabinetParts.com website was very helpful in the ordering process, and the hinges arrived promptly. 5 Stars, all the way.

    Was this review helpful? yes no

  • 1 of 1 people found the following review helpful
    5 of 5 Cabinet Hinge Replacement February 19th, 2025
    by Michael from Broad Brook, CT

    Finally found the correct hinge on this web site. If you're looking to replace a Glass 860-02 this is the correct hinge.

    Was this review helpful? yes no

  • 5 of 5 Perfect Replacement January 22nd, 2025
    by Bruce from Cary, NC

    Replacement for old hinge, site recommended these as the replacement and they were a perfect fit.

    Was this review helpful? yes no

  • 5 of 5 people found the following review helpful
    5 of 5 Tec 864 Side Mount Hinge September 2nd, 2014
    by John from Deerfield, IL

    The Tec 864 Hinge was a perfect replacement for a Grass hinge that was about 25 years old. I had one broken hinge but went ahead and replaced all 4 on the pantry door. The door has never worked better. The new hinge fit right into the old hinge opening and easily aligned with the existing holes in the cabinet frame. I used a slightly larger screw to afix the hinge to the frame to ensure it held well.

    Was this review helpful? yes no
