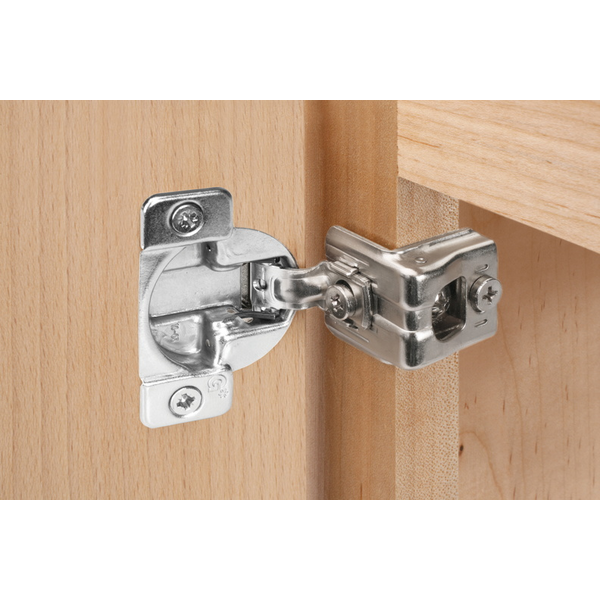

TEC 864- 1-1/2 Inch Overlay/108-Degree Opening Self (Spring) Close Hinge, Replaces Grass 830 Series, Wrap Mounted with 45mm Drilling Pattern

  Rating 4.6 | 2,227 Reviews in the past 24 months | Our Item Number GHA3100

The Grass TEC 864 Series hinge is a top choice for face frame cabinets, providing durability, smooth operation, and easy installation. As a one-piece compact hinge, it simplifies installation by eliminating the need for a separate mounting plate. However, choosing the correct overlay is essential to ensure a proper fit and door alignment. In older two-piece hinge systems like the Grass 830 Series, the overlay was determined by the mounting plate, allowing flexibility with the same hinge body. With the TEC 864, the overlay is built into the hinge, meaning you must select the right one when ordering. To determine your overlay, check your existing hinge’s mounting plate for an engraved fraction (e.g., 1/2", 5/8") or measure manually by closing the door and measuring from the edge of the door to the edge of the cabinet opening. The TEC 864 features a self-closing mechanism, ensuring doors close smoothly and securely. With a 108° opening angle, it provides excellent access while maintaining a clean, modern look. For reliable, hassle-free performance, the Grass TEC 864 is a fantastic choice—just be sure to select the correct overlay for a perfect fit!

$
1.90
$1.84/ea for 300
$2.71
SAVE 30%
Ends Nov 12

Closing Type:

Overlay:

Product Info Cup Depth: 7/16", Screw Hole Spacing: 45mm, Overlay: 1-1/2", Bore Diameter: 35MM, Degree of Opening: 108, See more product details
Helpful Tip TIP: HINGES ARE COMPLICATED: Use our FREE TOOL to buy the correct hinge and mounting plate. Start Now
Order Qty:
  or
PRO Packs ™
Save more! Buy a Pro Pack.



Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Cup Depth : 7/16"
  • Screw Hole Spacing : 45mm
  • Overlay : 1-1/2"
  • Bore Diameter : 35MM

  • Manufacturer Info

  • Manufacturer : Grass
  • Manufacturer Part # : 04469-15

  • Other Important Info

  • Degree of Opening : 108
  • Material : Metal
  • Product Finish : Nickel Plated
  • Product Type : Hinge & Plate: European Face Frame
  • Mounting Type : Screw On
  • Includes : (1) Hinge & Plate Assembly
  • Notes : Warning: If replacing a TEC 830 hinge with a TEC 864 hinge read "TEC 830 Replacement Info" in the PDF Tech Sheet
  • Cabinet Application : Face Frame
  • Replacement for : **830-14, 830-16, 830-40, 830-50. The two screw holes that fasten the hinge will not line up with your existing screw holes, and new holes will have to be drilled. The hinge and base plate (one piece now) will work fine.
  • Closing Type : Self Closing

  • Alt Numbers for this Product

  • 03100,

  • Manufacturer Resources

Back to Top
back to top

Our customers say Grass products...

  4.6 out of 5
based on 2227 ratings

"These reviews are from our customers who have purchased Grass products."
  • 5 of 5 Close Replace October 3rd, 2025
    by Kurt from Patterson, NY

    Very close replacement for the Grass 830 series hinge. Not a direct drop in, but very close.

    Was this review helpful? yes no

  • 4 of 5 Just what I needed August 7th, 2025
    by Beverly from Houston, TX

    It was impossible to find this style hinge, even in the metropolis of Houston. Cabinet Parts had just what I needed and provided quick service. I did have to drill new holes in the door but then the hinge fit just right.

    Was this review helpful? yes no

  • 5 of 5 Failing hinges February 20th, 2025
    by Robert from Pittsburgh, PA

    My kitchen cabinets are 40+ years old. When the door hinges recently broke or failed to close completely I started searching for replacement hinges. I found replacement hinges at CabinetParts and they work perfectly.

    Was this review helpful? yes no

  • 5 of 5 PERFECT FIT December 24th, 2024
    by Frank from San Diego, CA

    The kitchen cabinets we have are about forty years old and a couple of the self closing door hinges were getting weak. It was great that I was able to find new replacement hinges at Cabinet Parts that matched perfectly. The doors stay closed and look like new. Thanks. Frank

    Was this review helpful? yes no

  • 3 of 3 people found the following review helpful
    5 of 5 Absolutely fantastic service! October 18th, 2018
    by William from Sutherland, NE

    Doug was the most helpful guy I could have asked for! I sent about six inquiries his way to make sure I was going to be happy with what I was going to order. He was patient and ALWAYS got back to me quickly with the answer. Our hinges arrived and work great! Thanks Doug and Cabinet Parts!

    Was this review helpful? yes no
