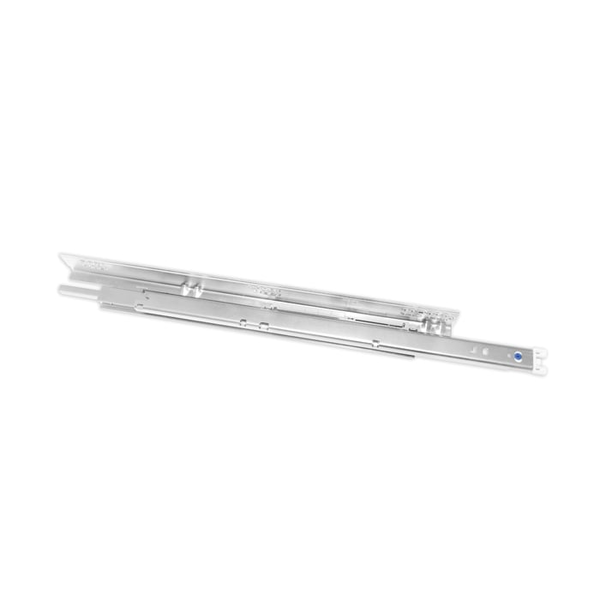

18 Inch Accuride 3135 Eclipse Soft Close Slides with Locking Devices

  Rating 4.5 | 48 Reviews in the past 24 months | Our Item Number AC-313518EC

The new and enhanced 3135EC Eclipse high-performance slide is ideal for commercial or high-end residential drawers calling for a concealed undermount solution

$
63.27 Pair
$60.11/ea for 12
$96.67
SAVE 35%
Ends Jul 18

Length:

Need Help? Contact Us Now
Product Info Length: 18", Travel: 17.50", Extension: Full, Load Rating: 100 lbs, Closing Type: Soft Closing, See more product details
Qty:       Pair
  or
PRO Packs ™
Save more! Buy a Pro Pack.



Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Length : 18"
  • Travel : 17.50"
  • Drawer Material Thickness : 5/8"

  • Manufacturer Info

  • Manufacturer Series Name : 3135EC
  • Manufacturer Part # : C3135D-18EC
  • Manufacturer : Accuride

  • Other Important Info

  • Extension : Full
  • Key Features : Front Lever Disconnect
    Integrated Easy-Close Mechanism
    Precision Adjustment Features
  • Load Rating : 100 lbs
  • Product Finish : Bright Electro-Zinc
  • Product Type : Drawer Slide: Soft-Close
  • Includes : (1) pair of drawer slides with disconnect levers
  • Closing Type : Soft Closing

  • Manufacturer Resources

Back to Top
back to top

Our customers say Accuride products...

  4.5 out of 5
based on 48 ratings

"These reviews are from our customers who have purchased Accuride products."
  • 3 of 3 people found the following review helpful
    4 of 5 That's good stuff May 8th, 2013
    by Jame from Sterling, VA

    the product works well for the load carrying capacity the retractable feature is nice, the way the drawer pins lock to the back of the slides is kind of difficult if you need to install this on a drawer that would be removed and reinstalled frequently you may want to go with a different slide.

    Was this review helpful? yes no

  • 1 of 1 people found the following review helpful
    4 of 5 That's good stuff September 22nd, 2010
    by Dave from Tualatin, OR

    I recently built my own kitchen cabinets and installed the Eclipse EC throughout my kitchen. The quality is good. Installation is a little time consuming since the left and right track must be nearly perfectly aligned to work correctly. Once I learned this, the installation is going much easier since I now have a "system" for installation.

    Was this review helpful? yes no

  • 0 of 1 people found the following review helpful
    5 of 5 Perfect February 27th, 2010
    by Paul from Orinda, CA

    I've worked with this slide for a while and love it. I haven't actually received any from your company yet but I'm hoping....

    Was this review helpful? yes no

  • 5 of 5 Helpful Customer Service February 28th, 2025
    by William from Westfield, NJ

    I was have trouble finding the right replacement slides for my pantry drawer (soft close, under mount) - originals were installed 20 years ago. With CabinetParts.com I was able to exchange emails and upload images of the old slides and show exact measurements and ask/answer questions. Very helpful and resulted in their recommendation of the exact slide I needed. I had to make a tiny increase in the size of the notches at the rear of the drawer, but quite simple. Thanks!

    This review is about a different size/color of this item. (AC-313522EC)

    Was this review helpful? yes no

  • 3 of 3 people found the following review helpful
    5 of 5 Perfect February 17th, 2016
    by James from Austin, TX

    I installed 12 pairs of undermount Accuride 3132 Easy Close slides. I used a Kreg drawer installation jig to keep the slides square to the cabinet front edge and screwed them to the sides before cabinet assembly. The front end was fastened to a 32mm system hole with a Euro pozidrive 5mm screw, then I used the self-tapping screws that came with the slides to fasten the middle and back end of the slides. It was easy and I didn't have to reach inside the cabinets to work since they weren't assembled yet. My only complaint is that I ordered 20-inch slides from Cabinet Parts online and only later discovered that Accuride makes 21-inch ones in the same model, so I have wasted an inch of potential drawer depth. The website leads you to believe that they come only in even lengths.

    This review is about a different size/color of this item. (AC-313520EC)

    Was this review helpful? yes no

See More Reviews
