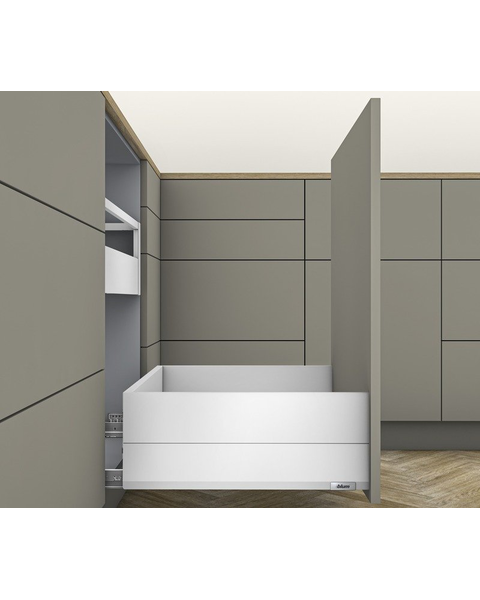

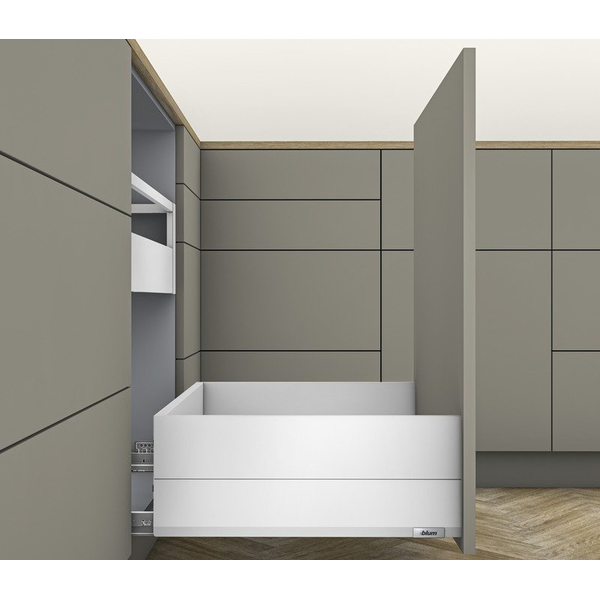

MERIVOBOX INSERTA 20 Inch Length Soft-Close Metal Drawer System Kit, with BOXCAP Side Panels, E Height, 7-9/16 Inch (192mm), 125 lbs Load Capacity, Silk White Matte

Our Item Number BS-450E500WH.BC

Our latest Metal Drawer System, MERIVOBOX, is unique thanks to its slim drawer side design, high stability, and easy assembly. Designed to attach to frameless cabinet interiors, MERIVOBOX slides require "packing out" the cabinet sides in face frame applications. This means the cabinet side must be flush with the inside edge of the face frame, using an appropriately sized wood spacer or alternative spacer for proper installation. However, this is not required when installing roll-outs using our adjustable height pilaster systems, which position the slides to be clear of any obstructions in the opening. Including all required parts except the drawer bottom and back, MERIVO System Kits are available in two stylish colors: Indium Gray and Silk White. No matter which option you choose, assembly is quick and easy thanks to its consistent platform concept. Adjustments are clearly labeled, easily accessible, and always the same, ensuring a seamless setup. Plus, MERIVOBOX's award-winning design guarantees both functionality and elegance in any space.

$
76.05 Set
$108.64
SAVE 30%
Ends Jul 18

Finish: Silk White Matte
Indium Gray Matte Silk White Matte

Drawer Length:

Load Capacity:

Need Help? Contact Us Now
Product Info Drawer Length: 20 Inch, Drawer Height: 7-9/16 Inch, Load Capacity: 125 lbs, Product Finish: White, Disconnect Style: Lever, See more product details
Qty:       Set


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart

All the product info you could ask for...

  • Size Info

  • Drawer Length : 20 Inch
  • Drawer Height : 7-9/16 Inch
  • Series : E Height with BOXCAP
  • Required 16mm (5/8 Inch) Bottom, Not Included : Width: The interior cabinet width minus 51 mm (2"). Depth: The profile (slide) length minus 26 mm (1").
  • Required 16mm (5/8 Inch) Back, Not Included : Width: The interior cabinet width minus 51 mm (2"). Height: 184 mm (7 1/4").
  • Actual Slide (Profile) Length : 19-11/16 Inch
  • Minimum Frameless Cabinet Interior Depth : 19-13/16 Inch
  • Manufacturer Info

  • Manufacturer : Blum
  • Manufacturer Part # : 450E500WH.BC
  • Manufacturer Finish : Silk White Matte
  • Other Important Info

  • Product Type : Metal Drawer Box Kit
  • Load Capacity : 125 lbs
  • Product Finish : White
  • Front Fixing Bracket Type : INSERTA
  • Includes : (1pair) Cabinet profile, (1pair) Drawer profile, (1pair) Rear fixing bracket, (2) Front fixing bracket, (1pair) BOXCAP set, (2) Top front fixing bracket
  • Screw Type : 5/8" X #7 flat head
  • Key Features : PLATFORM | At the heart of MERIVOBOX is the cabinet profile with the same installation for all applications. No matter which option you choose, the front and front fixing brackets are always the same.
    DESIGN | MERIVOBOX is unique thanks to its distinctive drawer side design and unmistakable look.
    FUNCTIONALITY | The innovative shape of the cabinet profile makes MERIVOBOX incredibly stable - even when fully loaded. The high load capacity coupled with the feather-light glide makes accessing storage goods a breeze!
    ASSEMBLY | No matter which MERIVOBOX option you choose, it can be assembled quickly and easily because of the consistent platform concept. What's more, the adjustments are clearly labeled and easily accessible.Smooth running action
    Compatible with SERVO-DRIVEIncludes BOXCAP: Simply clip on BOXCAP and you have a metal drawer with closed sides.
  • Disconnect Style : Lever
  • Extension : Full Extension
  • Material : Steel
  • Closing Type : BLUMOTION Soft Close
  • Warranty : Limited Lifetime
  • Slide Mount Type : Undermount
  • Slide Type : Concealed
  • BHMA Certification : Grade 1
  • Drawer Front Adjustment : Three-dimensional
  • Component Part Numbers : 450.5001B,470M5002S-WH,ZB4E000S-WH,ZF4.10I2,ZL4.500S.E-WH,ZF4.50I2
