Aventos HK-S Tip-On Lift Mechanism with Cover, Power Factor 40 to 85, for Cabinet Height 7-3/8 to 24 Inch, Cabinet Width 25 to 72 Inch, Requires Clip Inline Mounting Plate and Tip-On Device, Silk Whit
Rating 4.4 | 147 Reviews | Our Item Number BA20K2C00TN6-SW
The AVENTOS HK-S lift system from Blum is a compact, side-mounted solution ideal for small upper cabinets, including shallow or over-appliance applications. It offers smooth, adjustable motion with soft-close functionality, making it perfect for modern, handle-less designs. For face frame cabinets, the BA20K6A01 Face Frame Mounting Bracket Set is required. This set includes both left and right brackets and ensures proper alignment with a minimum 7/16" (10.5 mm) face frame offset. Alternatively, the cabinet sides can be blocked out flush with the face frame edge. To determine the correct power factor and ensure you select all necessary components, click the “Need help buying the perfect lift system?” link below to use our automated parts builder
$
51.80 Set
$64.75
SAVE 20%
Ends Sep 01
Ends Sep 01
Finish:
Power Factor:
Product Info Blum ID Number: 04035852, Series: AVENTOS HK-S, Power Factor: 40 - 85, Product Finish: White, Material: Steel, See more product details
Need help buying the perfect lift system? Visit our Aventos Lift System - Automated Parts Builder for a complete and easy guide to creating your own Lift System.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info

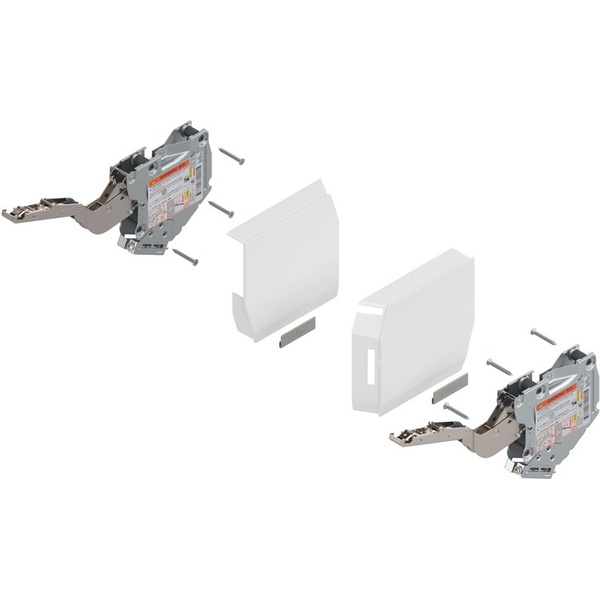

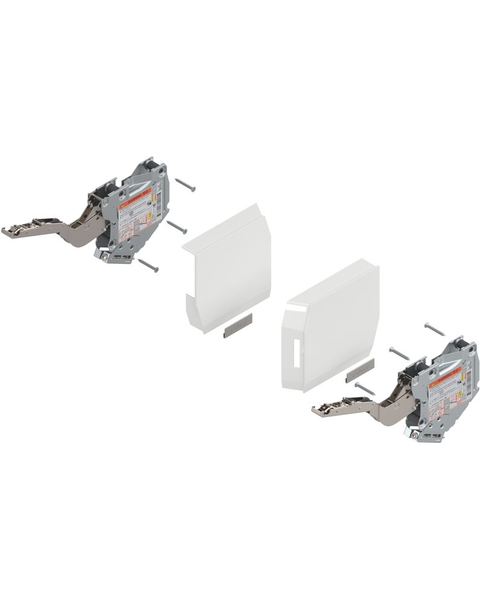

- Includes : (2) Lift mechanism, (1) Cover plate set L/R, (2) Non-handed cover caps, (6) #7 x 35 (1-3/8 Inch) wood screw
- For Cabinet Heights : 7-3/8 Inch - 24 Inch
- For Cabinet Widths : 25 - 72 Inch
- Minimm Internal Cabinet Depth : 6-7/16 Inch (163 mm)
-
Manufacturer Info
- Manufacturer : Blum
- Manufacturer Part # : 20K2C00TN6
- Manufacturer Finish : Silk White
-
Other Important Info
- Product Type : HK-S Lift Mechanism Set
- Blum ID Number : 04035852
- Series : AVENTOS HK-S
- Power Factor : 40 - 85
- For Use With : Lift mechanism for AVENTOS HK-S TIP-ON
- Product Finish : White
- Material : Steel
- Mounting Type : Screw-On
- Degree of Opening : 107 Degrees
- Hand : Non-Handed
Manufacturer Resources
-
Helpful Videos
-
HK-S Assembly -
AVENTOS Tension Adjustment
Required For Installation
-
0MM Clip Inline Mounting Plate
Tip On, Touch-Latch, Set For Standard Free-Swinging Doors without Soft or Self-Closing Hinges
Tip On In-Line Adapter Plate
Tip On, Touch Latch, Set For Large Free-Swinging Doors without Soft or Self Closing Hinges
Inline TIP-ON Adapter for Large Door (works with 956A1006), Platinum Gray Optional Accessories
Aventos Mounting Plate with Bracket Set
Aventos HK-S 100 Degree Angle Restriction Clip
Aventos HK-S 75 Degree Angle Restriction Clip
Aventos HK-S Face Frame Mounting Bracket Set Other - AVENTOS HK-S Stay Lift System & Tip On For Aventos HK-S By Blum
-
