Hinges Lid and Flap Stays AVENTOS HK-S Stay Lift System & Tip On For Aventos HK-S By Blum
Loading from Primary Photo

Aventos HK-S Lift Mechanism with Cover Set, Power Factor 86 to 177, for Cabinet Height 7-3/8 to 24 Inch, Cabinet Width 25 to 72 Inch, Requires Clip Inline Door Mounting Plate, Dark Gray

  Rating 4.5 | 35 Reviews in the past 24 months | Our Item Number BA20K2E00.N6-TG

The AVENTOS HK-S lift system from Blum is a compact, side-mounted solution ideal for small upper cabinets, including shallow or over-appliance applications. It offers smooth, adjustable motion with soft-close functionality, making it perfect for modern, handle-less designs. For face frame cabinets, the BA20K6A01 Face Frame Mounting Bracket Set is required. This set includes both left and right brackets and ensures proper alignment with a minimum 7/16" (10.5 mm) face frame offset. Alternatively, the cabinet sides can be blocked out flush with the face frame edge. To determine the correct power factor and ensure you select all necessary components, click the “Need help buying the perfect lift system?” link below to use our automated parts builder

$
60.01 Set
$85.73
SAVE 30%
Ends Jun 21

Finish:

Power Factor:

Product Info Blum ID Number: 03930757, Series: AVENTOS HK-S, Power Factor: 86 - 177, Product Finish: Gray, Material: Steel, See more product details

Need help buying the perfect lift system? Visit our Aventos Lift System - Automated Parts Builder for a complete and easy guide to creating your own Lift System.
Qty:       Set


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

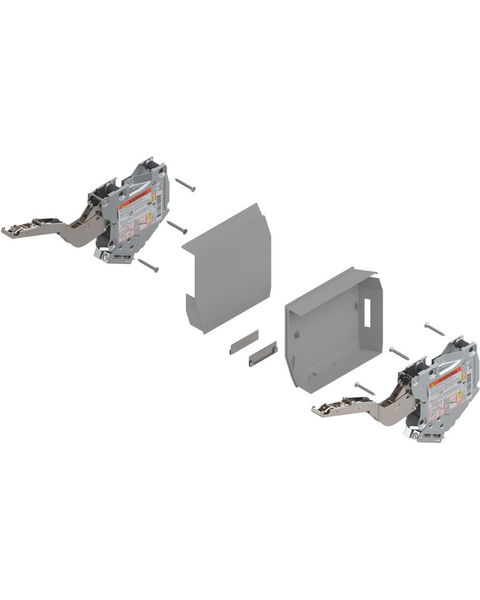

  • Includes : (2) Lift mechanism, (1) Cover plate set L/R, (2) Non-handed cover caps, (6) #7 x 35 (1-3/8 Inch) wood screw
  • For Cabinet Heights : 7-3/8 Inch - 24 Inch
  • For Cabinet Widths : 25 - 72 Inch
  • Minimm Internal Cabinet Depth : 6-7/16 Inch (163 mm)

  • Manufacturer Info

  • Manufacturer : Blum
  • Manufacturer Part # : 20K2E00.N6
  • Manufacturer Finish : Dark Gray

  • Other Important Info

  • Product Type : HK-S Lift Mechanism Set
  • Blum ID Number : 03930757
  • Series : AVENTOS HK-S
  • Power Factor : 86 - 177
  • For Use With : Lift mechanism for AVENTOS HK-S
  • Product Finish : Gray
  • Material : Steel
  • Mounting Type : Screw-On
  • Degree of Opening : 107 Degrees
  • Hand : Non-Handed

  • Manufacturer Resources

Back to Top
back to top

Our customers say Blum products...

  4.5 out of 5
based on 35 ratings

"These reviews are from our customers who have purchased Blum products."
  • 4 of 5 Well thought-out & useful system August 15th, 2025
    by Dirk from Parker, CO

    A really good product overall. Smooth operation, doesn't take up much room & functions splendidly once you get it on. Problems I encountered were getting the units positioned correctly (where they needed to be for correct function & proper fit)- I wish there were a template included that would ensure correct positioning. Upon one of my installation attempts, the door attachments were not positioned exactly correctly. In trying to get them to fit, I ended up getting the attachment lever arm out of alignment >:( The last thing that I like/dislike is the angle restriction clips- great idea & easy to install! I wish they had more angle options (they just have 2- 75 & 100 degrees). Overall pleased with the product. I'm sure once you install a couple of these systems, problems like mine go away.

    This review is about a different size/color of this item. (BA20K2E00.NA)

    Was this review helpful? yes no

  • 164 of 196 people found the following review helpful
    4 of 5 That's good stuff January 4th, 2011
    by MARK from Thompson, OH

    Great product.....a word of caution, when doing the door weight factor sizing. When the program spits out a number based on your inputs, and you happen to be very close to the top end force factor rating for a particular hinge, move up to the next size hinge. There is no fudge factor involved in the ratings and the ratings speak the truth.....and nothing more!

    This review is about a different size/color of this item. (BA20K2C00.NA)

    Was this review helpful? yes no

  • 157 of 189 people found the following review helpful
    3 of 5 does not come with a plate February 2nd, 2017
    by evan from Berkeley, CA

    I do need to figure out the mounting plate which seems specific to the mechanism. Looking for a plate now. So haven't used it yet looks like it works well though

    This review is about a different size/color of this item. (BA20K2C00.NA)

    Was this review helpful? yes no

  • 4 of 5 people found the following review helpful
    5 of 5 vertical lift hinge September 9th, 2015
    by James from Crescent Valley, NV

    Wonderful works ver nice. It would be very nice if the instructions were in english and metric

    This review is about a different size/color of this item. (BA20K2B00.NA)

    Was this review helpful? yes no

  • 3 of 5 people found the following review helpful
    5 of 5 Hks door lift August 1st, 2017
    by David from winter springs, FL

    Great product works great used for cabinet door over frig got the face frame brakets made the install easy the instuctions were not very good but is was not hard to figure out also had great shipping and price thanks

    This review is about a different size/color of this item. (BA20K2C00.NA)

    Was this review helpful? yes no
