Aventos HF Bi Fold Door Lift Hinge and Mounting Plate Set for Face Frame Construction for Screw-On or Dowel Mounting, 1-1/4" Door Top Overlay

  Rating 4.4 | 147 Reviews in the past 24 months | Our Item Number BA78Z5530TA9

AVENTOS HF is a bi-fold lift system designed for tall wall cabinets with two-panel fronts. The doors fold upward in two parts, providing smooth, unobstructed access to the cabinet interior. It's ideal for larger cabinets and can remain open during use. Like all Blum AVENTOS systems, HF offers reliable, soft-close operation with adjustable motion. These units mount to the cabinet sides. For face frame construction, use the BA22L8101 Face Frame Mounting Bracket, or block out the cabinet sides flush with the face frame edge.

$
28.70 Set
$35.87
SAVE 20%
Ends Aug 05
Product Info Side Adjustment: +/- 2 mm, Close Type: Free swinging, Included: Nickel-Plated, Opening Angle: 134 Degrees, Hinge Cup Material: Zinc, See more product details

Need help buying the perfect lift system? Visit our Aventos Lift System - Automated Parts Builder for a complete and easy guide to creating your own Lift System.
Qty:       Set


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

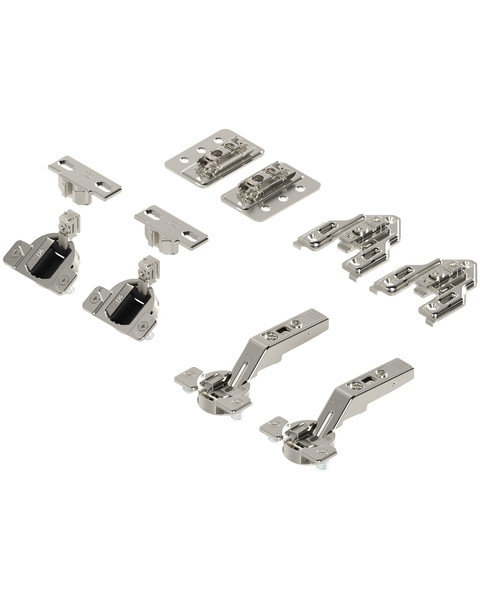

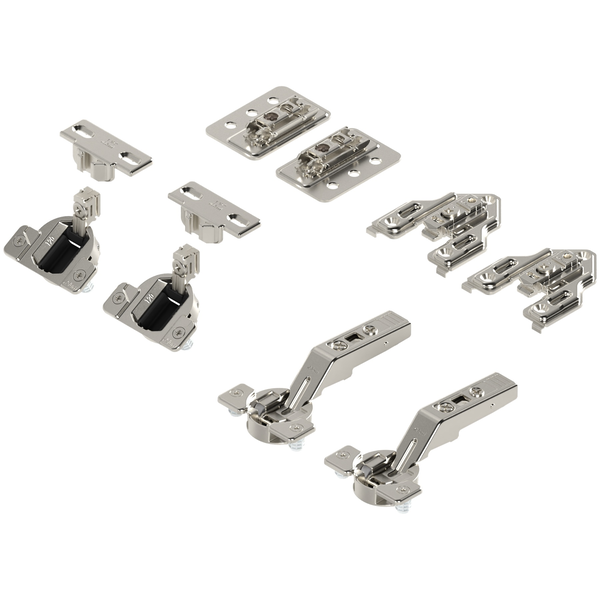

  • Included : 2- Mounting plates for large overlay doors, 2- Compact 33 free-swinging face-frame hinges with 1-1/4" overlay mounting plates, 2- clip-top free-swinging full-overlay hinges with 0mm mounting plates
  • Side Adjustment : +/- 2 mm

  • Manufacturer Info

  • Manufacturer : Blum
  • Manufacturer Part # : 78Z5530T A9

  • Other Important Info

  • Close Type : Free swinging
  • Included : Nickel-Plated
  • Opening Angle : 134 Degrees
  • Hinge Cup Material : Zinc
  • Hinge Cup Assembly : Press-in
  • Product Type : Lift System Hinge
  • Installation Note : Includes dowels for 3-hole pre-bore; remove for screw-on. #6 × 5/8" flat-head screws required.

  • Manufacturer Resources
