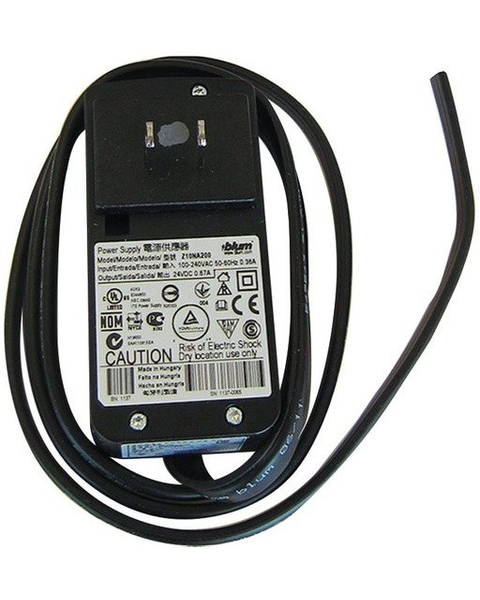

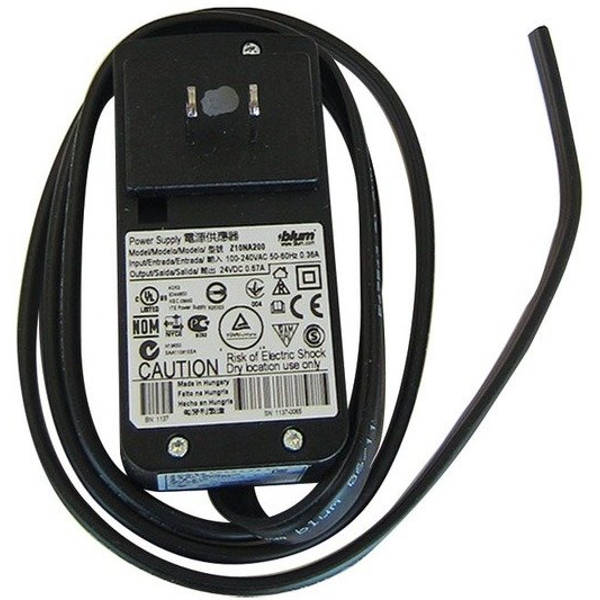

12W Plug-In Transformer with 44 Inch Cord For Single Aventos SERVO-DRIVE

  Rating 4.4 | 147 Reviews in the past 24 months | Our Item Number BAZ10NA30UGF

AVENTOS lift systems were created to make moving through the home a seamless experience, providing unlimited functionality with a modern style. Whether you choose fold up, up and over, lift up, or pivot up â?? you can retrieve items from your cabinets quickly and easily as the door moves up and out of the way. No matter the application, we have an AVENTOS solution.

$
111.42 Each
$139.27
SAVE 20%
Ends Sep 01
Product Info Length: 44 Inch power cord, Blum ID Number: 03978393, Series: AVENTOS, Voltage: 100-240 V, See more product details

Need help buying the perfect lift system? Visit our Aventos Lift System - Automated Parts Builder for a complete and easy guide to creating your own Lift System.
Qty:       Each


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Length : 44 Inch power cord

  • Manufacturer Info

  • Manufacturer : Blum
  • Manufacturer Part # : Z10NA30UGF

  • Other Important Info

  • Product Type : Servo-Drive Transformer
  • Blum ID Number : 03978393
  • Key Features : Supplies power to a single drive unit
    Extendable up to 6 feet using cable connectors (sold seperately)
    Output specifications: Output voltage: 24 VDC; Output power: 24 W continuous/12 W continuous; Minimum load: None, Over Voltage protection: At 33 VDC; Overload protection: 10.5 A hiccup trip and restart mode with auto recovery; Short circuit protection: Continuous
    Environmental information: Operating temperature: 32 Degrees Fâ??104 Degrees F; Storage temperature: -4 Degrees F to 185 Degrees F; Protection: IP40
    Input specifications: Input voltage: 100-240 VAC; Input frequency: 50-60 Hz; Input current: 0.6 A; Inrush current: 100 A maximum at 240 VAC; Protection class: Class I; Earth leakage current: 3.5 mA maximum
    General specifications: Efficiency: â?¥ 87%; Switching frequency: 65 kHz typical; No load loss (standby): < 0.075 W; Energy Star: Level VI
  • Series : AVENTOS
  • Certifications : EN/IEC: 60950, 60335-1; UL: 60950-1
  • Voltage : 100-240 V
