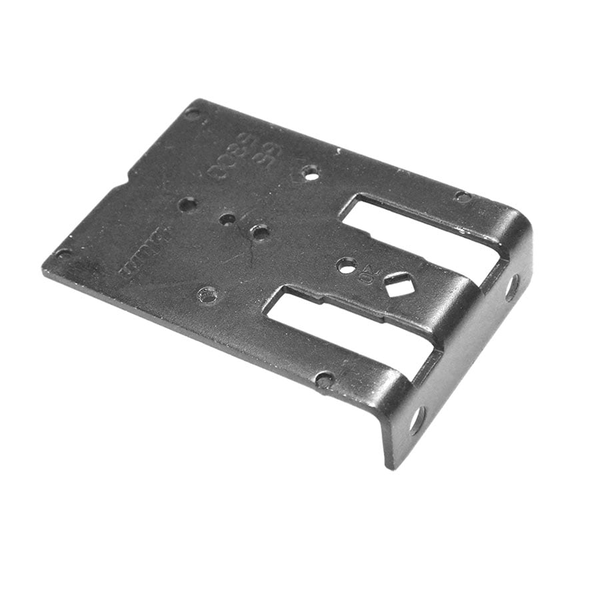

Blum Plate Guide Template

  Rating 4.2 | 48 Reviews in the past 24 months | Our Item Number BA65.5300

For use with Clip or Modul mounting plates on overlay applications in panel cabinets this template simply locates mounting plate screw positions and transfers measurements from door to cabinet.

$
14.31 Each
$20.44
SAVE 30%
Ends Aug 05
Product Info Material: Steel, See more product details
Qty:       Each


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Notes : For use with Clip or Modul mounting plates on overlay applications in panel cabinets
    Simply locates mounting plate screw positions
    Transfers measurements from door to cabinet
    Pilots 2.5MM holes for wood screws

  • Manufacturer Info

  • Manufacturer : Blum
  • Manufacturer Part # : 65.5300

  • Other Important Info

  • Material : Steel
  • Product Finish : Black Powder Coat
  • Product Type : Mounting Plate Template
  • Sold : Each

  • Manufacturer Resources

Back to Top
back to top

Our customers say Blum products...

  4.2 out of 5
based on 48 ratings

"These reviews are from our customers who have purchased Blum products."
  • 4 of 5 BY February 6th, 2025
    by Yisroel from Brooklyn, NY

    (no comment given)

    Was this review helpful? yes no

  • 3 of 3 people found the following review helpful
    5 of 5 KITCHEN HARDWARE HELP May 8th, 2014
    by Thomas from Old Bethpage, NY

    This item helped me to replace a broken hinge, I did it on a cabinet that was already in place. I used this guide and it really made the job easy. Many times when you replace a hinge, they are obsolete and the spacing of the screws is different, with the proper template guide its much better.

    Was this review helpful? yes no

  • 2 of 2 people found the following review helpful
    5 of 5 Told the Complete Story February 1st, 2019
    by Neil from Plymouth, MN

    The video resources were very helpful in showing the steps needed to install a hinge. What was particularly helpful was the combination of support to help find the proper replacement hinge for one I had that had been discontinued.

    Was this review helpful? yes no

  • 2 of 3 people found the following review helpful
    5 of 5 Does the job August 16th, 2014
    by Marina from Astoria, NY

    I was able to hang a kitchen full of cabinets all by myself... Didn't need one person measuring and marking and the other holding... Totally worth it!

    Was this review helpful? yes no

  • 1 of 1 people found the following review helpful
    5 of 5 Great Parts Fit correctly December 11th, 2019
    by Christopher from Pelham, MA

    Thanks so much for the help in determining the proper pieces and parts to make these hinges work properly. I will definitely use you for all my future parts purchases. The Backyard Cabinet maker

    Was this review helpful? yes no
