Drawer Slides (glides) Undermount Drawer Slides Value Line Undermount Drawer Slides by CabinetParts
Loading from Primary Photo

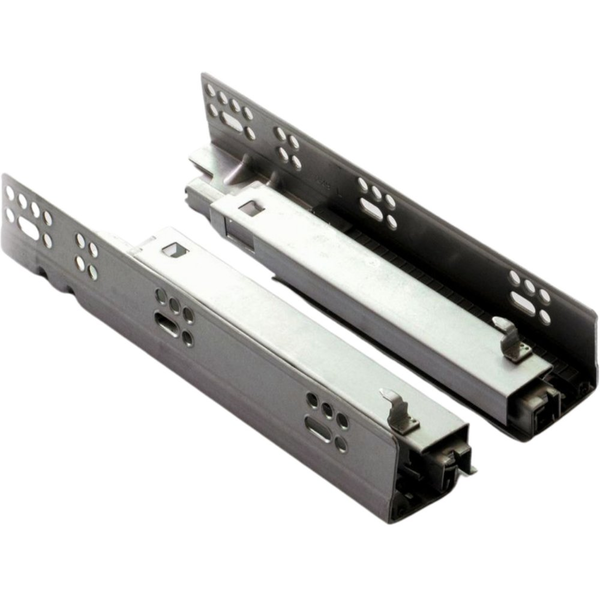

9 Inch Length VLS 2.0 Soft-Close Full Extension Undermount Slide for up to 5/8 Inch Width Drawer Sides, 90 lb. Load Rating, Front Locking Devices Required, Zinc Plated Steel

  Rating 4.6 | 165 Reviews in the past 24 months | Our Item Number VLS2-U9-SC

Our VLS 2.0 Undermount, Soft Close Slides, manufactured to fit standard undermount drawer specifications, offer an high quality and economical solution for most drawer and roll-out applications. Designed for a dynamic load capacity of 90 lbs and smooth full extension operation, they offer a seamless soft-closing action to enhance any cabinetry system.

$
18.14 Pair
$17.60/ea for 6
$25.91
SAVE 30%
Ends Sep 01

Compatible Drawer Length:

Need Help? Contact Us Now
Product Info Length: 9 Inch, Closing Type: Soft Closing, Load Rating: 90 lbs, Extension: Full, Material: Steel, See more product details
Qty:       Pair
  or
PRO Packs ™
Save more! Buy a Pro Pack.



Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Length : 9 Inch
  • Required Side Clearance (R+L) : 3/8 Inch
  • Actual Slide Length (Inches) : 10-1/16 Inch
  • Actual Slide Length (mm) : 256mm
  • Minimum Required Internal Cabinet Depth (mm) : 283mm
  • Minimum Required Internal Cabinet Depth (Inches) : 11-1/8 Inch
  • Max Internal Cabinet Depth (mm) : 298mm
  • Max Internal Cabinet Depth (Inches) : 11-3/4 Inch
  • Max Drawer Material Thickness : 5/8 Inch

  • Manufacturer Info

  • Manufacturer Part # : VLS2-U9-SC

  • Other Important Info

  • Note : In order for the rear mounting brackets to mount this slide, a wood addition is required
  • Installation Note : This model does not have compatible rear mounting brackets. For face frame applications, the cabinet side walls must be built up to be flush with the frame in order to mount the slides. Frameless applications do not need rear mounting brackets and can be installed as usual.
  • Series : Cabinetparts VLS 2.0 Undermount Slides
  • Product Type : Undermount Drawer Slides
  • Closing Type : Soft Closing
  • Load Rating : 90 lbs
  • Extension : Full
  • Material : Steel
  • Product Finish : Zinc Plated
  • Includes : (1) pair of slides

  • Manufacturer Resources

Back to Top
back to top

Our customers say CabinetParts products...

  4.6 out of 5
based on 165 ratings

"These reviews are from our customers who have purchased CabinetParts products."
  • 4 of 5 people found the following review helpful
    4 of 5 Slides seem good but instructions lacking January 22nd, 2021
    by Robert from Maplewood, MN

    Measurements on the drawings are metric. I'm totally capable of converting millimeters to inches, however, it wouldn't take long for the owners at Cabinetparts.com to have someone convert metric to English measurements on the drawings and make them available to us woodworkers. Why not go the extra step as opposed to making every customer get out a calculator to covert the measurements? Also no fine tuning instructions are provided, so I did the chat thing and that person couldn't help me. There are 3 adjusters that allow fine tuning. I can figure out two of them but the third adjuster seems to do nothing. I was promised a call back but I'm still waiting. Other than these two issues, I think the slides are great for my application and I saved money.

    Was this review helpful? yes no

  • 4 of 5 Kitchen pull outs April 3rd, 2024
    by Linda from Syracuse, NE

    Quality work however they only made them 8 inches wide for a 12 inch space which even with the sides added in left me 3 inches of nothing so I’m going to have to find someone to fix these so that they’re usable

    Was this review helpful? yes no

  • 4 of 5 Drawer slides January 3rd, 2023
    by Ron from Rockford, MI

    I ordered 2 sets of drawer slides. Only one came. So I sent an email and they sent the missing drawer guides out. I would use them again.

    Was this review helpful? yes no

  • 5 of 5 great slides August 6th, 2026
    by Robert from Indian Harbour Beach, FL

    (no comment given)

    This review is about a different size/color of this item. (VLS2-U21-SC)

    Was this review helpful? yes no

  • 1 of 1 people found the following review helpful
    5 of 5 Only slides to consider March 27th, 2026
    by Ed from Ossian, IN

    Easy to install. Best drawer slides I have found. The only ones I use. Highly recommend

    This review is about a different size/color of this item. (VLS2-U18-SC)

    Was this review helpful? yes no
