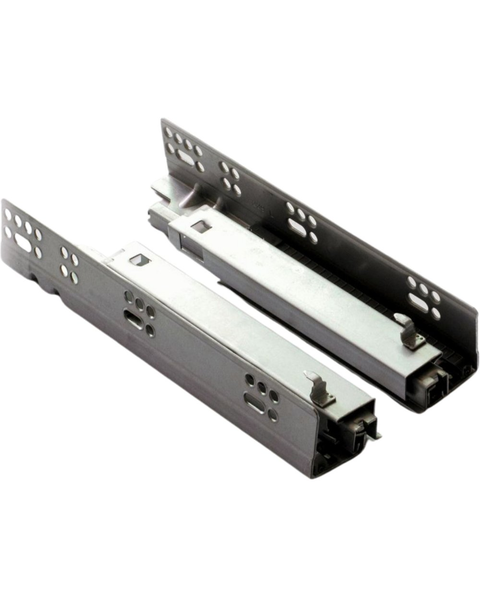

9 Inch Length VLS 2.0 Soft-Close Full Extension Undermount Slide for up to 5/8 Inch Width Drawer Sides, 90 lb. Load Rating, Front Locking Devices Required, Zinc Plated Steel

  Rating 4.6 | 164 Reviews in the past 24 months | Our Item Number VLS2-U9-SC

Our VLS 2.0 Undermount, Soft Close Slides, manufactured to fit standard undermount drawer specifications, offer an high quality and economical solution for most drawer and roll-out applications. Designed for a dynamic load capacity of 90 lbs and smooth full extension operation, they offer a seamless soft-closing action to enhance any cabinetry system.

$
18.14 Pair
$17.60/ea for 6
$25.91
SAVE 30%
Ends Jun 21

Compatible Drawer Length:

Need Help? Contact Us Now
Product Info Length: 9 Inch, Closing Type: Soft Closing, Load Rating: 90 lbs, Extension: Full, Material: Steel, See more product details
Qty:       Pair
  or
PRO Packs ™
Save more! Buy a Pro Pack.



Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Length : 9 Inch
  • Required Side Clearance (R+L) : 3/8 Inch
  • Actual Slide Length (Inches) : 10-1/16 Inch
  • Actual Slide Length (mm) : 256mm
  • Minimum Required Internal Cabinet Depth (mm) : 283mm
  • Minimum Required Internal Cabinet Depth (Inches) : 11-1/8 Inch
  • Max Internal Cabinet Depth (mm) : 298mm
  • Max Internal Cabinet Depth (Inches) : 11-3/4 Inch
  • Max Drawer Material Thickness : 5/8 Inch

  • Manufacturer Info

  • Manufacturer Part # : VLS2-U9-SC

  • Other Important Info

  • Note : In order for the rear mounting brackets to mount this slide, a wood addition is required
  • Installation Note : This model does not have compatible rear mounting brackets. For face frame applications, the cabinet side walls must be built up to be flush with the frame in order to mount the slides. Frameless applications do not need rear mounting brackets and can be installed as usual.
  • Series : Cabinetparts VLS 2.0 Undermount Slides
  • Product Type : Undermount Drawer Slides
  • Closing Type : Soft Closing
  • Load Rating : 90 lbs
  • Extension : Full
  • Material : Steel
  • Product Finish : Zinc Plated
  • Includes : (1) pair of slides
