24 Inch Width Hammam Lavatory Supports, Black

  Rating 4.5 | 22 Reviews in the past 24 months | Our Item Number FB-39836

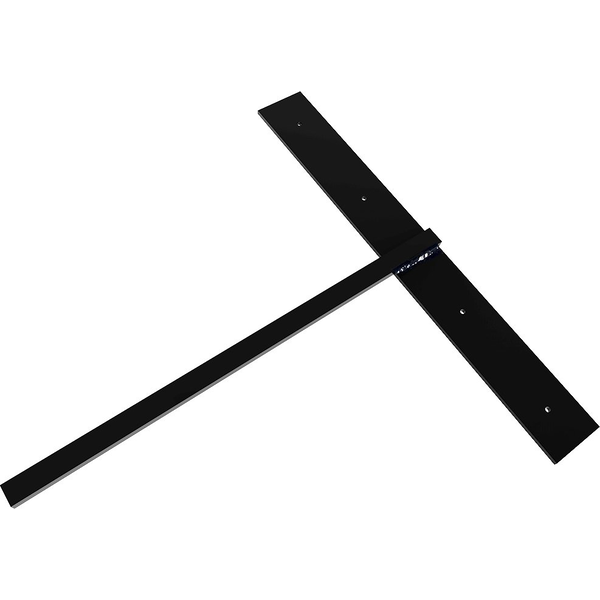

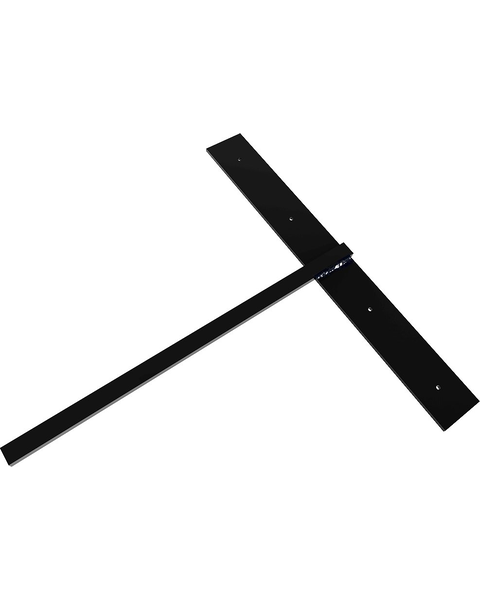

The Hammam Lavatory Support by Federal Brace is designed to mount on the side of wooden wall studs with the support arm extending out and under a vanity or stone top. This support system comes in two sizes and finishes with an invisible or floating surface configuration. The 1/2" thick arm is placed 33" from the bottom of the 48" tall Hammam and is centered on the 24" tall Hammam. Both sizes provide 20" of support under a lavatory counter. Your vanity surface should not extend more than 4" past the end of the support. Place one bracket on every stud for the length of the lavatory counter. Federal Brace recommends using a vanity support that extends within 4" of the front edge of the vanity. Excessive overhang may cause significant force in a point load situation. Maximum load carrying capacity on vanity support brackets is 200 lbs. with 1/32 deflection.

$
85.83 Each
$95.37
SAVE 10%
Ends Aug 05
Product Info Product Depth: 20 Inch, Product Width: 24 Inch, Collection: Hammam, Product Weight: 20 lbs, Product Finish: Black, See more product details
Qty:       Each


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Product Depth : 20 Inch
  • Product Width : 24 Inch
  • Product Height : 3/4 Inch Inch
  • Material Thickness : 1/4 Inch Plate, 1/2 Inch Rod
  • Holes : 4 - 0.26 Inch Straight Holes
  • Collection : Hammam

  • Manufacturer Info

  • Manufacturer : Federal Brace
  • Manufacturer Part # : 39836
  • Manufacturer Finish : Black

  • Other Important Info

  • Product Type : Lavatory Support
  • Product Weight : 20 lbs
  • Product Finish : Black
  • Material : Steel
  • Fasteners : Not Included
  • Carry Capacity : 200 lbs each
  • Note : **PRODUCT SKUS 39832 AND 39834 WILL SHIP FREIGHT REGARDLESS OF QUANTITY**
  • ADA Compatibility : Yes
