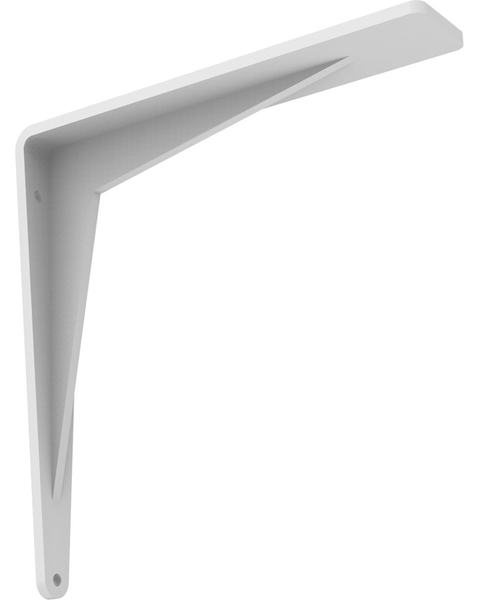

Loading from Primary Photo

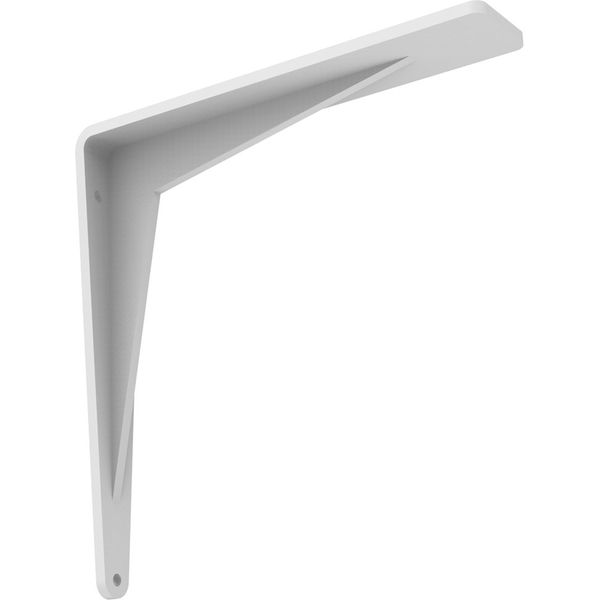

Chevron Countertop Support Bracket 16 x 2 x 16 Inch, Flat White

  Rating 4.6 | 23 Reviews in the past 24 months | Our Item Number FB-40463

The Chevron Countertop Support Bracket by Federal Brace has a slim gusset that provides additional support for heavier stone countertops such as granite, quartz, concrete and other solid surfaces. The Chevron is the perfect selection for supporting your wall hung counters, floating desks, etc. with no worry of knee knocking. A 500 pound carry capacity makes it perfect when there is no other support available.

$
106.09 Each
$120.23
SAVE 12%
Ends Jul 18

Finish: Flat White
Flat Black Flat White

Length:

Product Info Length: 16 Inch, Width: 2 Inch, Height: 16 Inch, Product Finish: White, Material: Steel, See more product details
Qty:       Each


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Length : 16 Inch
  • Width : 2 Inch
  • Height : 16 Inch
  • Bracket Size : 16" x 2" x 16"
  • Material Thickness : 1/4 Inch
  • Includes : (1) Chevron Countertop Support Bracket, recommended fastener kit: 39972
  • Holes : (3) 1/4 Inch Straight Holes
  • Recommendation : Use a countertop support that extends to within 4 Inch of the edge of your countertop

  • Manufacturer Info

  • Manufacturer Finish : Flat White
  • Manufacturer : Federal Brace
  • Manufacturer Part # : 40463

  • Other Important Info

  • Product Type : Countertop Brackets
  • Product Finish : White
  • Material : Steel
  • Fasteners : Not Included
  • Weight Capacity : 500 Lbs Each
  • Series : Chevron

  • Manufacturer Resources

Back to Top
back to top

Our customers say Federal Brace products...

  4.6 out of 5
based on 23 ratings

"These reviews are from our customers who have purchased Federal Brace products."
  • 15 of 20 people found the following review helpful
    5 of 5 Substantial bracket June 4th, 2018
    by Keith from SANDPOINT, ID

    We were looking for brackets to mount a glass bar over the end of a granite Kitchen island. These fit the bill perfectly! We were able to get a 10 inch projection from the island, and the style of the brackets perfectly complimented the contemporary full overlay cabinets. These are substantial and well made pieces of hardware. Service and shipping were prompt.

    This review is about similar Federal Brace Shelf Hardware. (FB-31504)

    Was this review helpful? yes no

  • 8 of 13 people found the following review helpful
    5 of 5 Strong and attractive April 14th, 2015
    by Deena from Pittsford, NY

    These braces are heavy and strong, to support a granite breakfast bar. Even our contractor commented on how attractive they are, and that they are much more substantial than most he's seen. Shipping was fast. We are pleased.

    This review is about similar Federal Brace Shelf Hardware. (FB-30132)

    Was this review helpful? yes no

  • 6 of 12 people found the following review helpful
    5 of 5 Couldn't be Happier December 5th, 2016
    by William from Wentzville, MO

    After an extensive online search for just the right supports for a unique glass bar, I discovered Cabinetparts.com. I found the selection for my needs to be far better than any other website I visited and the prices to be very competitive. The ordering and shipping process was simple and the supports I received were exactly what was advertised; no unpleasant surprises. I bookmarked their website on my computer for any future products I may need. Easily, 5 stars.

    This review is about similar Federal Brace Shelf Hardware. (FB-35010)

    Was this review helpful? yes no

  • 3 of 3 people found the following review helpful
    3 of 5 Peeling paint on $70 brackets June 1st, 2021
    by Maureen from Indianapolis, IN

    I ordered five white steel Freedom hidden countertop brackets - 14" at $70 each for a quartz countertop. They arrived on time, each individually wrapped in bubble wrap, but when I removed them from the wrap to hang them, 3 of the 5 had paint cracks and chipping at the curved/bent part of the brackets. I thought they were powdered coated; obviously not. I had to go ahead and use them because the templater was arriving next day. Disappointed about peeling paint on $70 brackets.

    This review is about similar Federal Brace Shelf Hardware. (FB-30065)

    Was this review helpful? yes no

  • 2 of 2 people found the following review helpful
    5 of 5 Brackets did the job November 29th, 2023
    by Jerry from BEACH LAKE, PA

    The brackets were very nice. Painted well and appeared very strong. I opened the wall to mount them right to the studs. Lag bolted them in.. I put a 13" deep quartz counter on them and had about 1/16" sag. I put a 1/8" spacer at the ends of the brackets and it was fine. The counter is solid and I an very happy I purchased.

    This review is about similar Federal Brace Shelf Hardware. (FB-30064)

    Was this review helpful? yes no
