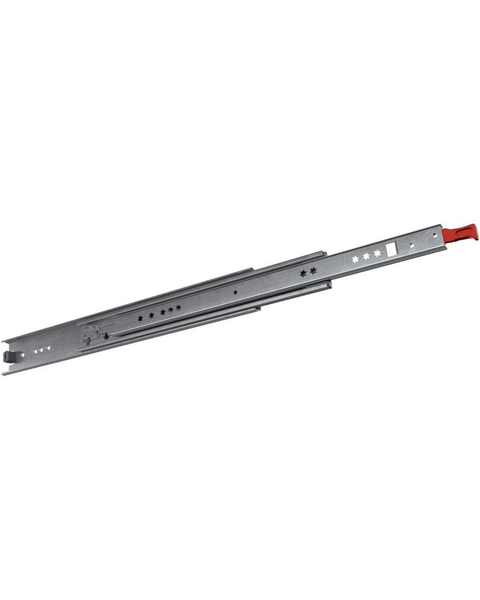

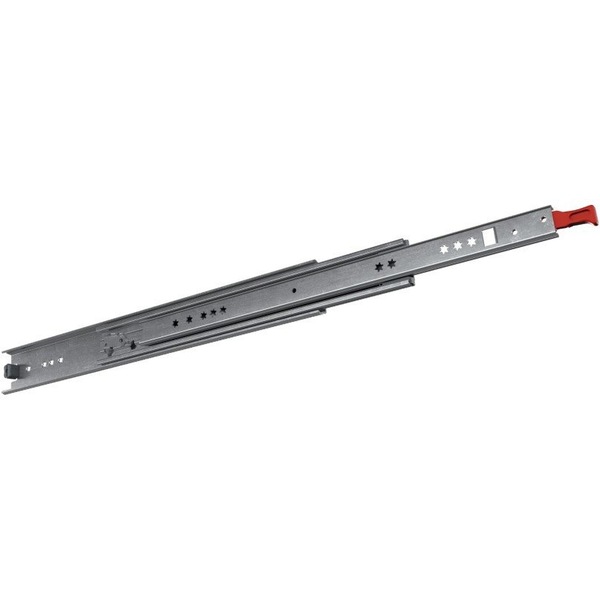

Fulterer 5600L 20" (508mm) Full Extension Side Mount Slide with Lock-in and Lock-out Mechanism, 250 lb. Load Rating, 2-7/32" (56mm) High x 3/4" (19.1mm) Wide, 1-1/2" Drawer Side Space Required
Rating 4.5 | 400 Reviews | Our Item Number FUL-FR5609L20
Favored for many RV and Boating applications, the 5609 slide features a Lock-in and Lock-out Mechanism holding the drawer in either an open or closed position. This precision ball bearing slide is suitable for heavy duty applications including filing cabinets, office furniture, and architectural millwork, and is also applicable for flat-mount installation (horizontal) with a reduced load capacity
$
79.62 Pair
$78.03/ea for 10
$108.86
SAVE 27%
Ends Oct 07
Ends Oct 07
Length:
Need Help? Contact Us Now
Product Info Length: 20 Inch, Product Finish: Zinc, Extension: Full Extension, Load Rating: 220 lbs, Closing Type: Manual, See more product details
or
Packs ™Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Length : 20 Inch
- Key Features : Drawer profile with disconnect release trigger
Lock-in and Lock-out mechanism
Stainless Steel Ball Bearing Cages
Not symmetrical - function of the locking lever
Applicable for flat-mount installation - reduced load capacity - Slide Height : 2-7/32 Inch (56 mm)
- Build-In Width : 3/4 Inch (19.1 mm)
-
Manufacturer Info
- Manufacturer Series Name : FR5609SL
- Manufacturer : Fulterer
- Manufacturer Part # : 76123
-
Other Important Info
- Product Type : Drawer Slide: Full Extension
- Product Finish : Zinc
- Extension : Full Extension
- Load Rating : 220 lbs
- Includes : (1) Pair of drawer slides
- Closing Type : Manual
- Mounting Type : Side Mount
- Material : 304 Stainless Steel
Manufacturer Resources
Other - FR5609 Side Mount Heavy Duty Full Extension Drawer Slides by Fulterer
-
