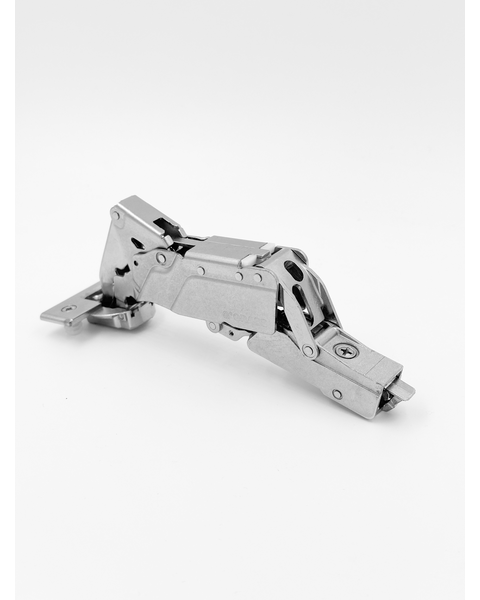

Grass Tiomos 155 Degree Opening Self-Close Full-Overlay Hinge, Press-in Dowel Mounting, 42mm Hinge Screw Spacing

  Rating 4.6 | 1,026 Reviews in the past 24 months | Our Item Number GHA-F045138320217

Experience the precision of Grass Tiomos Hinges engineered for frameless cabinets with tool-free installation and a choice of press-fit or screw-on mounting. Offered in 110 Degrees, 120 Degrees, and 155 Degrees opening angles, these hinges support overlays up to 24 mm and use a standard 35 mm cup diameter. Available in models for 42 mm or 45 mm screw hole spacing, Tiomos comes in self-close (spring), soft-close (damper), and free-swinging versionsâ??perfect for touch-to-open systems. Premium performance meets modern flexibility.

$
9.99 Each
$9.69/ea for 50
$14.27
SAVE 30%
Ends Jun 12

Hinge Screw Spacing:

Overlay:

Mounting Type / Closing Type:

Product Info Hinge Screw Spacing: 42 mm, Side Adjustment: +/- 2 mm, Depth Adjustment: +/-2 mm, Collection: Tiomos, Closing Type: Self-close, See more product details
Helpful Tip TIP: HINGES ARE COMPLICATED: Use our FREE TOOL to buy the correct hinge and mounting plate. Start Now
Qty:       Each
  or
PRO Packs ™
Save more! Buy a Pro Pack.



Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Hinge Screw Spacing : 42 mm
  • Cup Drilling Diameter : 35 mm
  • Side Adjustment : +/- 2 mm
  • Height Adjustment : +/-2.5 mm
  • Depth Adjustment : +/-2 mm
  • Installation Note : Set back mounting plate screw-on position by door thickness +1.5 mm.

  • Manufacturer Info

  • Manufacturer : Grass
  • Manufacturer Part # : F045138320217

  • Other Important Info

  • Product Type : Concealed hinge
  • Degree of Opening / Overlay : 155 Degrees / Full overlay
  • Mounting Type / Closing Type : Dowelled / Self-close
  • Collection : Tiomos
  • Degree of Opening : 155 Degrees
  • Closing Type : Self-close
  • Mounting Type : Dowelled
  • Overlay : Full overlay
  • Cranking : 00
  • For Door Material : Wood
  • Door Processing For Assembly : With Cup Drilling
  • Installation Note : Includes dowels for 3-hole pre-bore; remove for screw-on. #6 × 5/8" flat-head screws required.
