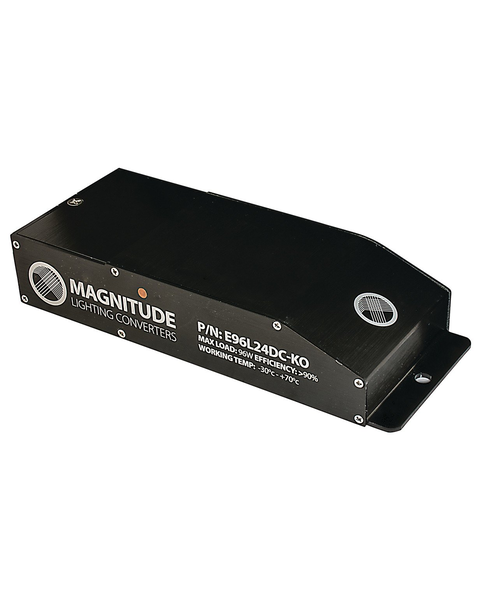

Loox Dimmable 24V/96W LED Driver, Requires Direct "Hardwire" Connection to 120VAC Circuit and Lighting Leads, Black
Loox Dimmable LED Drivers are designed for seamless integration with home electrical systems, providing stable 12V or 24V power for your Loox LED lighting. These transformers are hardwired—both to the 120V home wiring and to the light leads—rather than using a plug-in connection. For easier installation, instead of hardwiring each light lead, you can connect a 2-way or 6-way distributor with a compatible 12V or 24V extension lead, allowing plug-and-play convenience for multiple fixtures. To choose the right transformer size, simply add up the wattage of each fixture, or calculate the total wattage based on the length of tape light being used. Unlike standard Loox drivers, these transformers are fully dimmable with common 120V LED wall dimmers, giving you smooth, reliable control of your cabinet, shelving, or accent lighting directly from your home’s standard dimmer switches
Ends Jun 21
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Key Features : Degree of protection Nema 3R enclosure type
Hard wired by licensed electrician only
Dimmable with any standard MLV/CL (Triac) Forward Phase Dimmer Switch
Class 2 low voltage power supply
8 W min load - Length : 172 mm
(6 3/4") mm - Width : 69 mm
(2 11/16") mm - Height : 32 mm
(1 1/4") mm - Supplied with : 2 conduit connections/grommets
-
Manufacturer Info
- Manufacturer : Hafele
- Manufacturer Part # : 833.02.966
-
Other Important Info
- Voltage : 24- 20V
- Product Type : LED Transformer
- Finish : Black
- Wattage : 96 W
- Volts : 24V-120V
- Output voltage : 24 VDC
- Input voltage : 120 V 60 Hz
- Material : Aluminum
- Color : Black
Manufacturer Resources
6-Way Distributor with Switch Function
6 Way Distributor
Low-Voltage “Wired” Switches/Sensors- Requires Modular Switch Lead
Extension Leads
Wireless “Mesh” 6-Way Distributor with Switch Function
Remote Switching/Control
Other - Loox LED Power Supplies by Hafele
