Lighting for Cabinets and Furniture LED Cabinet Lighting LED Tape Lighting for Under Cabinets Loox 3140 LED Strip Lights by Hafele
Loading from Primary Photo

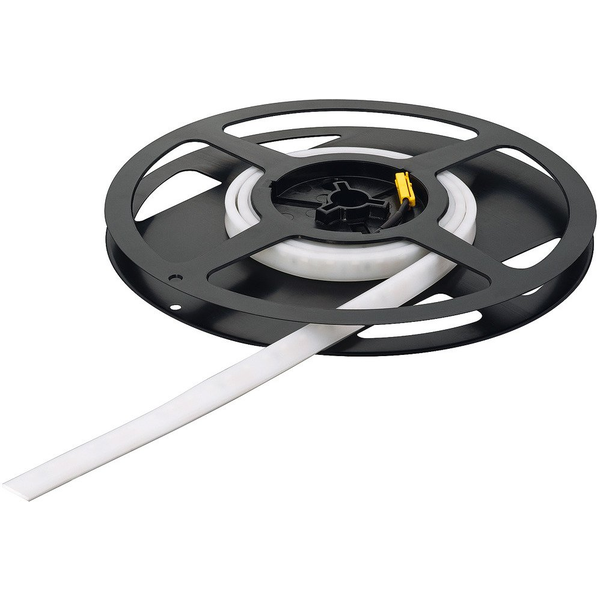

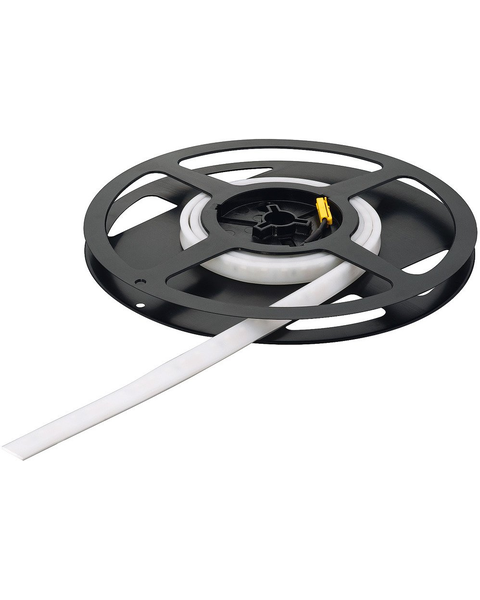

Loox5 3099, 118-1/8 Inch (9.8 ft.) Length “Edge Emitting” Silicone LED Strip Light, 12V/3W per ft., Recessed Mounting, 3/16”W x 3/8”D Groove Required, 2 Soldered Leads Included, 3000K Warm White

Product Discontinuation AlertThis item has left our catalog. It's either upgraded to a newer model, didn't meet our high customer satisfaction standards, or the manufacturer said goodbye. But don't worry, CabinetParts is always here with top-notch alternatives.

See Newer Models

All the product info you could ask for...

  • Size Info

  • Strip Length : 118-1/8 Inch
  • Section Length : 1 Inch
  • Silicone Tube Width : 3/8 Inch
  • Silicone Hose Height : 3/16 Inch
  • Contact Surface Length : 1/4 Inch
  • Maximum Strip Length : 118-1/8 Inch
  • Routing Width : 3/16 Inch
  • Routing Depth : 3/8 Inch
  • Minimum Bending Radius : 1-3/16 Inch
  • Cable Length : 7-7/8 Inch
  • Installation : For recess mounting and press fitting to grooves 4x10mm. For embedding in routed channel.
  • Key Features : The light emits from the edge of the ribbon, no LED dots visible
    Designed for recessed installation in a 4 mm wide groove
    Mounts stay flush with the panel
    Flexible silicone allows for curved applications

  • Manufacturer Info

  • Manufacturer : Hafele
  • Manufacturer Part # : 833.74.261
  • Manufacturer Finish : White

  • Other Important Info

  • Product Type : LED Flexible Strip Light
  • Silicone Tube Finish : Matt
  • Series : Loox 2099
  • Color Temperature : 3000K
  • Light Color : Warm White
  • Luminous Flux : 520 Lm
  • Luminous Efficacy : 54 Lm/W
  • Voltage : 12 V
  • Wattage : 9.6 W
  • Color Rendering Index Ra : >90
  • Color Rendering Index R9 : >50
  • Number of LED's : 120
  • Model : LED 2099
  • Energy Efficiency Class : G
  • Dimmable : Yes
  • Life Time : L80/B10 >50,000H
  • Degree of Protection : IP44
  • Product Finish : White
  • Material : Silicone
  • Supplied With : (1) LED strip light with (2) 0.2 m soldered lead 3.5 A/20 AWG (1 each on the left/right of the strip). Strip can be divided into 2 sections.
  • Shape : Round
  • Area of Application : Display cabinets and representative furnishing, Storage spaces, Working areas
