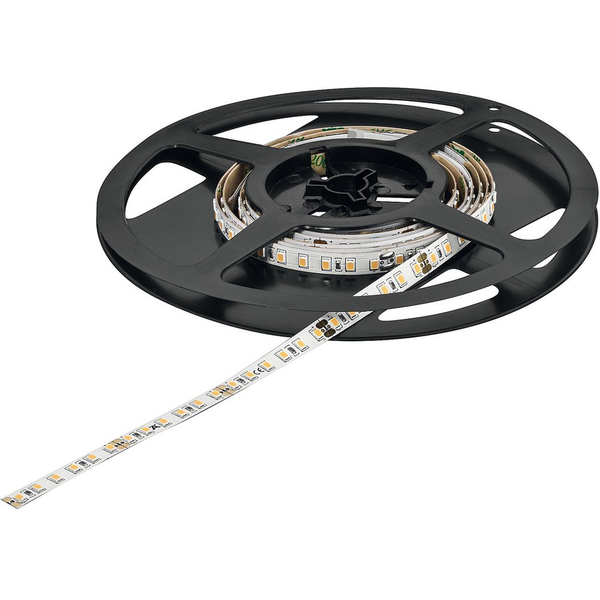

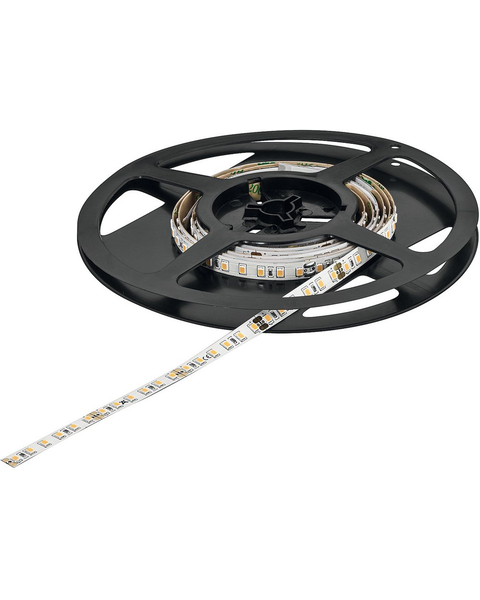

164 Feet (50000 mm) Loox5 LED 3045 9.6 W 24 V Flexible Tape Light, 3000K Warm White
Product Discontinuation AlertThis item has left our catalog. It's either upgraded to a newer model, didn't meet our high customer satisfaction standards, or the manufacturer said goodbye. But don't worry, CabinetParts is always here with top-notch alternatives.All the product info you could ask for...
-
Size Info
- Length : 1968-1/2 Inch (50000 mm)
- Note : Loox lights and drivers are "Suitable for use within closet storage spaces"
- Width : 5/16 Inch (8 mm)
- Trimmable Section Length : 50 mm
- Length Contact Surface P : 5/32 Inch (4 mm)
- Height : 1/16 Inch (1.3 mm)
- Order Reference : Please order lead separately. | Aluminum profile recommended from 9.6 W/m.
-
Manufacturer Info
- Manufacturer : Hafele
- Manufacturer Part # : 833.76.339
-
Other Important Info
- Product Type : LED Flexible Tape Light
- Product Finish : White
- Color Temperature : 3000K Warm White
- Light Output Per Meter : 970 lm
- LEDs per Meter : 120
- Material : Plastic
- Color Rendering Index : 90
- Color Rendering Index R9 : >50
- Wattage Per Meter : 9.6 W
- Weighted Energy Consumption : 10.56 kWh/1,000 h
- IP Code : IP20
- Volts : 24 V
- Installation : Self-adhesive
- Model : LED 3045
- Life Time : L80/B10 >50000 H
- Dimmable : Yes
- Energy Efficiency Class : A+
- Maximum Length Strip Visual : 8 m
- Supplied With : 1 roll
