Sliding Door Hardware Bifold Sliding Door Hardware Bifold Sliding Door Hardware by Hafele
Loading from Primary Photo

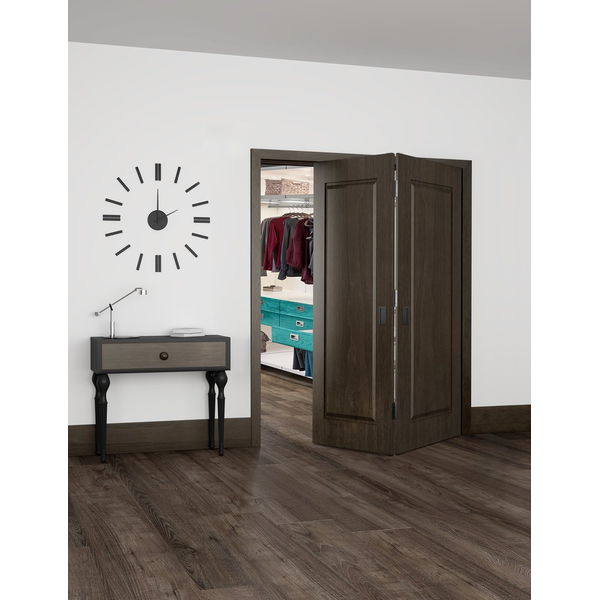

48-1/16 Inch Length Slido Classic Bi-Fold Door Set for Max Door Weight 66 lbs.,Silver

Our Item Number HAF-943.51.002

One touch is all it takes. Feel the sleek, flowing movement and the heft of sturdy construction designed to last through years of constant use. Designed for flexiility, our bi-fold system pivots to the right or left, mounts to the side or floor and is suitable for residential or light commercial projects. Meets ANSI/BHMA standard A156.14

$
401.54 Each
$501.92
SAVE 20%
Ends Sep 19
Product Info Max Door Width: 24 Inch, Max Door height: 108 Inch, Track Length: 48-1/16 Inch, Door Material: Wood, Max Door Weight: 66 lbs., See more product details
Qty:       Each


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Max Door Width : 24 Inch
  • Max Door height : 108 Inch
  • Max Door Thickness : 1-3/4 Inch
  • Track Length : 48-1/16 Inch
  • Includes : Upper running gear with suspension plate, Upper pivot with suspension plate, Lower pivot for wall mounting, Pivot plate, Stop bracket, Butt hinges, Wrenches, Mounting screws, 4 ft. upper track

  • Manufacturer Info

  • Manufacturer : Hafele
  • Manufacturer Part # : 943.51.002

  • Other Important Info

  • Product Type : Bi-Fold Door Set
  • Door Material : Wood
  • Max Door Weight : 66 lbs.
  • Number Of Doors : 2m
  • Country Of Origin : US
  • Product Finish : Silver
  • Soft & Self Closing Mechanism One Side : No
  • Soft & Self Closing Mechanism Both Sides : No
  • Floor Guide : No
  • Stopper included : Yes
  • Parts List : 940.43.929, 943.51.001, 730.11.518, 730.75.880, 732.29.860
  • Mounting Instructions : Yes
  • Screw packs : Yes

  • Manufacturer Resources
