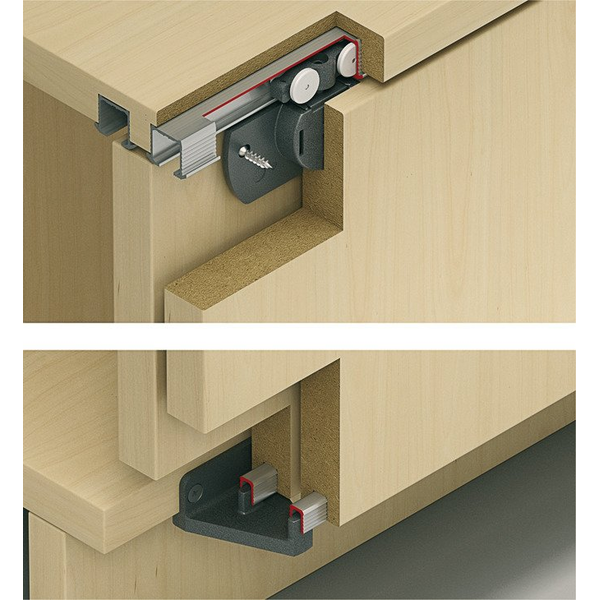

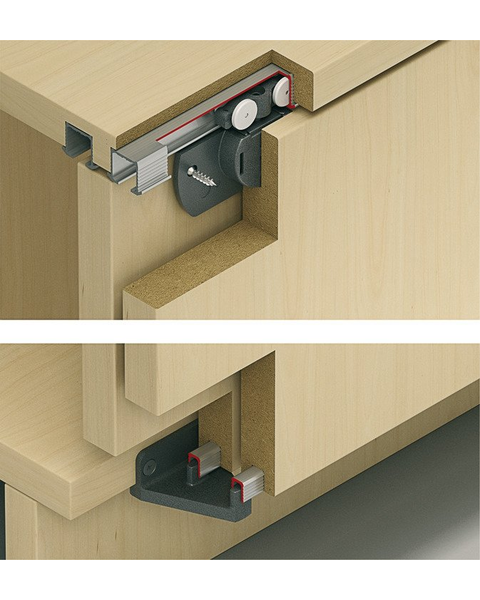

Clipo 16 H IS Mixline Fitting Set For Two Wood Doors up to 35 Lbs Weight Capacity, Track NOT Included
Product Discontinuation AlertThis item has left our catalog. It's either upgraded to a newer model, didn't meet our high customer satisfaction standards, or the manufacturer said goodbye. But don't worry, CabinetParts is always here with top-notch alternatives.All the product info you could ask for...
-
Size Info
- Product Width : â?¤39-3/8"
- Product Height : â?¤55-1/8"
- Door Height : â?¤55-1/8"
- Door Width : 3' 3-3/8"
- Door Thickness : 5/83" to 3/4"
- Height Adjustment : -1 to 2 mm adusting wheel
-
Manufacturer Info
- Manufacturer : Hawa
- Manufacturer Part # : 053.3221.071
- Manufacturer Finish : Plastic/Steel
-
Other Important Info
- Product Type : Sliding Door Hardware
- Product Finish : Plastic/Steel
- Material : Zinc alloy/Plastic/Steel
- Door Weight : â?¤35 Lbs
- Door Material : Wood
- Running Position : Top-hung, Mixslide
- Slide Type : Mixslide
- Number of Doors : 2
- Number of Rollers : 2
- For : Two Wood Doors
- Area Of Application : For thin cabinet top panels
- Installation : Guide for screw fixing, Screw-on housing, Running gear without tools (quick fixing system)
- Opening Type : Linear
- Weight Capacity : â?¤35 Lbs
- Series : Clipoâ?¯16â?¯Hâ?¯Mixslide
- Closing Type : Soft Close
- Key Features : Made for thin cabinet tops
- Includes : (4) Running gears (4) Housings (1) Soft-stop (2) Track stoppers (1) Floor guide
Manufacturer Resources
-
Helpful Videos
-
Installation Video
