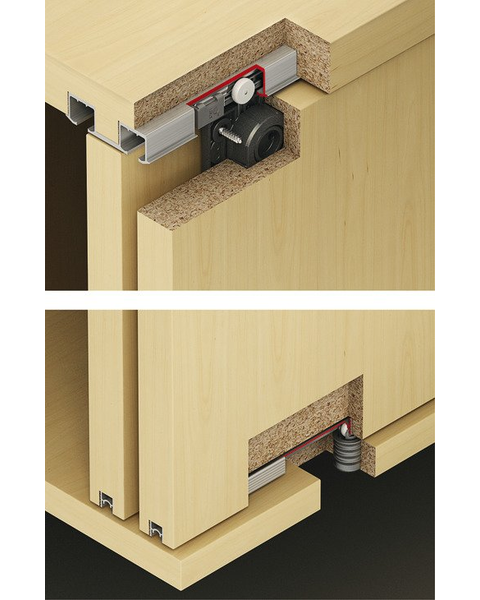

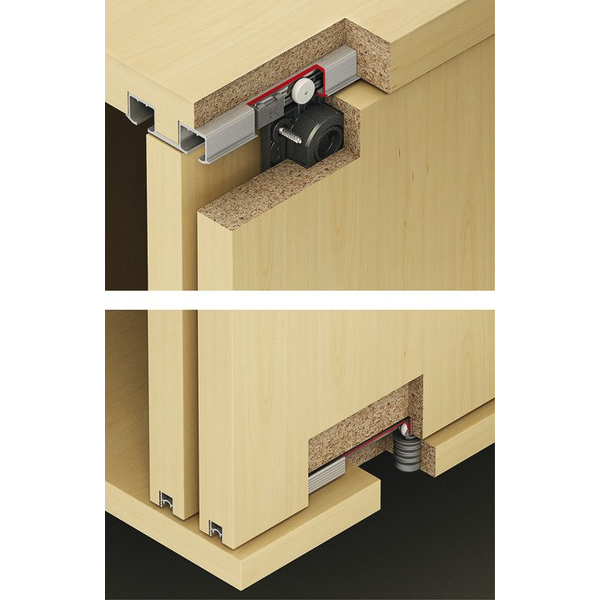

Clipo 26 H IS Series Inline Fitting Set For Two 3/4 to 1" Thickness Wood Doors up to 79 Lbs Weight Capacity, Track NOT Included
Product Discontinuation AlertThis item has left our catalog. It's either upgraded to a newer model, didn't meet our high customer satisfaction standards, or the manufacturer said goodbye. But don't worry, CabinetParts is always here with top-notch alternatives.All the product info you could ask for...
-
Size Info
- Door Height : 74-13/16" to 106-5/16"
- Door Width : 3' 3-3/8"
- Door Thickness : 3/4" to 1"
- Height Adjustment : -2 to 2 mm eccentric screw
- Product Width : â?¤39-3/8"
- Product Height : â?¤86-5/8"
-
Manufacturer Info
- Manufacturer : Hawa
- Manufacturer Part # : 053.3353.072
- Manufacturer Finish : Plastic/Zinc/Steel
-
Other Important Info
- Material : Plastic/Zinc-alloy/Steel
- Door Weight : â?¤79 Lbs
- Door Material : Wood
- Running Position : Top-hung, Infront
- Slide Type : Inslide
- Number of Doors : 2
- Number of Rollers : 4
- For : Two Wood Doors
- Area Of Application : For door weights up to 26/36 kg, with soft closing mechanism (optional)
- Opening Type : Linear
- Weight Capacity : â?¤79 Lbs
- Series : Clipoâ?¯36â?¯Hâ?¯IF
- Closing Type : Optional Soft Close
- Includes : (4) Running gears (1) Door follower (2) Guides (4) Track stoppers
- Product Type : Sliding Door Hardware
- Product Finish : Plastic/Zinc/Steel
