Wall-Mount Bracket for Floating 13-1/2 to 20" Cabinet and Vanity Widths, All Steel Construction, including Mounting Hardware

Name: InnovaShelf FVB-1521
Brand: InnovaShelf
SKU: INV-FVB-1521
Price: 79.2 USD
Availability: InStock

Our Item Number INV-FVB-1521

Innovashelf's Floating Vanity Bracket (FVB) System utilizes a modular design to accommodate a variety of applications

79.20 Each

$128.99

SAVE 39%
Ends Aug 05

Bracket Width Range:

Product Info Material: Steel, Country of Origin: USA, Warranty: Limited Lifetime, See more product details

Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

Size Info
Actual Bracket Width Range : 13-1/2 Inch - 20 Inch
Minimum Cabinet Width : 14-1/2 Inch for 1/2 Inch cabinet sides; 15 Inch for 3/4 Inch cabinet sides
Maximum Cabinet Width : 21 Inch for 1/2 Inch cabinet sides; 21-1/2 Inch for 3/4 Inch cabinet sides
Product Class : Residential & Commercial

Other Important Info
Product Type : Vanity Bracket
Load Capacity : 500 lbs (1 stud); 1000 lbs (2 studs)

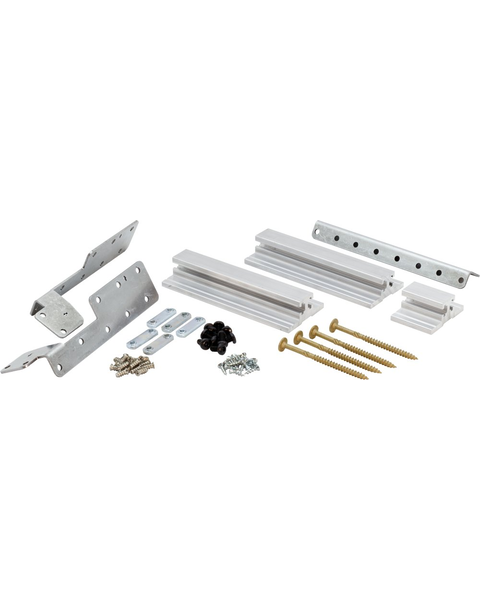

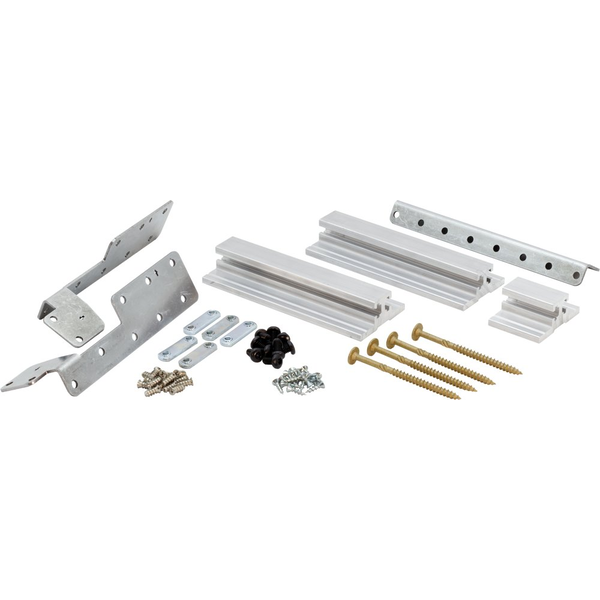

Includes : Kits include all components and screws necessary to hang a floating vanity: Rails, Channel nuts, 1/2" bolts, Center brace, Structural screws, Euro screws, 2" stud rail
Required Tools : Measuring tape, Level, Stud finder, pencil, Impact driver, 6" T30 torx drive bit, Drill, 5/16" drill bit
Key Features : Rail system mounts on the wall before the vanity is installed
Vanity brackets hook onto the rail for a sturdy installation
Vanity weight is supported by the rail while it is secured to the wall
Available in kits for vanities 15-84" wide.
Material : Steel
Country of Origin : USA
Warranty : Limited Lifetime
