Johnson 2000SC Soft-Close Heavy-Duty Pocket Door Frame Set for 36" Maximum Width x 84" Height Doors, 2 x 4 Wall Construction, 330 Lbs Load Bearing

  Rating 4.8 | 227 Reviews in the past 24 months | Our Item Number JH-203070SC

The 2000SC Series Soft-Close Pocket Door Frame is designed to softly operate heavy solid core doors in standard 2 x 4 timber or 4" steel framed stud walls when using the 1574PLBG 4" Steel Stud Adapter Kit. The 2000SC frame kit is packaged for easy transport and fast installation for either single door or converging door applications. The 2000SC is a versatile frame and can be adapted for use in non standard wall thicknesses, block masonry walls and can be cut down to accept smaller size door sizes. Minimum door width for bidirectional soft-closing door operation is 32". Minimum door width for single direction soft-closing door operation is 24"

$
400.12 Each
$571.59
SAVE 30%
Ends Jun 30

Maximum Door Size:

Product Info Stud Wall Size: 2" x 4", Wheel Diameter: 1 Inch, Max Door Height: 7 Ft, Max Door Width: 3 Ft, Mount Type: Top-Mount, See more product details
Qty:       Each


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Door Thickness : 1-1/8 Inch - 1-3/4 Inch
  • Maximum Door Size : 36" x 84"
  • Stud Wall Size : 2" x 4"
  • Key Features : Prefabricated frame header assembly, ready to install in 2 Inch x 4 Inch wall opening
    2000 Series precision extruded I-Beam Track
    Frames can be cut down to accommodate smaller door size
    Order (1) Frame Kit per door
    How to order the right PD Frame Kit: 1) Determine your door size (width, height, thickness) 2) Select a frame part number that accommodates your door size
    Includes (2) 2066 Soft-Close KITs, allowing door to have bi-directional soft-close/open capabilities
  • Wheel Diameter : 1 Inch

  • Other Important Info

  • Product Type : Pocket Door Frame
  • Max Door Height : 7 Ft
  • Max Door Width : 3 Ft
  • Mount Type : Top-Mount
  • Track Finish : Aluminum

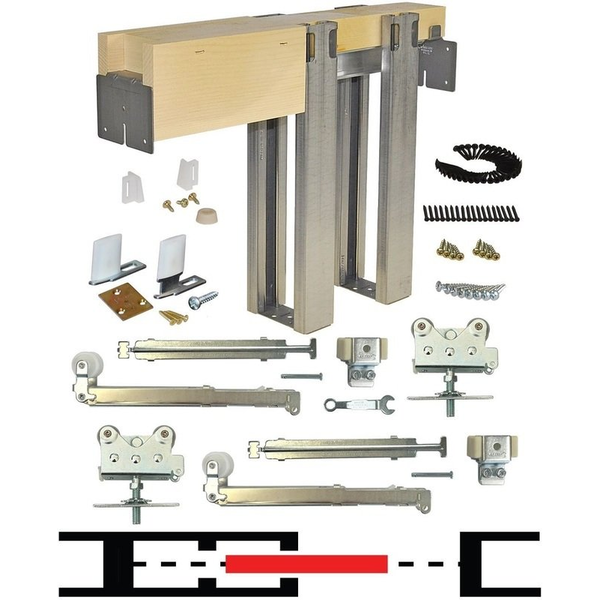

  • Includes : (1) Header (Factor Assembled) (2) 2020 Ball Bearing Door Hangers (4) Split Stud Lengths (2) 512085 Split Stud Floor Brackets (1) 2041PLBG Hidden Door Guide (1) 1550 Standard Pocket Door Guide (1) 1513 Door Bumper (2) 2055Track Stops (2) 512067 Actuator Arms (2) 312266 Connection Pins (2) 612067 Dampeners (1) 1412 Adjustment Wrench (18) Self-Tapping Drywall Screws (18) Self-Tapping Trim Screws
  • Closing Type : Soft-Close
  • Track Series : 203
  • Collection : 2000SC
  • Load Rating/Weight Capacity : 330 Lbs
  • Wheel Type : Nylon Encapsulated Sealed Ball Bearing
  • Steel Component Finish : 12-14 Guage
  • Split Stud Construction : 18 Gauge Cold Rolled Galvanized Steel
  • Country of Origin : USA
