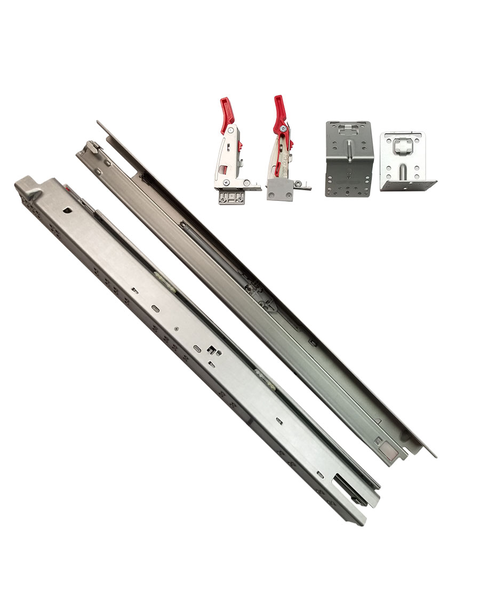

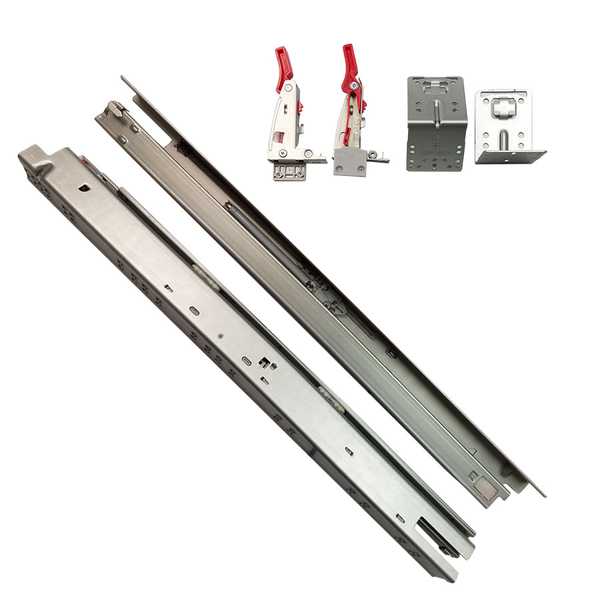

King 1A68F Soft Close Slide with Std Locking Devices 18"

Product Discontinuation AlertThis item has left our catalog. It's either upgraded to a newer model, didn't meet our high customer satisfaction standards, or the manufacturer said goodbye. But don't worry, CabinetParts is always here with top-notch alternatives.

See Newer Models

All the product info you could ask for...

  • Size Info

  • Length : 18"
  • Drawer Material Thickness : 5/8"
  • Profile Length : 18-1/2"
  • Overall Cabinet Depth : 21"
  • Cabinet Depth with Bracket Max : 20-9/16"
  • Cabinet Depth with Bracket Min : 18-7/8"
  • Features : Enhanced silent soft-closing feature with light opening force
    Durable dampening system with fast response capability
    Tool-less drawer height adjustmentfrom the drawer front with a 3.5MM range
    Effortless assembly & removal of drawer with front release lever
    High installation allowances for drawer width:+0/2MM and for drawer depth:+1/-1MM

  • Manufacturer Info

  • Manufacturer : King Slide
  • Manufacturer Part # : 1A68F457
  • Manufacturer Series Name : 1A68F

  • Other Important Info

  • Product Type : Drawer Slide: Undermount
  • Product Finish : Zinc
  • Load Rating : 75 lbs
  • Extension : Full
  • Closing Type : Soft Closing
  • Includes : (1) Pair of Drawer Slides with standard locking devices and rear mount sockets
  • Material : Steel
