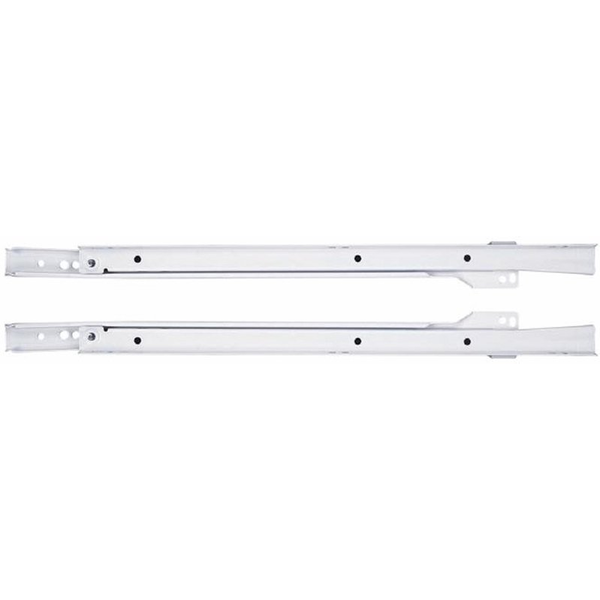

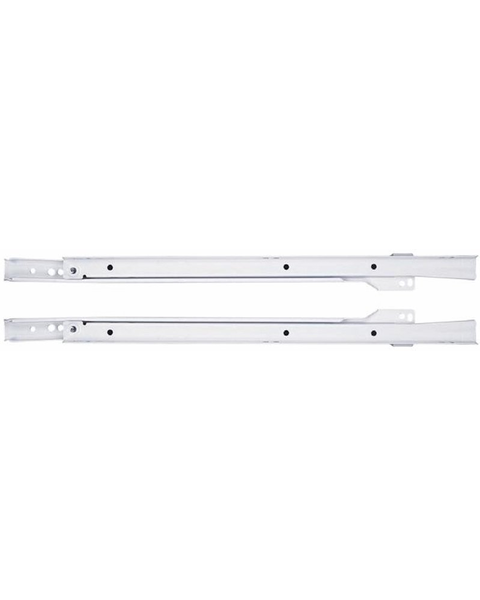

24 Inch Length Epoxy Coated Self-Close Side Mount Drawer Slide With 3/4 Extension, Pair, White

Our Item Number KV-1805T-WH-600

The 1805 Self-Close Euro Drawer Slide is designed for applications that require a value priced slide that is easy to install and replace. It's a 75 Lbs class, 3/4 extension epoxy-coated roller slide features a self-close design to hold drawer in a closed position, a 32mm hole pattern and lift-out disconnect for easy removal from the cabinet. Recommended for drawers up to 18 Inch wide.

$
7.83 Pair
$11.17
SAVE 30%
Ends Jun 30

Length:

Need Help? Contact Us Now
Product Info Length: 24 Inch, Width: 1/2 Inch, Height: 1-3/8 Inch, Clearance: .50" +.03" - 0", Mount Type: Sidemount, See more product details
Qty:       Pair


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Length : 24 Inch
  • Width : 1/2 Inch
  • Height : 1-3/8 Inch
  • Clearance : .50" +.03" - 0"
  • Key Features : The 1805 Self-Close Euro Drawer Slide is designed for applications that require a value priced slide that is easy to install and replace
    Applications include: Wood residential and commercial furniture, Commercial cabinetry, Kitchen, Bath cabinets and Millwork

  • Manufacturer Info

  • Manufacturer : Knape and Vogt
  • Manufacturer Part # : 1805T WH 600
  • Manufacturer Finish : White
  • Manufacturer Series Name : 1805

  • Other Important Info

  • Product Type : Slides
  • Mount Type : Sidemount
  • Product Finish : White
  • Material : Steel
  • Push To Open : No
  • Cabinet Type : Frameless or Face Frame (FF requires brackets)
  • Class : Medium Duty
  • Includes : (1) Left + Right cabinet profile (1) Left + Right drawer profile, NO installation screws, polybagged
  • Closing Type : Self-Closing
  • Extension : 3/4
  • Disconnect Style : Lift Out
  • Load Rating/Weight Capacity : 75 Lbs
