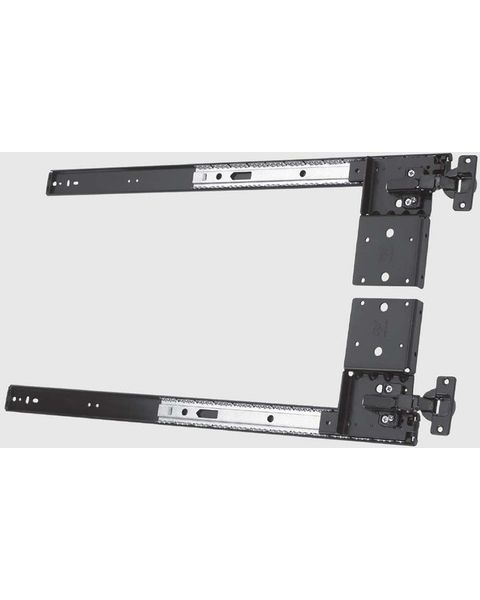

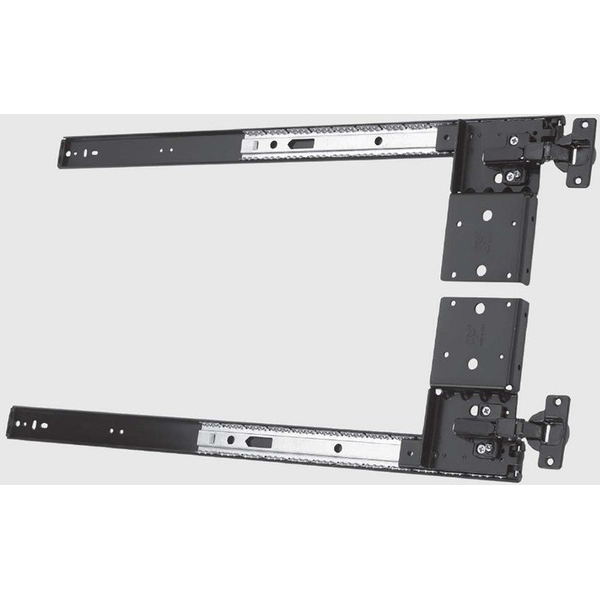

Knape and Vogt 8070 Inset Pocket and Flipper Door Slide, 22" Length Length (17.46" Travel), Including 35mm Bore Self-Closing Hinges and Mounting Plates, Pair, Ebony Black
The 8070/8071/8072 Series Pocket Door Slides are idea for use in entertainment and home theater cabinets, and is specifically designed to install quickly. The unique slide design allows the cabinet to act asan installation jig, and the follower strip bracket allows for the follower strip to be installed after the slides are installed. There is no need to pre-mount the follower strip to the slides. The 8070 are designed to hold doors up to 30 pounds and 42 Inches in height.
Ends Jun 21
Length:
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Length : 22 Inch
- Max Door Height : 42 Inch
- Max Door Width : 24 Inch
- Includes : (1) Left + Right pocket Door slide (2) Self-closing 35mm hinges & baseplates installation screws polybagged
- Key Features : 30 Lbs class pivot door slide is a 3/4 extension slide with self-close 35 mm three way adjustable door hinge
Mounts directly to cabinet side/cabinet top
The cabinet acts as an installation log
Features cushioned stops and door hold-out
Progressive movement on precision steel ball bearings
Recommended for vertical doors with a maximum height of 42 Inch and width of 24 Inch
-
Manufacturer Info
- Manufacturer : Knape and Vogt
- Manufacturer Part # : 8070PEZ EB 22
- Manufacturer Finish : Ebony Black
- Manufacturer Series Name : 8070
-
Other Important Info
- Product Type : Drawer Slide: Pocket Door
- Mount Type : Sidemount
- Product Finish : Black
- Material : Steel
- Extension : Full
- Disconnect Style : Hinge
- Load Rating/Weight Capacity : 30 Lbs
