Drawer Slides (glides) Side Mount Drawer Slides KV 8900 Extra Heavy Duty Slide
Loading from Primary Photo

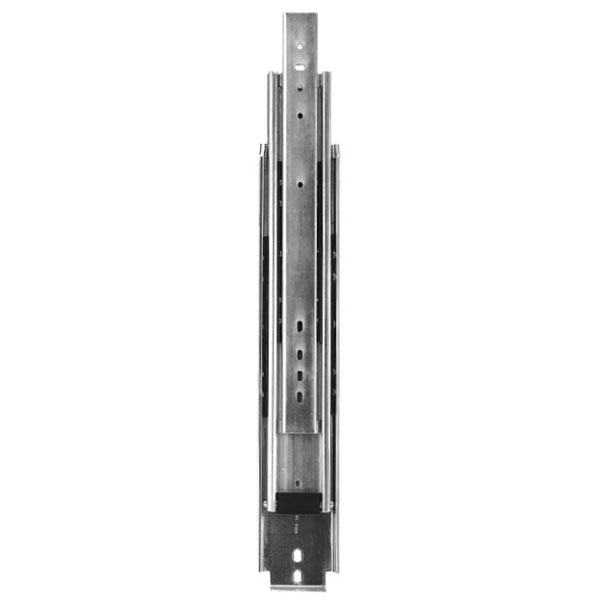

Knape and Vogt 8900P 36" Length Extra Heavy Duty Side-Mounted Slide, 500 lb. Maximum Load Rated, 38mm (1-1/2") Overall Side Space Required, Zinc

  Rating 4.5 | 659 Reviews in the past 24 months | Our Item Number KV-890036

Designed for extra heavy duty application, this slide features up to a 500lb weight capacity depending upon application.

$
292.81 Pair
$284.03/ea for 4
$418.30
SAVE 30%
Ends Oct 07

Length:

Need Help? Contact Us Now
Product Info Travel: 36", Length: 36 inch, Closing Type: Manual, Extension: Full, Load Rating: 500 lbs, See more product details
Qty:       Pair
  or
PRO Packs ™
Save more! Buy a Pro Pack.



Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Travel : 36"
  • Length : 36 inch

  • Manufacturer Info

  • Manufacturer : Knape and Vogt
  • Manufacturer Series Name : 8900
  • Manufacturer Part # : 8900P 36

  • Other Important Info

  • Closing Type : Manual
  • Extension : Full
  • Key Features : Heavy duty ball bearings
    Heavy duty stops
    Non-handed design
    Non-disconnect
  • Load Rating : 500 lbs
  • Notes : Load rating can change depending upon application
    Warning: This slide must never be used as a pull-out step or any other application supporting human weight as injury may result.
  • Product Finish : Zinc
  • Product Type : Drawer Slide: Full Extension
  • Includes : (1) pair of drawer slides
  • Extension / Motion Feature : Full Extension / Standard

  • Manufacturer Resources

Back to Top
back to top

Our customers say Knape and Vogt products...

  4.5 out of 5
based on 659 ratings

"These reviews are from our customers who have purchased Knape and Vogt products."
  • 5 of 5 Perfect July 6th, 2010
    by David R from Clarksburg, MA

    work great for turning a 3 foot deep closet into a more pracitial closet, especially when needed to know what is behind all the stuff in front, client loves it

    Was this review helpful? yes no

  • 3 of 3 people found the following review helpful
    4 of 5 That's good stuff December 30th, 2010
    by Matthew from North Salt Lake, UT

    Product was high quality, heavy-duty. I wish it had been clearer what the unit of sale was, though--we bought two and got two pair.

    This review is about a different size/color of this item. (KV-890012)

    Was this review helpful? yes no

  • 1 of 1 people found the following review helpful
    4 of 5 Opinion of a novice February 11th, 2015
    by Marvin from Polson, MT

    I think this product is heavy duty and well built. Unfortunately on my part, I neglected to note the thickness of the item, and it is too wide for a retro application on a cabinet that is over 20=+ years old. Now I may be out over $120 for my employer.

    This review is about a different size/color of this item. (KV-890020)

    Was this review helpful? yes no

  • 4 of 5 Heavy duty slide March 7th, 2024
    by Ed from Crivitz, WI

    Very good heavy duty slide. For this project I wanted to install it as an under mount. Seems to work well but it is a 40" slide mounted under the drawer so it does have a little flex when fully extended. It's not more than I expected and am happy with the quality. I'm sure if I had room to mount them vertical there would be no flex. I would recommend this KV slide

    This review is about a different size/color of this item. (KV-890040)

    Was this review helpful? yes no

  • 5 of 5 Good Product May 12th, 2014
    by R from Lake Forest, IL

    Very well made and strong. Works well

    This review is about a different size/color of this item. (KV-890026)

    Was this review helpful? yes no

See More Reviews
