48 Inch Length SLAL-250-BP Series Bypass Sliding Door Track w/Hardware, Aluminum
Rating 4.8 | 14 Reviews | Our Item Number NGP-SLAL-250BP2DR48
ANSI/BHMA CERTIFIED. Certified Sliding Door Hardware complies with American National Standard for Sliding and Folding Door Hardware ANSI/BHMA A156.14 Grade 1 100,000 cycles and is listed in the BHMA Certified Product Directory.
$
57.15 Set
$98.73
SAVE 42%
Ends Jun 21
Ends Jun 21
Length:
Product Info Length: 48 Inch, Width: 1-13/16 Inch, Height: 1-7/16 inch, Doore Type: Bypass, Series: SLAL-250-BP, See more product details
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Length : 48 Inch
- Width : 1-13/16 Inch
- Height : 1-7/16 inch
- Key Features : Commercial Grade for 1-3/8" To 1-3/4" Doors
Max Weight Load 250 lbs
ANSI/BHMA A156.14 Grade 1 Certified to 100,000 Cycles Including Soft Close Feature
Hangers with Heavy Duty Ball Bearing Wheels - Product Class : Residential & Commercial
-
Manufacturer Info
- Manufacturer : National Guard Products
- Manufacturer Part # : SLAL-250-BP-2DR-48
- Manufacturer Finish : Aluminum
-
Other Important Info
- Product Type : Aluminum By-Pass, Top Mount Track System

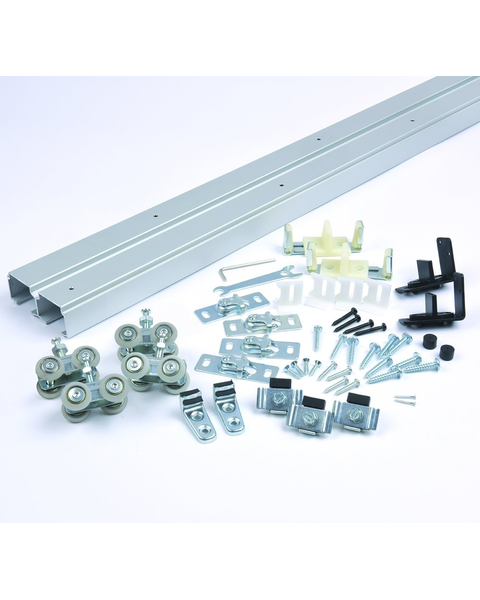

- Includes : Complete Kits Include: (1) Track - Clear Anodized, (2) Universal Hardware Packs. Each Consist Of: (2) Ball Bearing Heavy Duty Hangers, (2) Snap-In Door Brackets, (2) In-Track Stops, (1) Angle Stop, (1) Bumper Stop, (1) Door Guide, Heavy Duty Floor Guides
- Doore Type : Bypass
- Series : SLAL-250-BP
- Product Finish : Aluminum
- Country of Orgin : USA
- Warranty : 5-Year Warranty
- Door Sizing : For Door Sizing Refer to Installation Instruction
- Screw Type : *Screws: #8 x 1/2" panhead fasteners & #8 x 1" screws
Manufacturer Resources
Optional Accessories
Sliding Door Soft-Close/Open Single Direction for SLAL-PD / BP Sliding Door Series
Universal Hardware Pack for SLAL-PD/BP Sliding Door, Polybag Other - Bypass Sliding Door Hardware
-
48 Inch Length SLAL-250-BP Series Bypass Sliding Door Track w/Hardware, Aluminum
60 Inch Length SLAL-250-BP Series Bypass Sliding Door Track w/Hardware, Aluminum
72 Inch Length SLAL-250-BP Series Bypass Sliding Door Track w/Hardware, Aluminum
2165 Track Stop for 1166, 1138, 2200, 2200F, 2204, 2222, 2800, and 2800F Series Track ![2216 1/16" Offset Hanger with Screws for 1138/2200 Series Sliding Door, 50 Lbs, Zinc/White](https://cdn-media.cabinetparts.com/primary_product.jpg?id=145649&p=sq-sm "2216 1/16" Offset Hanger with Screws for 1138/2200 Series Sliding Door, 50 Lbs, Zinc/White")
2216 1/16" Offset Hanger with Screws for 1138/2200 Series Sliding Door, 50 Lbs, Zinc/White ![2200 60" Length Bypass Aluminum Track for 3/4" or 1-3/8" Door 2200S](https://cdn-media.cabinetparts.com/primary_product.jpg?id=145706&p=sq-sm "2200 60" Length Bypass Aluminum Track for 3/4" or 1-3/8" Door 2200S")
2200 60" Length Bypass Aluminum Track for 3/4" or 1-3/8" Door 2200S ![2200 Series 60" Length Bypass Mill Aluminum Track and Goldtone Hardware Set for 3/4" or 1-3/8" Door Thickness, 75 Lb Capacity](https://cdn-media.cabinetparts.com/primary_product.jpg?id=145709&p=sq-sm "2200 Series 60" Length Bypass Mill Aluminum Track and Goldtone Hardware Set for 3/4" or 1-3/8" Door Thickness, 75 Lb Capacity")
2200 Series 60" Length Bypass Mill Aluminum Track and Goldtone Hardware Set for 3/4" or 1-3/8" Door Thickness, 75 Lb Capacity ![2200 72" Length Bypass Mill Aluminum Track for 3/4" or 1-3/8" Door 2200S](https://cdn-media.cabinetparts.com/primary_product.jpg?id=145712&p=sq-sm "2200 72" Length Bypass Mill Aluminum Track for 3/4" or 1-3/8" Door 2200S")
2200 72" Length Bypass Mill Aluminum Track for 3/4" or 1-3/8" Door 2200S ![2200 Series 72" Length Bypass Mill Aluminum Track and Goldtone Hardware Set for 3/4" or 1-3/8" Door Thickness, 75 Lb Capacity](https://cdn-media.cabinetparts.com/primary_product.jpg?id=145715&p=sq-sm "2200 Series 72" Length Bypass Mill Aluminum Track and Goldtone Hardware Set for 3/4" or 1-3/8" Door Thickness, 75 Lb Capacity")
2200 Series 72" Length Bypass Mill Aluminum Track and Goldtone Hardware Set for 3/4" or 1-3/8" Door Thickness, 75 Lb Capacity ![2238 3/8" Offset (3/4" Door Thickness) Hanger with Screws for 1138/2000/2200F Series Sliding Door Track, 75 Lbs, 2 each per Pack, Zinc/White](https://cdn-media.cabinetparts.com/primary_product.jpg?id=145718&p=sq-sm "2238 3/8" Offset (3/4" Door Thickness) Hanger with Screws for 1138/2000/2200F Series Sliding Door Track, 75 Lbs, 2 each per Pack, Zinc/White")
2238 3/8" Offset (3/4" Door Thickness) Hanger with Screws for 1138/2000/2200F Series Sliding Door Track, 75 Lbs, 2 each per Pack, Zinc/White
