72 Inch Length SLAL-250-BP Series Bypass Sliding Door Track w/Hardware, Aluminum

  Rating 4.8 | 14 Reviews in the past 24 months | Our Item Number NGP-SLAL-250BP2DR72

ANSI/BHMA CERTIFIED. Certified Sliding Door Hardware complies with American National Standard for Sliding and Folding Door Hardware ANSI/BHMA A156.14 Grade 1 100,000 cycles and is listed in the BHMA Certified Product Directory.

$
92.25 Set
$148.10
SAVE 38%
Ends Aug 05

Length:

Product Info Length: 72 Inch, Width: 1-13/16 Inch, Height: 1-7/16 inch, Doore Type: Bypass, Series: SLAL-250-BP, See more product details
Qty:       Set


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Length : 72 Inch
  • Width : 1-13/16 Inch
  • Height : 1-7/16 inch
  • Key Features : Commercial Grade for 1-3/8" To 1-3/4" Doors
    Max Weight Load 250 lbs
    ANSI/BHMA A156.14 Grade 1 Certified to 100,000 Cycles Including Soft Close Feature
    Hangers with Heavy Duty Ball Bearing Wheels
  • Product Class : Residential & Commercial

  • Manufacturer Info

  • Manufacturer : National Guard Products
  • Manufacturer Part # : SLAL-250-BP-2DR-72
  • Manufacturer Finish : Aluminum

  • Other Important Info

  • Product Type : Aluminum By-Pass, Top Mount Track System

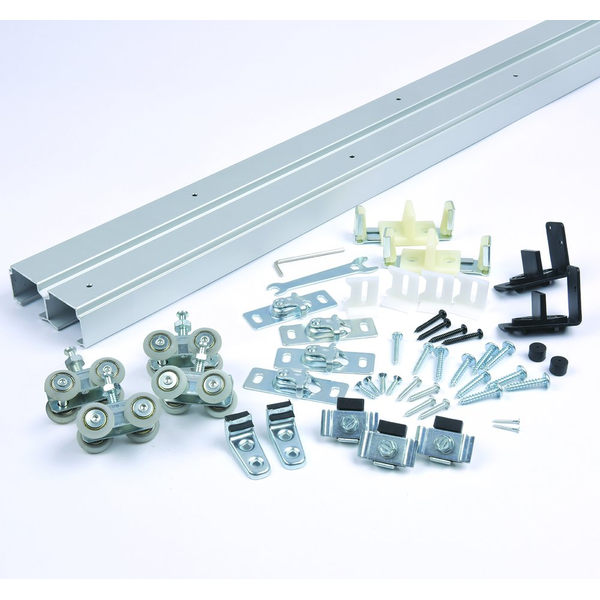

  • Includes : Complete Kits Include: (1) Track - Clear Anodized, (2) Universal Hardware Packs. Each Consist Of: (2) Ball Bearing Heavy Duty Hangers, (2) Snap-In Door Brackets, (2) In-Track Stops, (1) Angle Stop, (1) Bumper Stop, (1) Door Guide, Heavy Duty Floor Guides
  • Doore Type : Bypass
  • Series : SLAL-250-BP
  • Product Finish : Aluminum
  • Country of Orgin : USA
  • Warranty : 5-Year Warranty
  • Door Sizing : For Door Sizing Refer to Installation Instruction
  • Screw Type : *Screws: #8 x 1/2" panhead fasteners & #8 x 1" screws

  • Manufacturer Resources

Back to Top
back to top

Our customers say National Guard Products products...

  4.8 out of 5
based on 14 ratings

"These reviews are from our customers who have purchased National Guard Products products."
  • 5 of 5 great customer service March 13th, 2025
    by Elizabeth from Huntington Beach, CA

    great customer service

    Was this review helpful? yes no

  • 3 of 3 people found the following review helpful
    4 of 5 Good kit at fair price July 15th, 2022
    by Alice from Los Angeles, CA

    The kit included everything I needed to install my sliding doors except for handles and facia. It was the only kit I could find online that was rated for heavier doors and the doors operate smoothly. I was pleased with the rapid shipment.

    Was this review helpful? yes no

  • 1 of 6 people found the following review helpful
    3 of 5 Average, Ordinary April 3rd, 2022
    by Kenneth from HOMESTEAD, FL

    (no comment given)

    Was this review helpful? yes no

  • 5 of 5 Perfect April 18th, 2024
    by Geoff from Queen Creek, AZ

    (no comment given)

    Was this review helpful? yes no

  • 5 of 5 Easy, peasy to hang! September 12th, 2023
    by Lori from Conowingo, MD

    I have an older home and my one pass door kept falling off the track. I found this track on line and love that each door has 8 wheels to hang and slide instead of two. When it arrived, I followed the instructions and placed it myself. I am a 69 year old woman and I had no problems what so ever. Sooo much easier than the 2 wheel kind. Wish I looked for this years ago. After hanging the track, I thought it would be hard to attach the doors but it was so easy - just straight up and into the holder, then push the switch to attached. The doors slide so easy and the 8 wheels do not jump the tracks. Great product!!

    Was this review helpful? yes no
