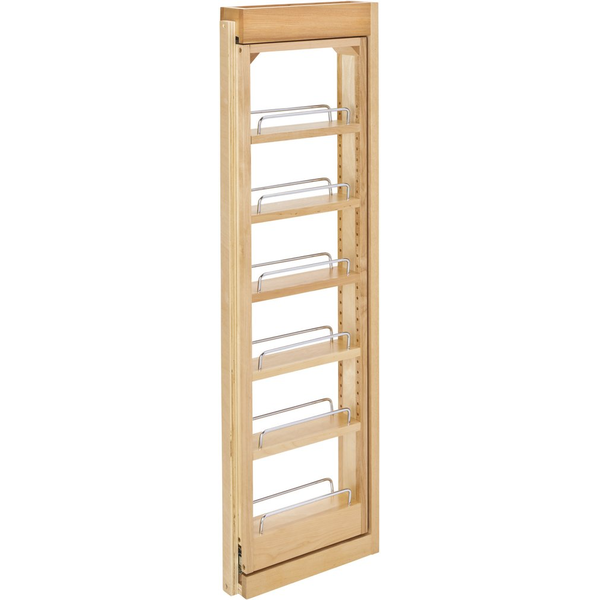

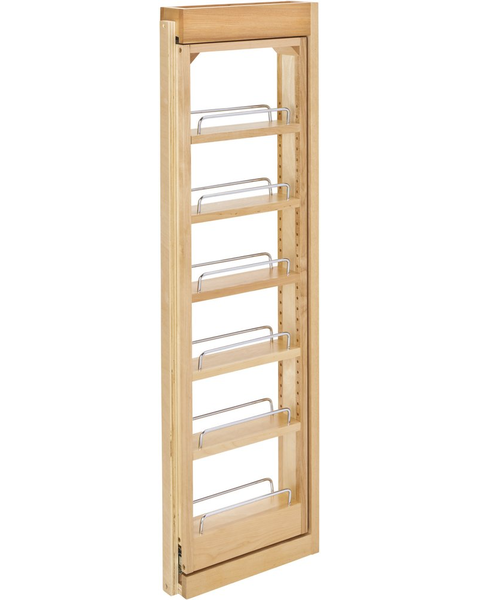

3 Inch Width Wood Kitchen Wall Cabinet Filler Pull-Out Organizer, for 39 Inch Height, Natural, Min. Cabinet Opening: 3-1/8" W x 11-3/8" D x 39-1/8" H
Rev-A-Shelf's fillers revolutionized otherwise wasted space in your kitchen. Normally a "filler" or extra space is simply covered up with a decorative front, but with Rev-A-Shelf's line of fillers, it turns that otherwise wasted space in to useful space. Fillers are intended to be installed in new kitchen cabinet construction and will not work in existing cabinets. The 432 Wall Series is available for 3 and 6 widths and features adjustable shelves with chrome rails and full-extension ball bearing slides.
Ends Aug 23
Use Code REVASHELF2608 Expires 8/31/2026
Product Width:
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Width : 3 Inch
- Depth : 11.13 Inch
- Minimum Opening for a Face Frame Cabinet : 3-1/8" Width x 11-3/8" Depth x 39-1/8" Height
- Height : 39 Inch
- Full Product Dimensions (Millimeters) : 76.2 mm W x 282.702 mm D x 990.6 mm H
-
Manufacturer Info
- Manufacturer : Rev-A-Shelf
- Manufacturer Part # : 432-WF39-3C
-
Other Important Info
- Product Type : Fillers
- Weight : 12.95 lbs
- Full Product Dimensions : 3"W x 11.13"D x 39"H
- Product Series : WO6 - Wall 432
- Color : Natural
- Material : Wood
- Country of Origin : China
- Contains Wood : Yes
- Material Breakdown : Maple Wood; Steel
- Material Breakdown % : 85;15
- Wood Type : Maple
- Category Groupings : Wall Filler w/Ball-Bearing Slides
- Includes : (1) Wood filler, (4) adjustable shelves with Chrome rails and mounting hardware
- Sub-Class : Wall Filler
- Slide Type : 100lb Full-Extension Ball-Bearing slide system
- Ship Type : Small Parcel
- Feature 2 : Note: Fillers can only be installed between two cabinets during new cabinet construction
- Keywords : Kitchen, Cabinet Organization, Fillers, Wall cabinets
- Feature 3 : Adjustable shelves
- All Features : Included: (1) Wood filler, (4) adjustable shelves with Chrome rails and mounting hardware
Slide Type: 100lb Full-Extension Ball-Bearing Slides
Once installed simply attach your matching panel or door
Fillers do not go inside of a cabinet, they install in-between cabinets
Adjustable shelves
Designed for exactly a 3" opening for a 39" tall cabinet space
Door mount brackets: Adjustable door mount brackets are included and required for operation
Construction: Fully Assembled Maple Wood construction with a clear coat finish for durabiltiy
Comes fully-assembled and ready to install
Limited Lifetime Warranty - Fits or Designed for : Designed for 39" High Wall cabinet installation
- Actual Product Width (Inches) : 3
- Included optional Door Mount / Door Extender : Door Mount brackets included
- Actual Product Depth (Inches) : 11.13
- Construction / Finish : Attractive wood construction with durable clear finish and chrome rails accents
- Actual Product Height (Inches) : 39
- Installation : Comes fully-assembled and ready to install
- Actual Product Weight (lbs) : 12.95
- Warranty : Limited Lifetime Warranty
- Minimum Cabinet Frameless Opening (Inches) : 3.15
- Slides : Yes
- Actual Product Width (Millimeters) : 76.2
- Soft Close : No
- Actual Product Depth (Millimeters) : 282.702
- Actual Product Height (Millimeters) : 990.6
- Actual Product Weight (Kilograms) : 5.8275
- Minimum Cabinet Faceframe Opening (Millimeters) : 76.2
- Minimum Cabinet Frameless Opening (Millimeter) : 80.01
- Primary Color : Natural
- Gas Assist : No
- Material Bre : Maple Wood; Steel
