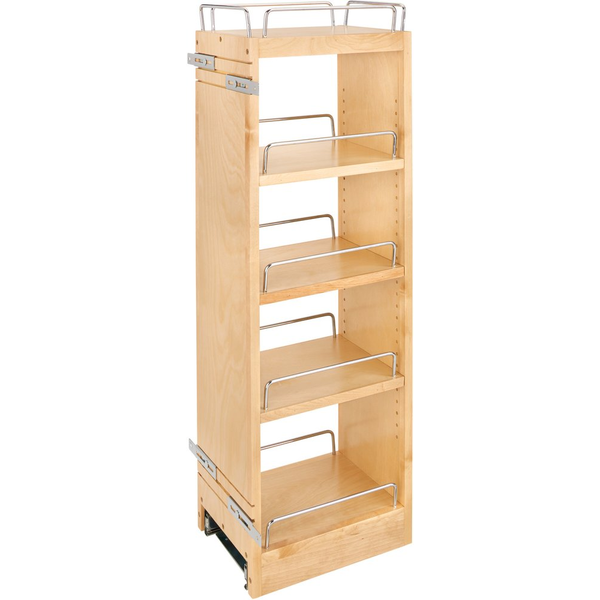

8 Inch Width Pull-Out Organizer with Soft-Close for Face Frame 36" High and 12" Wall Cabinets, Natural, Min. Cabinet Opening: 8" W x 10-7/8" D x 36" H
Do you need that one item in the back of your wall cabinet, and the only way to access it is to pull everything out? Stop the madness with Rev-A-Shelf's pullout shelving system, whose open design ensures you can effortlessly find everything. Available in varying heights and sizes, they door mount giving you a uniquely customized look and easy operation.
Ends Aug 05
Use Code REVASHELF2608 Expires 8/31/2026
Width:
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Width : 8 Inch
- Depth : 10-3/4 Inch
- Height : 32-3/16 Inch
- Dimensions : 8 Inch Width x 10-3/4 Inch Depth x 32-3/16 Inch Height
- Fits/Designed For : Designed for a 36" tall wall cabinet but will work in 39" and 42"
- Full Product Dimensions (Millimeters) : 203.2 mm W x 273.05 mm D x 816.61 mm H
-
Manufacturer Info
- Manufacturer : Rev-A-Shelf
- Manufacturer Part # : 448-BBSCWC36-8C
-
Other Important Info
- Product Type : Wall Organizer w/Ball-Bearing Soft Close Slides
- Key Features : Adjustable shelves
Wood organizer simply fits into existing cabinet
Adjustable rub bushings for a precise fit - Color : Natural
- Material : Wood
- Contains Wood : Yes
- Slides : Yes
- Soft-Close : Yes
- Includes : (1) Wood organizer, (2) adjustable shelves with Chrome rails and mounting hardware
- Slide Type : 100lb Full-Extension Ball-Bearing Slides w/Soft-Close
- Optional or Includes Door Mount / Door Extender : Patented door mount brackets with micro-adjustment (US Patent No. 8,388,076)
- Construction / Finish : Attractive wood construction with durable clear finish and chrome rails accents
- Installation : Comes fully assembled and ready to install
- Warranty : Limited Lifetime Warranty
- Minimum Cabinet Opening for Face Frame : 8" W x 10-7/8" D x 36" H
- Category Groupings : Wall Organizer w/Ball-Bearing SC Slides
- Sub-Class : Wall Cabinet
- Product Series : WO9 - Wall 448
- Ship Type : Small Parcel
- Keywords : Kitchen, Cabinet Organization, Wall Cabinets,
- All Features : Included: (1) Wood organizer, (2) adjustable shelves with Chrome rails and mounting hardware
Slide Type: 100lb Full-Extension Ball-Bearing Slides w/Soft-Close
Adjustable shelves
Wood organizer simply fits into existing cabinet
Adjustable rub bushings for a precise fit
Designed for a 36" tall wall cabinet but will work in 39" and 42"
Door mount brackets: Adjustable door mount brackets are included and required for operation
Construction: Fully Assembled Maple Wood construction with a clear coat finish for durabiltiy
Comes fully assembled and ready to install
Limited Lifetime Warranty - Actual Product Width (Inches) : 8
- Actual Product Depth (Inches) : 10.75
- Actual Product Height (Inches) : 32.15
- Full Product Dimensions : 8"W x 10.75"D x 32.15"H
- Actual Product Weight (lbs) : 15
- Minimum Cabinet Frameless Opening (Inches) : 9
- Actual Product Width (Millimeters) : 203.2
- Actual Product Depth (Millimeters) : 273.05
- Actual Product Height (Millimeters) : 816.61
- Actual Product Weight (Kilograms) : 6.75
- Minimum Cabinet Faceframe Opening (Millimeters) : 215.9
- Minimum Cabinet Frameless Opening (Millimeter) : 228.6
- Primary Color : Natural
- Country of Origin : China
- Number of Tiers : 4
- Soft Close : Yes
- Gas Assist : No
- Material Bre : Maple Wood;
Manufacturer Resources
-
Helpful Videos
-
Product Overview -
Product Features -
Installation Help
Other - Wall Cabinet Organizers by Rev-A-Shelf
Our customers say Rev-A-Shelf products...
based on 63 ratings
- 4 of 5 Measurements were exact July 28th, 2026
by Terry from Fairfield, IAIf you are looking for something that measures up to the advertising and notes about measurements, you will be happy with this product. I had to purchase a very narrow unit for a small pantry and it was exactly the measurements described. I was disappointed that the top three shelves only hold the smallest of cans or bottles, not even a can of beans or soda pop-so that was unexpected. The bottom shelf is the only one with a depth large enough for what I really needed for a total of holding 3 cans. But the fact that it can hold tomato paste and bags of dried fruit is ok. I will say that it takes a lot of proper planning for the shelves to glide between the pantry shelves so plan to take time and make it work. I'm 71 female and found a perfect fit after proper planning and moving one pantry shelf.
This review is about similar Rev-A-Shelf Organizers. (RV-565-10-52)
- 5 of 5 Nice spice rack for a tight space December 15th, 2025
by ROBERT from HONOLULU, HIFilled a dead space over the stove with this neat pull out spice rack
This review is about similar Rev-A-Shelf Organizers. (RV448WC5C)
- 4 of 5 Great design, came damaged March 11th, 2025
by Alan from Saint Paul, MNThe cabinet shipped on time and the design of the spice rack will improve the function of the kitchen. The cabinet, unfortunately, came damaged and without a part. I had fully installed the filler into the primary cabinets and went to install a face when I realized that the inner screws for holding the face had caused damage to one of the drilled holes in the cabinet. Upon further inspection, the damage came from the fact that one of the two face screws had a washer, and one did not, allowing free play to cause the damage.
This review is about similar Rev-A-Shelf Organizers. (RV432WF3C)
- 2 of 5 Measure twice, and have wood glue handy February 23rd, 2025
by martha from Cocoa, FlWell first thing the outside wood is broken, husband had to glue it back in place and clamp them to dry. Second we mis miss measured the cabinet I was going to put it in You need to measure the opening between the frame opening. Not the inside of the cabinet. I was able to use this in another 12 inch cabinet,
This review is about similar Rev-A-Shelf Organizers. (RV448WC8C)
- 7 of 8 people found the following review helpful
4 of 5 Easy to install, solid, could extend a tad further September 9th, 2015
by T from Snowmass Village, CONice product, solid build, easy to install. The extension is a tad short, the back of the extended unit is still partially in the enclosing cabinet (in my case the back of the shelves were about 2" behind the front face of the enclosing cabinet. The exact distance will vary depending upon enclosing cabinet type. It is worse for cabinet doors the front faces of which are flush with the cabinet frame (that is the cabinet door is recessed into the door opening), vs cabinet doors that are in front of the cabinet frame (not recessed). For doors that are recessed, the slide out unit has to be further recessed by the thickness of the door. I had recessed 3/4 inch doors, with what are called Euro style hinges (hidden hinges). The picture is misleading as it shows the unit fully extended with the back inside surface of the unit being flush with the front surface of the cabinet door of an adjoining cabinet. It cannot actually do this. Still its a nearly full extension, better than a common 3/4 extension.
This review is about similar Rev-A-Shelf Organizers. (RV448WC8C)
