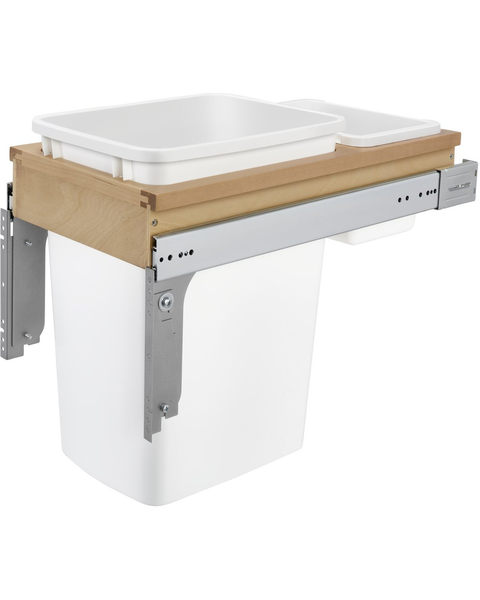

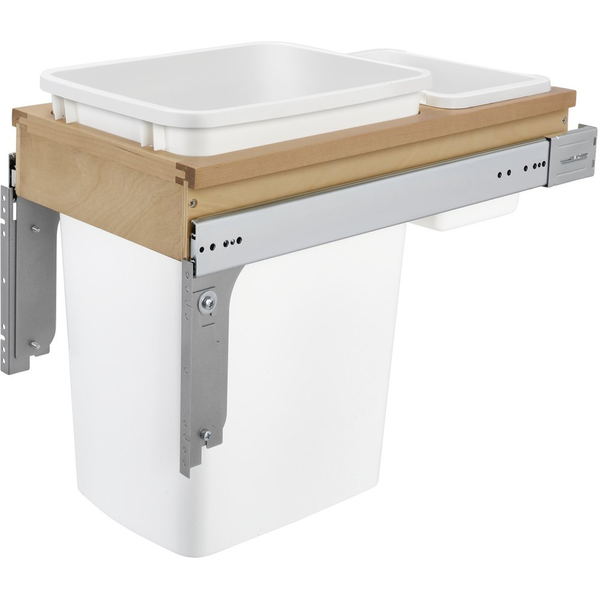

35 Quart Wood Top Mount Single Trash Pull-Out Waste Container for 1-5/8" Frame Cabinet, Cabinet Opening Width: 11-3/4", Natural
Rev-A-Shelf's top-mount wood waste containers are industry favorites. These waste containers are designed for absolute sturdiness with front and rear mounting, pre-installed door mount brackets and full-extension 150 lb. rated ball-bearing slides for total stability.
Use Code REVASHELF2606 Expires 6/30/2026
Number of Containers:
Waste Container Capacity:
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- All Features : Included: (1) White 35 quart container, (1) rear polymer bin, wood frame for 1-5/8" face frame cabinet and mounting hardware
Slide Type: 150lb Full-Extension Ball-Bearing Slides
Adjustable depth from 22-3/4" to 24-1/2"
Note: Top-Mount Waste containers come in many different widths as they are specific to a cabinet opening to function properly
Intended for cabinet opening exactly 11-3/4"
Door mount brackets: Adjustable door mount brackets are included and required for operation
Optional Rev-A-Shelf lids available, sold separately
Construction: Fully Assembled Maple Wood construction with a clear coat finish for durabiltiy
Limited Lifetime Warranty - Cabinet Opening Width : 11-3/4 Inch
- Full Product Dimensions (Millimeters) : 298.45 mm W x 577.85 mm D x 454.152 mm H
- Minimum Opening for a Face Frame Cabinet : 11-3/4" Width x 22-1/2" Depth x 18" Height
- Minimum Opening for a Frameless Cabinet : 11-7/8" Width x 23" Depth x 18" Height
- Minimum Opening for a Frameless Inset Cabinet : Add 3/4 inch to depth of the "Minimum Opening for a Frameless Cabinet"
- Waste Container Capacity : 35 Quart (11-3/4" W x 22-3/4" D x 17-7/8 H")
- Min. Cabinet Opening Width : 11-3/4 Inch
- Width : 11.75 Inch
- Depth : 22.75 Inch
- Height : 17.875 Inch
- Feature 3 : Note: Top-Mount Waste containers come in many different widths as they are specific to a cabinet opening to function properly
- Fits or Designed for : Intended for cabinet opening exactly 11-3/4"
-
Manufacturer Info
- Manufacturer : Rev-A-Shelf
- Manufacturer Part # : 4WCTM-12DM1-162
-
Other Important Info
- Construction / Finish : Absolute sturdiness with front-side mounting and rear adjustable brackets
- Sub-Class : Base Cabinet
- Warranty : Limited Lifetime Warranty
- Ship Type : Small Parcel
- Number of Containers : 1
- Keywords : Kitchen, Cabinet Organization, Trash, Waste Containers,
- Slides : Ball Bearing
- Soft Close : No
- Actual Product Width (Inches) : 11.75
- Gas Assist : No
- Actual Product Depth (Inches) : 22.75
- Actual Product Height (Inches) : 17.88
- Actual Product Weight (lbs) : 14.25
- Actual Product Width (Millimeters) : 298.45
- Actual Product Depth (Millimeters) : 577.85
- Actual Product Height (Millimeters) : 454.152
- Actual Product Weight (Kilograms) : 6.4125
- Primary Color : Natural
- Product Type : Waste Containers
- Weight : 14.24 lbs
- Full Product Dimensions : 11.75"W x 22.75"D x 17.88"H
- Product Series : W12 - WOOD TM
- Color : Natural
- Material : Wood
- Country of Origin : China
- Contains Wood : Yes
- Material Breakdown : Maple Wood;Steel;Plastic
- Material Breakdown % : 60;20;20
- Wood Type : Maple
- Includes : (1) White 35 quart container with Wood frame for 1-5/8" face frame cabinet and mounting hardware
- Slide Type : 150lb Full-Extension slide system with over travel
- Included optional Door Mount / Door Extender : Includes patented door mount kit included to fit almost any door style (US Patent # 6,390,576)
- Optional Accessories : Optional Rev-A-Shelf lids available, sold separately
- Category Groupings : Top-Mount Waste Container 1-5/8" FF
