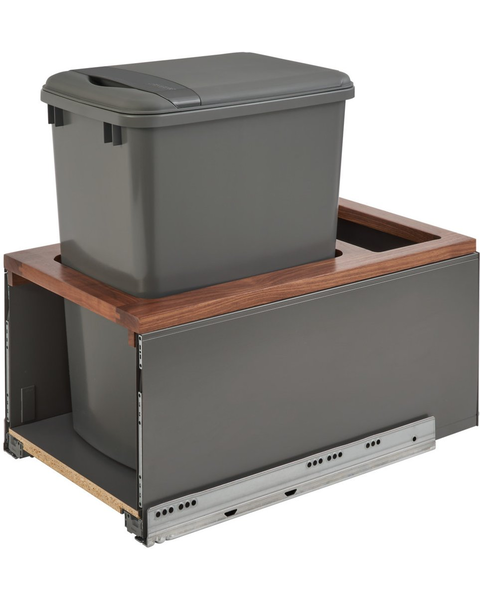

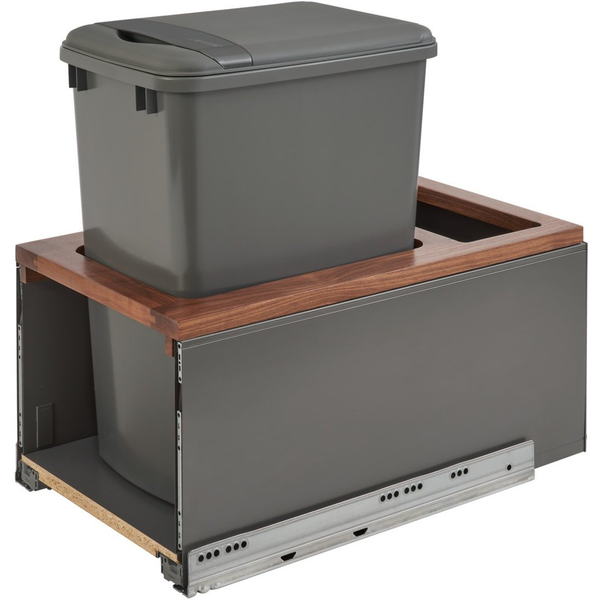

35 Quart Bottom Mount Single Trash Pull-Out Waste Container with Walnut Insert, Metal Blum Legrabox and Blumotion Soft-Close Slides, Min. Cabinet Opening: 13-1/2" Wide, Gray
Rating 4.7 | 263 Reviews | Our Item Number RV5LB1535OGWN113
LEGRABOX has arrived in style! Our single and double waste containers come fully assembled in a LEGRABOX frame with a wooden insert that holds the waste bin(s) securely. Designed for full access (frameless) 15 and 18 base cabinets with 3/4 side panels, the 5LB Series features BLUMOTION full-extension, soft-close, side mount slides, easy door mounting with three-dimensional height, side, and tilt adjustments and are available in 35 and 50 qt. configurations.
$
490
$708.99
SAVE 31%
Ends Sep 19
Ends Sep 19
Free Shipping on Rev-A-Shelf - Orders $99+
Use Code REVASHELF2609 Expires 9/30/2026
Use Code REVASHELF2609 Expires 9/30/2026
Finish: Orion Gray/Walnut
Capacity:
Need Help? Contact Us Now
Product Info Width: 13.5 Inch, Depth: 21.75 Inch, Height: 19.5 Inch, Bin Color: Gray, Bin Material: Polymer, See more product details
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Minimum Face Frame Cabinet Opening Height : 20"
- Minimum Face Frame Cabinet Opening Width : 13-1/2"
- Minimum Face Frame Cabinet Opening Depth : 22"
- Width : 13.5 Inch
- Depth : 21.75 Inch
- Height : 19.5 Inch
- Slide Type : 135lb Full-Extension Blummotion slide system
- Features : BLUMOTION full extension soft-close slides
Fully assembled-just add your door front
Easy to clean wooden insert holds the waste bins
3 dimensional height, side & tilt door mounting adjustments
Includes matching lid
Can be used with TIP-ON or SERVO-DRIVE systems (sold separately)
Carb II compliant - Minimum Opening for a Face Frame Cabinet : 13-1/2" Width x 22" Depth x 20-5/8" Height
- Minimum Opening for a Frameless Cabinet : 13-1/2" Width x 22" Depth x 20-5/8" Height
- Full Product Dimensions (Millimeters) : 342.9 mm W x 551.942 mm D x 516.382 mm H
- Minimum Opening for a Inset Face Frame Cabinet : 13-1/2" Width x 22-3/4" Depth x 20-5/8" Height
- Minimum Opening for a Frameless Inset Cabinet : Add 3/4 inch to depth of the "Minimum Opening for a Frameless Cabinet"
-
Manufacturer Info
- Manufacturer : Rev-A-Shelf
- Manufacturer Part # : 5LB-1535OGWN-113
- Manufacturer Finish : Orion Gray/Walnut
-
Other Important Info
- Product Type : Waste Containers
- Product Finish : Gray/Walnut
- Waste Container Capacity : 35 Quart
- Bin Color : Gray
- Bin Material : Polymer
- Number of Bins : 1
- Bin Lid Included : Yes
- Door Mount Hardware Included : Yes
- Weight Capacity : 135 lbs
- Includes : (1) Frame, (1) 35 qrt Waste Container, door mount kit, (1) lid, (1) Slide set
- Weight : 24 lbs
- Full Product Dimensions : 13.5"W x 21.73"D x 20.33"H
- Product Series : W18 - 5LB Legra
- Color : Gray
- Material : Steel
- Country of Origin : Austria
- Contains Wood : Yes
- Material Breakdown : Wood;Steel;Plastic
- Material Breakdown % : 50;30;20
- Category Groupings : 35 Qrt LegraBox Waste Container w/Blum SC
- Wood Type : MDF
- Sub-Class : Base Cabinet
- Feature 1 : Features Walnut access piece
- Ship Type : Small Parcel
- Feature 3 : Fully assembled just attach your own door
- Keywords : Kitchen, Cabinet Organization, Trash, Waste Containers, BLUM
- Fits or Designed for : Designed for 13-1/2" or greater opening
- All Features : Included: (1) Frame, (1) 35 qrt Waste Container, door mount kit, (1) lid, (1) Slide set
Slide Type: 135lb Full-Extension BLUMOTION Slides w/Soft-Close
Features Walnut access piece
Can be used with TIP-ON and SERVO-DRIVE (sold seperately)
Fully assembled just attach your own door
Designed for 13-1/2" or greater opening
Door mount brackets: Adjustable door mount brackets are included and required for operation
Tip on kit available - 5LB-TOKIT-12 (sold seperately)
Construction: Heavy-Duty Metal frame
Limited Lifetime Warranty - Optional Accessories : Tip on kit available - 5LB-TOKIT-12 (sold seperately)
- Actual Product Width (Inches) : 13.5
- Construction / Finish : Solid Orion Gray Frame with walnut accent piece
- Actual Product Depth (Inches) : 21.73
- Warranty : Limited Lifetime Warranty
- Actual Product Height (Inches) : 20.33
- Slides : Yes
- Actual Product Weight (lbs) : 24
- Minimum Cabinet Frameless Opening (Inches) : 13.5
- Actual Product Width (Millimeters) : 342.9
- Actual Product Depth (Millimeters) : 551.942
- Actual Product Height (Millimeters) : 516.382
- Actual Product Weight (Kilograms) : 10.8
- Minimum Cabinet Faceframe Opening (Millimeters) : 342.9
- Minimum Cabinet Frameless Opening (Millimeter) : 342.9
- Primary Color : Gray
- Soft Close : Yes
- Gas Assist : No
Manufacturer Resources
-
