Organizers Kitchen Organizers Pull Out Trash Cans Double Pull-Out Trash Containers 5LB Legrabox Double Pullout Waste Containers by Rev-A-Shelf
Loading from Primary Photo

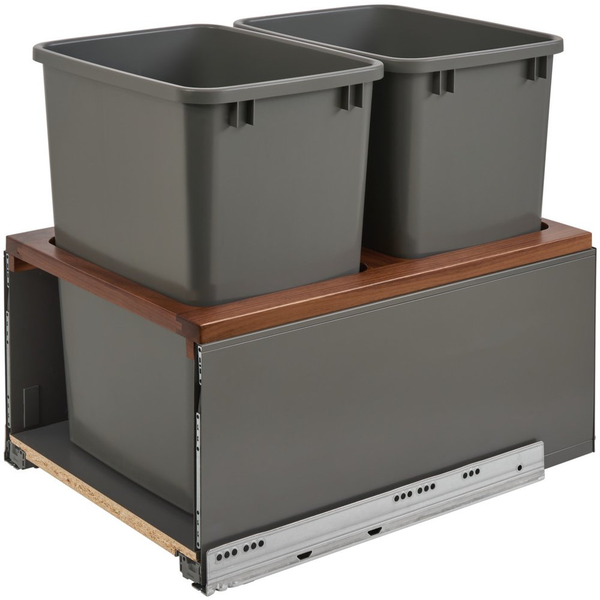

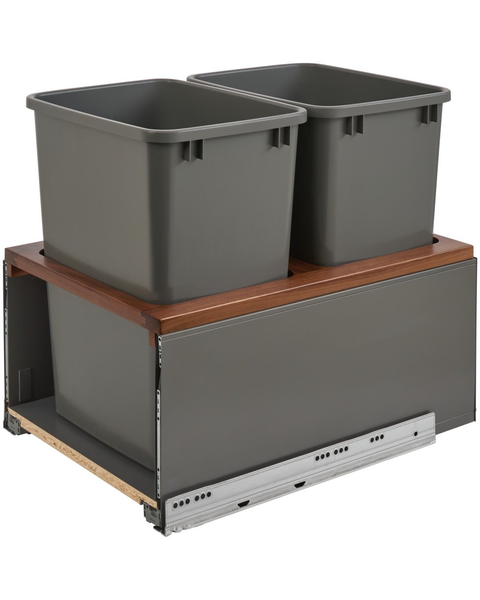

35 Quart Bottom Mount Double Trash Pull-Out Waste Container with Walnut Insert, Metal Blum Legrabox and Blumotion Soft-Close Slides, Min. Cabinet Opening: 16-1/2" Wide, Gray

  Rating 4.7 | 395 Reviews in the past 24 months | Our Item Number RV5LB1835OGWN213

LEGRABOX has arrived in style! Our single and double waste containers come fully assembled in a LEGRABOX frame with a wooden insert that holds the waste bin(s) securely. Designed for full access (frameless) 15 and 18 base cabinets with 3/4 side panels, the 5LB Series features BLUMOTION full-extension, soft-close, side mount slides, easy door mounting with three-dimensional height, side, and tilt adjustments and are available in 35 and 50 qt. configurations.

$
460.70
$663.99
SAVE 31%
Ends Nov 21
Free Shipping on Rev-A-Shelf - Orders $99+
Use Code REVASHELF2611 Expires 11/30/2026

Finish: Gray/Walnut
Gray/Maple Gray/Walnut Stainless Steel/Black

Capacity:

Need Help? Contact Us Now
Product Info Width: 16.5 Inch, Depth: 21.75 Inch, Height: 19.5 Inch, Weight: 27 lbs, Material: Steel, See more product details
Qty:


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Minimum Face Frame Cabinet Opening Height : 20"
  • Minimum Face Frame Cabinet Opening Width : 13-1/2"
  • Feature 2 : Requires a full height cabinet (no drawer above door)
  • Minimum Face Frame Cabinet Opening Depth : 22"
  • Width : 16.5 Inch
  • Depth : 21.75 Inch
  • Height : 19.5 Inch
  • Slide Type : 135lb Full-Extension Blummotion slide system
  • Features : BLUMOTION full extension soft-close slides
    Fully assembled-just add your door front
    Easy to clean wooden insert holds the waste bins
    3 dimensional height, side & tilt door mounting adjustments
    Includes matching lid
    Can be used with TIP-ON or SERVO-DRIVE systems (sold separately)
    Carb II compliant
  • All Features : Included: (1) Frame, (2) 35 qrt Waste Container, door mount kit, (1) lid, (1) Slide set
    Slide Type: 135lb Full-Extension BLUMOTION Slides w/Soft-Close
    Features Walnut accent piece
    Can be used with TIP-ON and SERVO-DRIVE (sold seperately)
    Requires a full height cabinet (no drawer above door)
    Fully assembled just attach your own door
    Designed for 16-1/2" or greater opening
    Door mount brackets: Adjustable door mount brackets are included and required for operation
    Tip on kit available - 5LB-TOKIT-18 (sold seperately)
    Construction: Heavy-Duty Metal frame
    Limited Lifetime Warranty
  • Full Product Dimensions (Millimeters) : 419.1 mm W x 551.942 mm D x 516.382 mm H
  • Minimum Opening for a Face Frame Cabinet : 16-1/2" Width x 22" Depth x 20-5/8" Height
  • Minimum Opening for a Frameless Cabinet : 16-1/2" Width x 22" Depth x 20-5/8" Height
  • Minimum Opening for a Inset Face Frame Cabinet : 16-1/2" Width x 22-3/4" Depth x 20-5/8" Height
  • Minimum Opening for a Frameless Inset Cabinet : Add 3/4 inch to depth of the "Minimum Opening for a Frameless Cabinet"

  • Manufacturer Info

  • Manufacturer : Rev-A-Shelf
  • Manufacturer Part # : 5LB-1835OGWN-213
  • Manufacturer Finish : Orion Gray/Walnut

  • Other Important Info

  • Weight : 27 lbs
  • Full Product Dimensions : 16.5"W x 21.73"D x 20.33"H
  • Product Series : W18 - 5LB Legra
  • Product Finish : Gray/Walnut
  • Product Type : Waste Containers
  • Material : Steel
  • Country of Origin : Austria
  • Waste Container Capacity : 35 Quart
  • Contains Wood : Yes
  • Material Breakdown : Wood;Steel;Plastic
  • Material Breakdown % : 50;30;20
  • Wood Type : MDF
  • Feature 1 : Features Walnut access piece
  • Feature 3 : Fully assembled just attach your own door
  • Bin Color : Gray
  • Fits or Designed for : Designed for 16-1/2" or greater opening
  • Bin Material : Polymer
  • Optional Accessories : Tip on kit available - 5LB-TOKIT-18 (sold seperately)
  • Construction / Finish : Solid Orion Gray Frame with walnut accent piece
  • Warranty : Limited Lifetime Warranty
  • Slides : Yes
  • Number of Bins : 2
  • Bin Lid Included : Yes
  • Door Mount Hardware Included : Yes
  • Weight Capacity : 135 lbs
  • Category Groupings : Dbl 35 Qrt LegraBox Waste Container w/Blum SC
  • Sub-Class : Base Cabinet
  • Includes : (1) Frame, (2) 35 qrt Waste Container, door mount kit, (1) lid, (1) Slide set
  • Ship Type : Small Parcel
  • Keywords : Kitchen, Cabinet Organization, Trash, Waste Containers, BLUM
  • Actual Product Width (Inches) : 16.5
  • Actual Product Depth (Inches) : 21.73
  • Actual Product Height (Inches) : 20.33
  • Actual Product Weight (lbs) : 27
  • Minimum Cabinet Frameless Opening (Inches) : 16.5
  • Actual Product Width (Millimeters) : 419.1
  • Actual Product Depth (Millimeters) : 551.942
  • Actual Product Height (Millimeters) : 516.382
  • Actual Product Weight (Kilograms) : 12.15
  • Minimum Cabinet Faceframe Opening (Millimeters) : 419.1
  • Minimum Cabinet Frameless Opening (Millimeter) : 419.1
  • Primary Color : Gray
  • Soft Close : Yes
  • Gas Assist : No
  • Material Bre : Wood; Steel;

  • Manufacturer Resources
